| Product SKU | P7-TOWER |
|---|---|
| Form Factor | Tower (39L) or 4U rack, optional rack rail kit needed |
| Processor | Up to one 350W Intel Xeon® W-3400 Series processor, supports up to 60 cores; up to 4.8GHz |
| Chipset | Intel® W790 chipset |
| Graphics | Supports up to three NVIDIA® RTX 6000 Ada Generation |
| Memory | Up to 1TB (8x 128GB RDIMM) |
| Storage | Up to eleven drives (3x 3.5" SATA HDD + 8x M.2 SSD) or 9 drives (9x M.2 SSD) |
| Bays | Three internal disk bays plus one front access M.2 bay; Bay 1 supports one 3.5" HDD, standard, optional support for M.2 SSD; Bay 2 supports one 3.5" HDD, standard, optional support for M.2 SSD; Bay 3 supports one 3.5" HDD, optional; Front access M.2 bay supports one M.2 SSD, optional |
| M.2 Slots | Up to 9x M.2 SSD; 3 via onboard slots, 3rd M.2 slot is vertical and optional holder is needed; 4 via Quad M.2 to PCIe® Gen 4 (4x M.2 PCIe® 4.0 x4) adapter or Quad M.2 to PCIe® Gen 3 (4x M.2 PCIe® 3.0 x4) adapter; 2 via HDD bay or 1 via front access M.2 bay (choose one) |
| Expansion Slots | Supports 7 PCIe® slots with 4x PCIe® 5.0 slots and 3x PCIe® 4.0 slots |
| Ports | 1x headphone / microphone combo jack (3.5mm); 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2); 2x USB-A (Hi-Speed USB / USB 2.0); 3x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x Ethernet (10GbE RJ-45); 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Networking | Two Ethernet, GbE + 10GbE, Intel® Ethernet Connection I219-LM and Marvell AQtion AQC-113C, 2x RJ-45, supports Wake-on-LAN |
| Wireless | Intel® Wi-Fi® 6E AX210, 802.11ax 2×2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support |
| Power Supply | 1000W / 1400W power supply (80 PLUS Platinum) |
| Operating System | Windows® 11 Pro for Workstations; Windows® 11 DG Windows® 10 Pro 64 for Workstations; Red Hat Enterprise Linux 9.2; No preload operating system |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| System Management | (Optional) Aspeed AST2600 graphics / management processor, IPMI 2.0-compliant baseboard management controller (BMC); Intel® vPro® Enterprise with Intel® AMT 16 |
| Dimensions | 175 x 508 x 434.4 mm (6.9 x 20 x 17.1 inches, with feet) |
| Weight | 24.5 kg (54 lbs, maximum configuration) |
| Operating Environment | Operating: 10°C (50°F) to 35°C (95°F) |
| Certifications | (Optional) ENERGY STAR® 8.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; (Optional) TCO Certified 9.0; RoHS compliant |
| Warranty | 1-year limited onsite service; 2-year limited onsite service; 3-year limited onsite service; No base warranty |
| Brand | Lenovo |
| Product Line | Lenovo ThinkStation |
Workstations

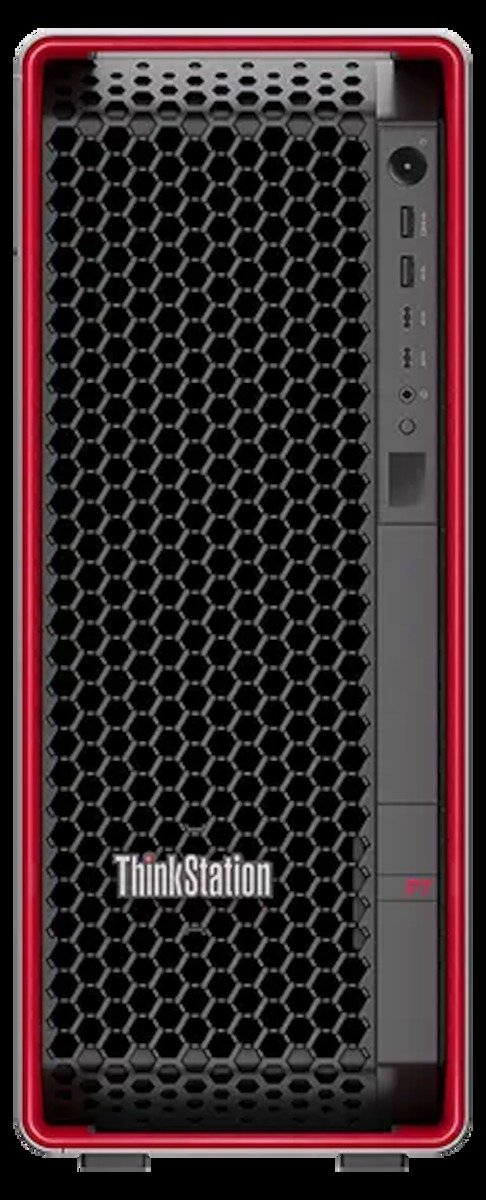

Lenovo ThinkStation P7 (Intel) Tower Workstation
The Lenovo ThinkStation P7 (Intel) Tower Workstation is a tower (39L) or 4U rack workstation powered by up to one 350W Intel Xeon® W-3400 Series processor, supports up to 60 cores, with up to three NVIDIA® RTX 6000 Ada Generation.
Overview
The Lenovo ThinkStation P7 (Intel) Tower Workstation is a rack-optimised tower workstation from Lenovo. Staggering Single-Socket Tower of Power. It provides Intel Xeon W-Series processor and optional 3x discrete graphics.
Key Features
- Form Factor: Tower (39L) or 4U rack, optional rack rail kit needed
- Processor: Up to one 350W Intel Xeon® W-3400 Series processor, supports up to 60 cores; up to 4.8GHz
- Graphics: Supports up to three NVIDIA® RTX 6000 Ada Generation; Supports up to three NVIDIA® RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W); or up to one NVIDIA® RTX PRO 6000 Blackwell Workstation Edition (600W)
- Memory: Up to 1TB (8x 128GB RDIMM); DDR5-4800 3DS-RDIMM ECC; 128GB DIMM is available; maximum transfer speeds of up to 4800 MT/s; DDR5-4800 RDIMM ECC; 16GB / 32GB / 64GB DIMMs are available; maximum transfer speeds of up to 4800 MT/s
- Storage: Up to eleven drives (3x 3.5″ SATA HDD + 8x M.2 SSD) or 9 drives (9x M.2 SSD)
- Expansion Slots: Supports 7 PCIe® slots with 4x PCIe® 5.0 slots and 3x PCIe® 4.0 slots
- Networking: Two Ethernet, GbE + 10GbE, Intel® Ethernet Connection I219-LM and Marvell AQtion AQC-113C, 2x RJ-45, supports Wake-on-LAN
- Power Supply: 1000W / 1400W power supply (80 PLUS Platinum)
- Operating System: Windows® 11 Pro for Workstations; Windows® 11 DG Windows® 10 Pro 64 for Workstations; Red Hat Enterprise Linux 9.2; No preload operating system
- Certifications: (Optional) ENERGY STAR® 8.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; (Optional) TCO Certified 9.0; RoHS compliant
Applications
- CAD, BIM and 3D modelling
- AI model development and inference at the desk
- Media, video and content creation
- Engineering simulation and data science
Configuration, availability and lead time depend on the required quantity, options and delivery destination. Send your requirement to receive a quotation.
