| Product SKU | RTX-5090-32GB |
|---|---|
| NVIDIA CUDA® Cores | 21760 |
| Shader Cores | Blackwell |
| Tensor Cores (AI) | 5th Generation 3352 AI TOPS |
| Ray Tracing Cores | 4th Generation 318 TFLOPS |
| Boost Clock (GHz) | 2.41 |
| Base Clock (GHz) | 2.01 |
| Standard Memory Config | 32 GB GDDR7 |
| Memory Interface Width | 512-bit |
| NVIDIA Architecture | Blackwell |
| Ray Tracing | Yes |
| NVIDIA DLSS | DLSS 4 Super Resolution DLAA Ray Reconstruction Frame Generation Multi Frame Generation |
| NVIDIA Reflex | Reflex 2 Low Latency Mode Frame Warp (Coming Soon) |
| NVIDIA Broadcast | Yes |
| PCI Express Gen 5 | Yes |
| Resizable BAR | Yes |
| NVIDIA App | Yes |
| Photo Mode | Yes |
| NVIDIA FreeStyle | Yes |
| NVIDIA ShadowPlay | Yes |
| NVIDIA Highlights | Yes |
| NVIDIA G-SYNC® | Yes |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA Omniverse | Yes |
| RTX Remix | Yes |
| Microsoft DirectX® 12 Ultimate | Yes |
| NVIDIA GPU Boost™ | Yes |
| NVIDIA NVLink™ (SLI-Ready) | No |
| Vulkan 1.4, OpenGL 4.6 | Yes |
| NVIDIA Encoder (NVENC) | 3x Ninth Generation |
| NVIDIA Decoder (NVDEC) | 2x Sixth Generation |
| AV1 Encode | Yes |
| AV1 Decode | Yes |
| CUDA Capability | 12.0 |
| VR Ready | Yes |
| Maximum Digital Resolution (1) | 4K at 480Hz or 8K at 165Hz with DSC |
| Standard Display Connectors | 3x DisplayPort (2) , 1x HDMI (3) |
| Multi Monitor | up to 4 (4) |
| HDCP | 2.3 |
| Length | 304 mm |
| Width | 137 mm |
| Slot | 2-Slot |
| SFF-Ready Enthusiast GeForce Card | Founders Edition Yes Varies by manufacturer |
| Maximum GPU Temperature (in C) | 90 |
| Total Graphics Power (W) | 575 |
| Required System Power (W) (5) | 1000 |
| Supplementary Power Connectors | 4x PCIe 8-pin cables (adapter in box) OR 1x 600 W PCIe Gen 5 cable |
GPU Accelerators

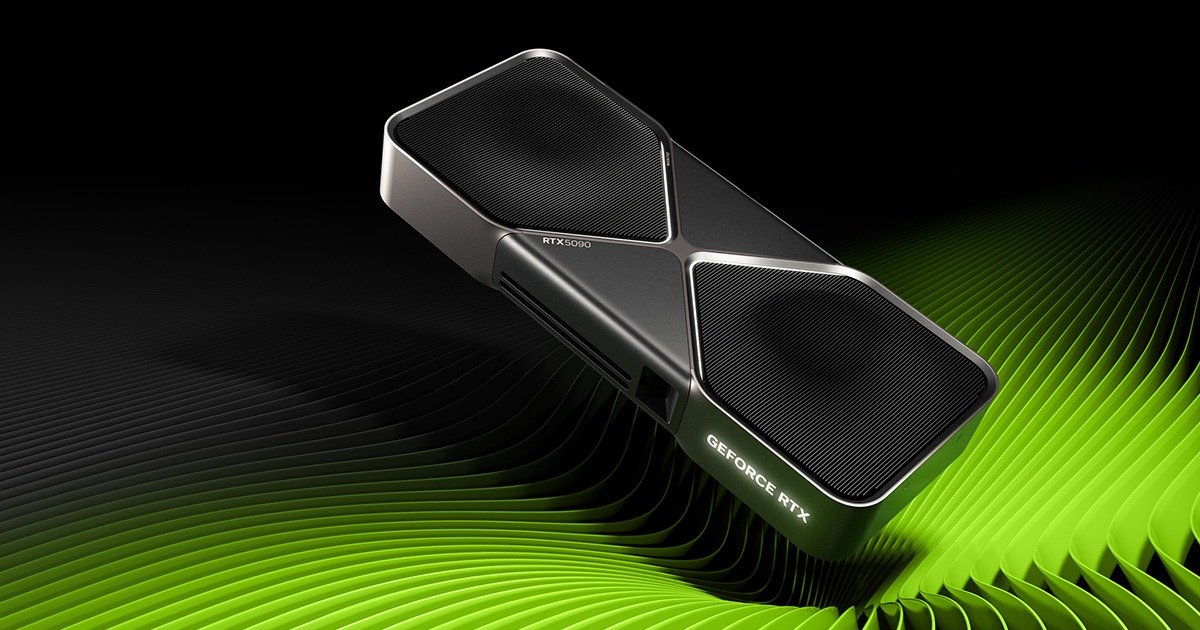

NVIDIA GeForce RTX 5090 32GB
The NVIDIA GeForce RTX 5090 32GB is a graphics card built on the Blackwell architecture, with 32 GB GDDR7 memory.
Overview
The NVIDIA GeForce RTX 5090 32GB is a graphics card built on the Blackwell architecture, with 32 GB GDDR7 memory.
Key Features
- Memory: 32 GB GDDR7 memory
- Blackwell architecture
Applications
- AI research and development
- Content creation and rendering
- High-refresh gaming and enthusiast builds
Configuration, availability and lead time depend on the required quantity, server pairing and delivery destination. Send your requirement to receive a quotation.
