| Platform Type | Object storage appliance (ObjectScale X-Series) |
|---|---|
| Node Architecture | Intel x86 servers with integrated storage |
| Drives per Node | 6, 12 or 24 disk drives per node |
| Node to Disk Ratios | 1:6, 1:12, 1:24 |
| Disk Type | 2 TB, 4 TB, 8 TB, 16 TB, 20 TB, 24 TB (7200 rpm SATA) |
| Memory | 256 GB |
| Cache SSD | 1.6 TB SSD included, for improved metadata read and write cache performance |
| Raw Capacity per Node | 48 TB, 96 TB, 192 TB, 384 TB, 480 TB, 576 TB |
| Maximum Raw Capacity per Rack | Up to 9,216 TB (9.2 PB) per rack |
| Network Connectivity | 25GbE front-end and 25GbE back-end |
| Connectivity per Rack | Dual 25 GbE front-end switches and dual 25 GbE back-end switches (internal traffic) per rack |
| Uplink Connectivity | Up to 16×10 GbE, 16×25 GbE, 8×40 GbE or 8×100 GbE (800 Gb/s maximum bandwidth), including high availability configuration |
| Backend Aggregation Switches | N/A |
| Rack Configuration | 1 through 16 node configurations (5-node minimum initial rack), HA power |
| Cluster Size | 5 node minimum (with 12+4 erasure coding); no maximum |
| Minimum / Maximum Rack Configuration | Minimum 1 node (1 server with included disks); maximum 16 nodes (16 servers with included disks) |
| Cabinet | Titan-S standard 42U cabinet |
| Node Dimensions | 2U x D (837 mm) |
| Rack Dimensions | H 78.4 inch x W 23.6 inch x D 47.2 inch, including the front door |
| Power Supplies | 2 x 1400 W power supplies per node (HA) |
| Maximum Power | 0.7043 kVA per 2U node with 24 drives |
| Maximum Heat Load | 2369 BTU/hr per 2U node |
| Rack Power Specifications | 6 x single phase L6-30 (redundant power), 30 A circuit breaker maximum per AC power source |
| Operating Environment | Operating temperature 41 – 86 F / 5 – 30 C |
| Upgrade Options | Scale out by additional nodes; 6 drive capacity upgrade kit |
| Object Protocol | S3 and multiprotocol object access |
| Namespace | Single global namespace across distributed storage infrastructure |
| Services and Warranty | Dell ProSupport with deployment and consulting services; ProSupport Plus optional |

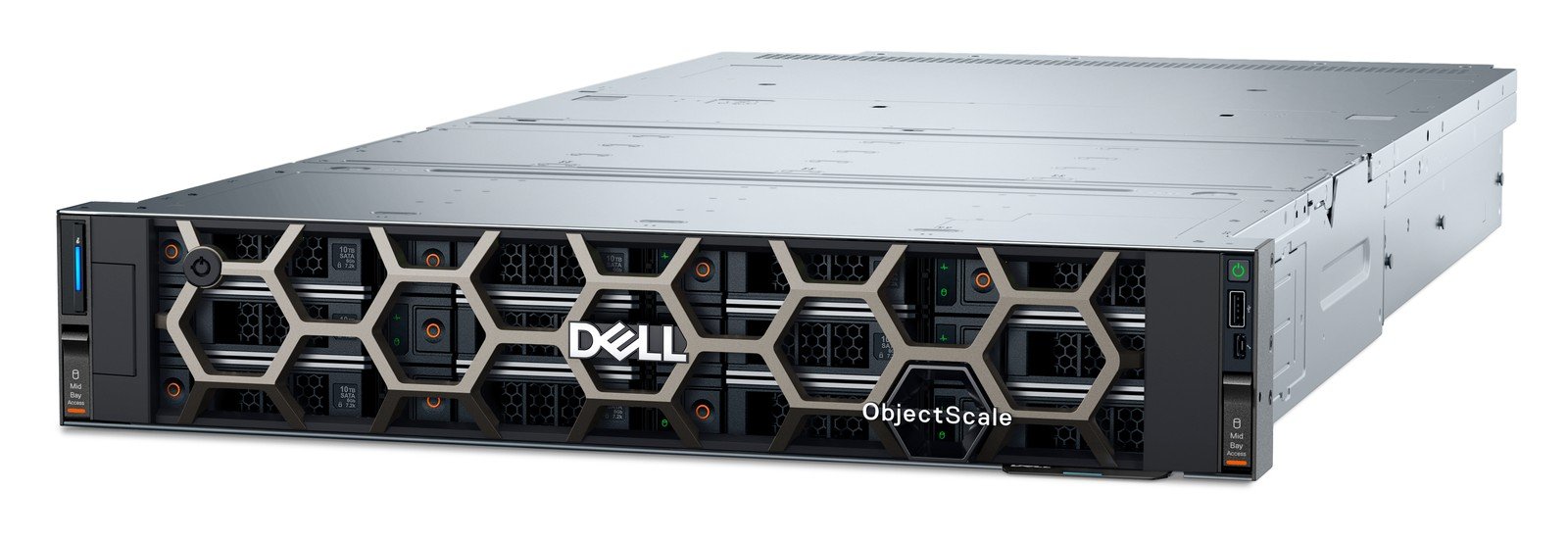

ObjectScale X560 Object Storage
The Dell ObjectScale X560 Object Storage is an enterprise object storage appliance based on Intel x86 servers, with 6, 12 or 24 disk drives per node and up to 9,216 TB (9.2 PB) of raw capacity per rack. It provides S3 and multiprotocol access under a single global namespace.
ObjectScale X560 Object Storage Overview
The ObjectScale X560 is a modern, general-purpose HDD platform offering the perfect blend of economy and density for AI data lake storage, featuring hardware innovations based on the PowerEdge R760xd2. Rack capacity ranges from 60 TB to 9.22 PB.
Dell ObjectScale is an enterprise-grade, cloud-scale object storage platform that lets any
organisation deliver scalable public cloud services with the reliability and control of private
cloud infrastructure. It provides S3 and multiprotocol support for object workloads and manages
globally distributed storage infrastructure under a single global namespace. ObjectScale is in its
fourth generation of hardware appliances, the X-Series, building on the EMC Centera, Atmos and ECS
platforms that preceded it.
Node Architecture and Storage
- Node architecture: Intel x86 servers with integrated storage
- Drives per node: 6, 12 or 24 disk drives per node
- Node to disk ratios: 1:6, 1:12, 1:24
- Disk type: 2 TB, 4 TB, 8 TB, 16 TB, 20 TB, 24 TB (7200 rpm SATA)
- Memory: 256 GB
- Cache SSD: 1.6 TB SSD included, for improved metadata read and write cache performance
Capacity
- Raw capacity per node: 48 TB, 96 TB, 192 TB, 384 TB, 480 TB, 576 TB
- Maximum raw capacity per rack: Up to 9,216 TB (9.2 PB) per rack
Networking and Connectivity
- Network connectivity: 25GbE front-end and 25GbE back-end
- Connectivity per rack: Dual 25 GbE front-end switches and dual 25 GbE back-end switches (internal traffic) per rack
- Uplink connectivity: up to 16×10 GbE, 16×25 GbE, 8×40 GbE or 8×100 GbE
uplinks to the customer network (800 Gb/s maximum bandwidth), including high availability
configuration - Backend aggregation switches: N/A
Rack and Cluster Configuration
- Rack configuration: 1 through 16 node configurations (5-node minimum initial rack), HA power
- Cluster size: 5 node minimum (with 12+4 erasure coding); no maximum
- Minimum and maximum rack configuration: Minimum 1 node (1 server with included disks); maximum 16 nodes (16 servers with included disks)
- Architecture: Titan-S standard 42U cabinet
- Serviceability: fully accessible, field-serviceable components with
conventional front-to-back cooling and HA power cabling and cooling
Physical Specifications
- Node dimensions: 2U x D (837 mm)
Weight (maximum): 40.18 kg / 88.6 lb with 24 drives - Rack dimensions: H 78.4 inch x W 23.6 inch x D 47.2 inch, including the front door
Weight: 1076 kg / 2372 lb with 4 switches and 16 2U nodes
Power and Thermal
- Power supplies: 2 x 1400 W power supplies per node (HA)
- Maximum power: 0.7043 kVA per 2U node with 24 drives
- Maximum heat load: 2369 BTU/hr per 2U node
- Rack power specifications: 6 x single phase L6-30 (redundant power), 30 A circuit breaker maximum per AC power source
2 x three-phase WYE S52.30 (redundant power), 32 A circuit breaker maximum per AC power source
2 x three-phase delta CS-8365C (redundant power), 50 A circuit breaker maximum per AC power source
Input voltage 200 – 240 VAC; frequency 50 – 60 Hz
Operating Environment
- Operating temperature 41 – 86 F / 5 – 30 C
Maximum altitude 7,500 ft / 2,286 m at 86 F / 30 C
Relative humidity 20 – 80% non-condensing
Raised floor not required
Upgrade Options
Scale out by additional nodes; 6 drive capacity upgrade kit
Ordering
Configuration, availability and lead time depend on the required model, drive mix, protocols and delivery destination. Send your requirement to receive a quotation.
