| Product SKU | P4-TOWER |
|---|---|
| Form Factor | Tower (29.9L) |
| Processor | Up to one AMD Ryzen™ 5 / 7 / 9 PRO 9000 Series processor, supports up to 16 cores; up to 5.5GHz; up to 170W TDP |
| Chipset | AMD PRO 675 chipset |
| Graphics | Supports up to one NVIDIA® RTX PRO 6000 Blackwell Workstation Edition; or up to two NVIDIA® RTX A1000 |
| Memory | Up to 256GB (4x 64GB DDR5 CUDIMM) |
| Storage | Up to six storage drives total |
| Bays | Three internal disk bays; Bay 1: Supports one 3.5" HDD (standard); Bay 2: Supports one 3.5" HDD (standard); Bay 3: Supports one of the following options (mutually exclusive); – One 3.5" HDD; – One Front Access HDD Bay; – One slim ODD bay |
| M.2 Slots | • Up to 3x M.2 slots for M.2 SSD; – 2 onboard M.2 PCIe® 5.0 slots; – 1 onboard M.2 PCIe® 4.0 slot; One M.2 slot (for WLAN) |
| Expansion Slots | Supports 4 PCIe® slots |
| Ports | 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI® 2.1, up to 4K/100Hz or 8K/30Hz; 1x DisplayPort™ 1.4, up to 4K/120Hz or 8K/30Hz; 1x DisplayPort™ 2.0, up to 4K/144Hz or 8K/60Hz; 1x Ethernet (2.5GbE RJ-45) … |
| Networking | 2.5 Gigabit Ethernet, Realtek® RTL8125BP-CG, 1x RJ-45, supports Wake-on-LAN |
| Wireless | MediaTek Wi-Fi® 7 MT7925, 802.11be 2×2 Wi-Fi® + Bluetooth® 5.4 |
| Power Supply | 500W / 750W / 1100W power supply (80 PLUS Platinum) |
| Operating System | Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Ubuntu Linux LTS; Red Hat Enterprise Linux 10.2 |
| Security | Discrete TPM 2.0, TCG certified |
| System Management | AMD PRO Manageability |
| Dimensions | 180 x 401.5 x 415 mm (7.09 x 15.81 x 16.34 inches) |
| Weight | Starting at 8.75 kg (19.29 lbs) |
| Operating Environment | Operating: 10°C (50°F) to 35°C (95°F) |
| Certifications | MIL-STD-810H military test passed; (Optional) ENERGY STAR® 9.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; (Optional) TCO Certified 10; RoHS compliant |
| Warranty | 1-year limited onsite service; 2-year limited onsite service; 3-year limited onsite service; No base warranty |
| Brand | Lenovo |
| Product Line | Lenovo ThinkStation |
Workstations

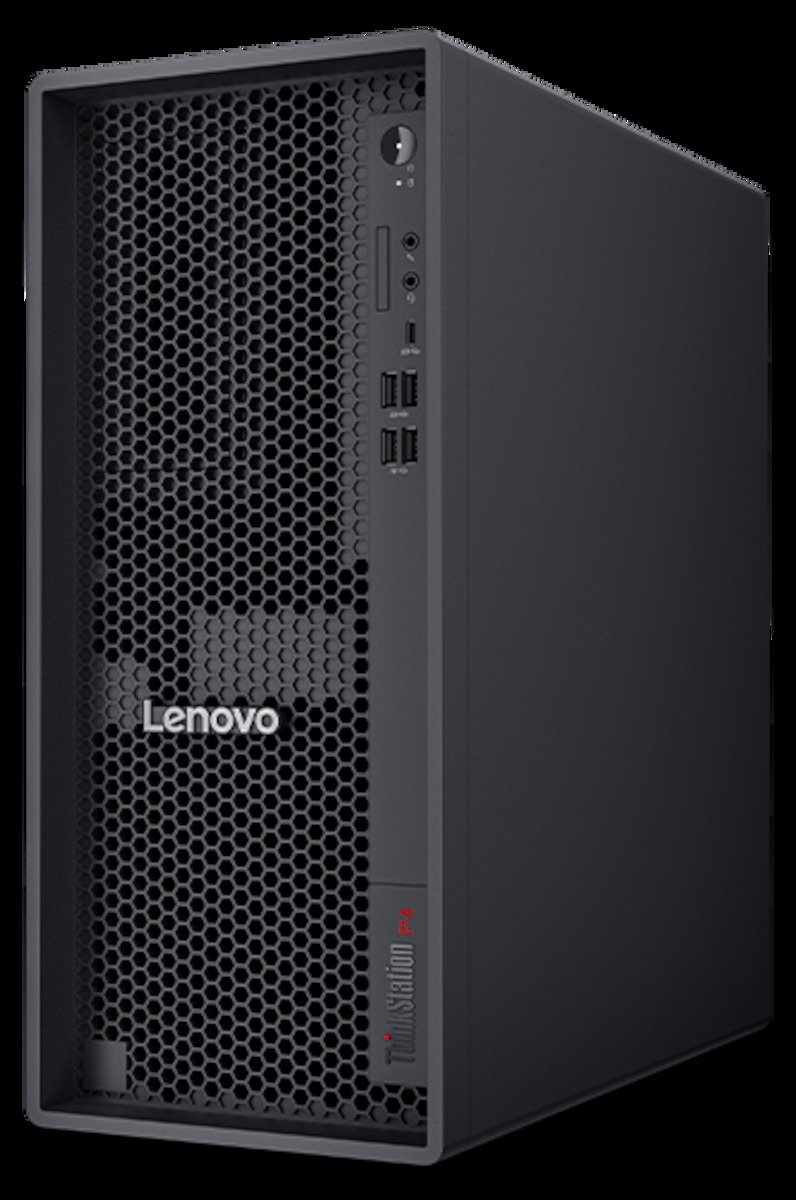

Lenovo ThinkStation P4 (AMD) Tower Workstation
The Lenovo ThinkStation P4 (AMD) Tower Workstation is a tower (29.9L) workstation powered by up to one AMD Ryzen™ 5 / 7 / 9 PRO 9000 Series processor, supports up to 16 cores, with up to one NVIDIA® RTX PRO 6000 Blackwell Workstation Edition.
Overview
The Lenovo ThinkStation P4 (AMD) Tower Workstation is a tower workstation from Lenovo. A Higher Standard for Future-Ready Professionals. It provides up to AMD Ryzen 9 Pro 9965X3D (up to 16 cores, up to 5.5GHz) and support for NVIDIA RTX PRO Blackwell GPUs.
Key Features
- Form Factor: Tower (29.9L)
- Processor: Up to one AMD Ryzen™ 5 / 7 / 9 PRO 9000 Series processor, supports up to 16 cores; up to 5.5GHz; up to 170W TDP
- Graphics: Supports up to one NVIDIA® RTX PRO 6000 Blackwell Workstation Edition; or up to two NVIDIA® RTX A1000
- Memory: Up to 256GB (4x 64GB DDR5 CUDIMM); DDR5-5600 UDIMM, ECC, 16GB / 32GB DIMMs, with a maximum supported data rate of 5600 MT/s; DDR5-5600 UDIMM, non-ECC, 8GB / 16GB / 32GB / 48GB DIMMs, with a maximum data rate of 5600 MT/s
- Storage: Up to six storage drives total
- Expansion Slots: Supports 4 PCIe® slots
- Networking: 2.5 Gigabit Ethernet, Realtek® RTL8125BP-CG, 1x RJ-45, supports Wake-on-LAN
- Power Supply: 500W / 750W / 1100W power supply (80 PLUS Platinum)
- Operating System: Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Ubuntu Linux LTS; Red Hat Enterprise Linux 10.2
- Certifications: MIL-STD-810H military test passed; (Optional) ENERGY STAR® 9.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; (Optional) TCO Certified 10; RoHS compliant
Applications
- CAD, BIM and 3D modelling
- AI model development and inference at the desk
- Media, video and content creation
- Engineering simulation and data science
Configuration, availability and lead time depend on the required quantity, options and delivery destination. Send your requirement to receive a quotation.
