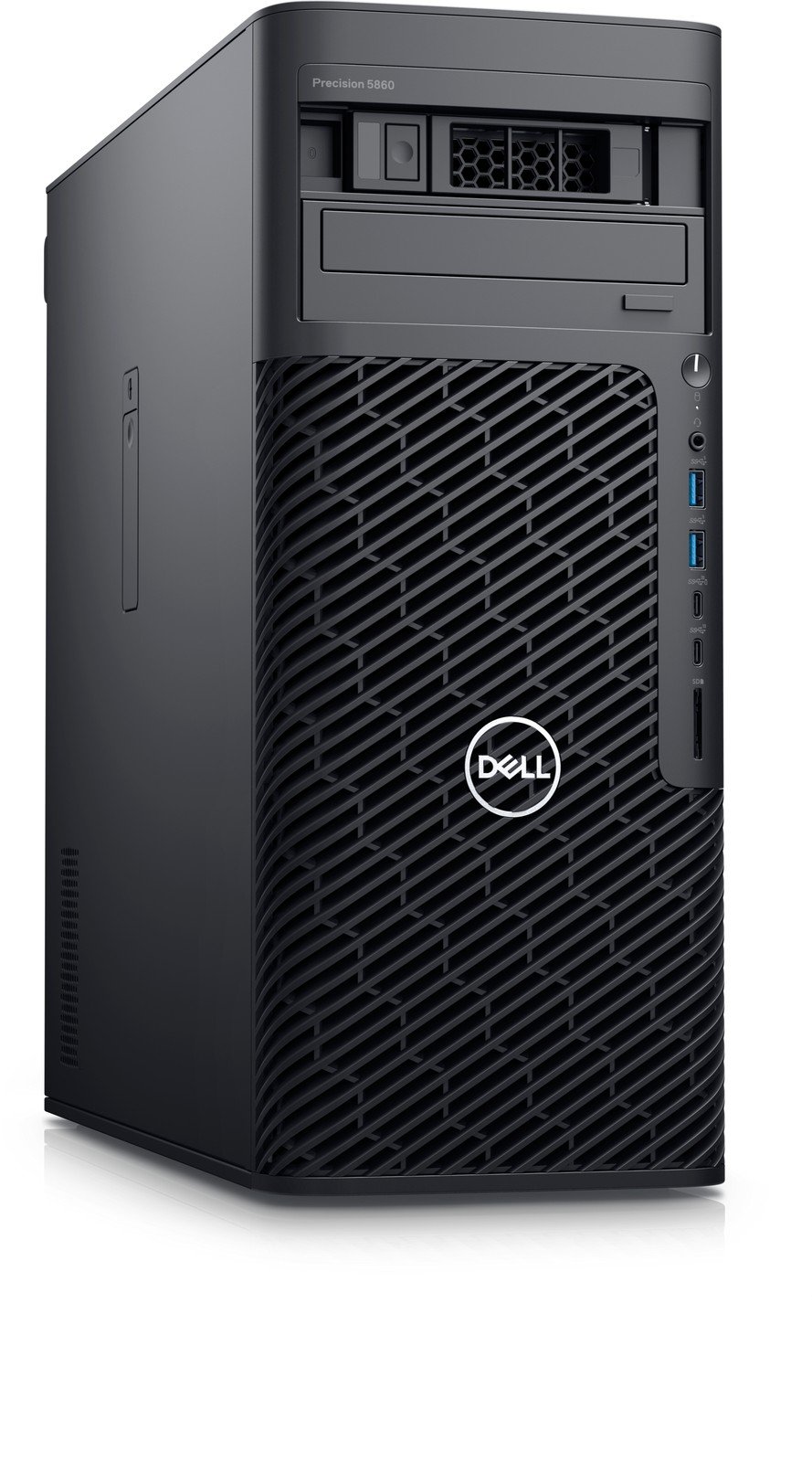

Precision 5860 Tower Workstation

Overview

The Precision 5860 Tower is a mid-size tower workstation on the Intel W790 chipset, configurable with Intel Xeon W5/W7/W9 processors up to the W7-2595X. It supports two NVIDIA or AMD professional graphics cards, up to 56 TB of storage and up to 2 TB of 4800 MHz DDR5 memory, with dual 1 GbE and 10 GbE network ports as standard options.

Key Features

• Form Factor: Mid-size tower
• Processor: Intel® Xeon® W7-2595X (48.75 MB cache, 26 cores, 52 threads, 2.8 GHz to 4.8 GHz Turbo, 250 W); Intel® Xeon® W7-2575X (45 MB cache, 22 cores, 44 threads, 3.0 GHz to 4.8 GHz Turbo, 250 W); Intel® Xeon® W5-2565X (37.5 MB cache, 18 cores, 36 threads, 3.2 GHz to 4.8 GHz Turbo, 240 W); Intel® Xeon® W5-2555X (33.75 MB cache, 14 cores, 28 threads, 3.3 GHz to 4.8 GHz Turbo, 210 W); Intel® Xeon® W5-2545 (30 MB cache, 12 cores, 24 threads, 3.5 GHz to 4.7 GHz Turbo, 210 W); Intel® Xeon® W3-2535 (26.25 MB cache, 10 cores, 20 threads, 3.5 GHz to 4.6 GHz Turbo, 185 W); Intel® Xeon® W3-2525 (22.5 MB cache, 8 cores, 16 threads, 3.5 GHz to 4.5 GHz Turbo, 175 W); Intel® Xeon® W3-2423, 15MB cache, 6 cores, 2.1GHz to 4.2GHz; Intel® Xeon® W3-2425, 15MB cache, 6 cores, 3.0GHz to 4.4GHz; Intel® Xeon® W3-2435, 22.5MB cache, 8 cores, 3.1GHz to 4.5GHz; Intel® Xeon® W5-2445, 26.25MB cache, 10 cores, 3.1GHz to 4.6GHz; Intel® Xeon® W5-2455X, 30MB cache, 12 cores, 3.2GHz to 4.6GHz; Intel® Xeon® W5-2465X, 33.75MB cache, 16 cores, 3.1GHz to 4.7GHz; Intel® Xeon® W7-2475X, 37.5MB cache, 20 cores, 2.6GHz to 4.8GHz; Intel® Xeon® W7-2495X, 45MB cache, 24 cores, 2.5GHz to 4.8GHz
• Chipset: Intel® PCH W790
• Graphics: NVIDIA:; NVIDIA® RTX Pro 6000 Blackwell (300W), 96GB GDDR7; NVIDIA® RTX Pro 5000 Blackwell, 48GB GDDR7; NVIDIA® RTX™ A6000, 48GB GDDR6; NVIDIA® RTX™ A5500, 24GB GDDR6; NVIDIA® RTX™ A4500, 20GB GDDR6; NVIDIA® RTX™ A4000, 16GB GDDR6; NVIDIA® RTX™ A2000, 12GB GDDR6; NVIDIA® RTX™ 6000 Ada Generation; NVIDIA® RTX™ 5000 Ada Generation; NVIDIA® RTX™ 4500 Ada Generation; NVIDIA® RTX™ 4000 Ada Generation; NVIDIA® RTX™ 2000 Ada Generation; NVIDIA® A1000, 8 GB GDDR6; NVIDIA® A400, 4 GB GDDR6; NVIDIA® GV100, 32GB HBM2; NVIDIA® A800; NVIDIA® RTX Pro5000 Blackwell(300W), 72GB GDDR7(Coming soon); NVIDIA® RTX Pro2000 Blackwell, 16GB GDDR7; NVIDIA® RTX Pro4000 Blackwell, 24GB GDDR7; NVIDIA® RTX Pro4500 Blackwell, 32GB GDDR7; AMD:; AMD Radeon™ Pro W7400; AMD Radeon™ Pro W7500; AMD Radeon™ Pro W7600; AMD Radeon™ Pro W6300
• Memory: 16GB, 1 x 16GB, DDR5 SPR, 1 DPC, 4800MT/s; 32GB, 2 x 16GB, DDR5 SPR, 1 DPC, 4800MT/s; 64GB, 4 x 16GB, DDR5 SPR, 1 DPC, 4800MT/s; 96GB, 6 x 16GB, DDR5 SPR, 2 DPC, 4400MT/s; 128GB, 8 x 16GB, DDR5 SPR, 2 DPC, 4400MT/s; 32GB, 1 x 32GB, DDR5 SPR, 1 DPC, 4800MT/s; 64GB, 2 x 32GB, DDR5 SPR, 1 DPC, 4800MT/s; 128GB, 4 x 32GB, DDR5 SPR, 1 DPC, 4800MT/s; 192GB, 6 x 32GB, DDR5 SPR, 2 DPC, 4400MT/s; 256GB, 8 x 32GB, DDR5 SPR, 2 DPC, 4400MT/s; 64GB, 1 x 64GB, DDR5 SPR, 1 DPC, 4800MT/s; 128GB, 2 x 64GB, DDR5 SPR, 1 DPC, 4800MT/s; 256GB, 4 x 64GB, DDR5 SPR, 1 DPC, 4800MT/s; 384GB, 6 x 64GB, DDR5 SPR, 2 DPC, 4400MT/s; 512GB, 8 x 64GB, DDR5 SPR, 2 DPC, 4400MT/s; 128GB, 1 x 128GB, DDR5 SPR, 1 DPC, 4800MT/s; 256GB, 2 x 128GB, DDR5 SPR, 1 DPC, 4800MT/s; 512GB, 4 x 128GB, DDR5 SPR, 1 DPC, 4800MT/s; 768GB, 6 x 128GB, DDR5 SPR, 2 DPC, 4400MT/s; 1TB, 8 x 128GB, DDR5 SPR, 2 DPC, 4400MT/s; 256GB, 1 x 256GB, DDR5 SPR, 1 DPC, 4800MT/s; 512GB, 2 x 256GB, DDR5 SPR, 1 DPC, 4800MT/s; 1TB, 4 x 256GB, DDR5 SPR, 1 DPC, 4800MT/s; 1.5TB, 6 x 256GB, DDR5 SPR, 2 DPC, 4400MT/s; 2TB, 8 x 256GB, DDR5 SPR, 2 DPC, 4400MT/s
• Storage: 3.5-inch, 1TB, 7200 RPM, SATA, HDD; 3.5-inch, 2TB, 7200 RPM, SATA, Enterprise HDD; 3.5-inch, 4TB, 7200 RPM, SATA, Enterprise HDD; 3.5-inch, 8TB, 7200 RPM, SATA, Enterprise HDD; 3.5-inch, 12TB, 7200RPM, Enterprise HDD; 2.5-inch, 500GB, 7200 RPM, SATA, HDD; 2.5-inch, 600GB, 15K RPM, SAS Enterprise HDD; 2.5-inch, 1.2TB, 10K RPM, SAS Enterprise HDD; 2.5-inch, 2.4TB, 10K RPM, SAS Enterprise HDD; 2.5-inch, 1.92TB, SATA MU SSD; M.2 2230, 256GB, PCIe NVMe Gen4 x4, SSD, Class 35; M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS; M.2 2280, 4TB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS; M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS; M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS; M.2 2230, 512GB, PCle NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS
• Drive Bays: Lockable drive bays; (2) SATA slots for 2.5/3.5-inch HDD/SSD; (2) SATA 3.0 slots for externally facing storage flexbay; SATA 3.0 slot for optical drive
• M.2 Slots: (2) M.2 2230/2280 slots for PCIe NVMe Gen4 SSD; (2) M.2 2230/2280 slots for externally facing PCle NVMe Gen4 storage flexbays
• Expansion Slots: Full-height Gen5 PCIe x16 slot; Full-height Gen4 PCIe x16 slot; (2) Full-height Gen4 PCIe x8 slot open-ended; Full-height Gen4 PCIe x8 slot (x4 electrical) open-ended; 5x PCIe slots (5 expansion card slots)
• Ports: Front:; (2) USB 3.2 Gen 1 ports; USB 3.2 Gen 2×2 Type-C port with PowerShare; USB 3.2 Gen 2 Type-C port; Universal audio port; SD-card slot; Rear:; (3) USB 3.2 Gen 2 Type-C ports; (2) USB 3.2 Gen 1 ports; USB 3.2 Gen 1 port with Smart Power On; RJ45 Ethernet port, 1GBE; RJ45 Ethernet port, 10GBE; Line-out port; Serial port (optional); (2) PS2 ports (optional)
• Networking: RJ45 Ethernet port, 1GBE; RJ45 Ethernet port, 10GBE; Add-in: Intel® Ethernet Network Adapter x710-T2L NIC Card (Base-T); Intel® Ethernet Converged Network Adapter E810-DA2 NIC Card (Optical, requires SFP+/SFP28 transceivers); Intel® Ethernet Network Adapter i226 2.5GBE NIC Card
• Wireless: Qualcomm® WCN6856-DBS, 2×2 MIMO, 3571MBps, 2.4GHz/5GHz/6GHz, Wi-Fi 6E (Wi-Fi 802.11ax), Bluetooth 5.3
• Audio: Realtek Audio Controller, ALC3246-CG; Single Universal Audio Jack on Front panel One line out jack on Rear IO; Internal speakers
• Power Supply: 750W Platinum internal power supply unit; 1350W Platinum internal power supply unit – optional
• Operating System: Windows 11 Pro Downgrade (Windows 10 Pro Image-factory installed); Windows 10 CMIT Government Edition, 64-bit (China only); Windows 11 Pro for Workstations; Windows 10 Pro for Workstations Downgrade; Ubuntu® 24.04 LTS, 64-bit; Red Hat® Enterprise Linux® 9.3
• Security: Security cable slot; Padlock loop; Chassis lock support – Coin locker; Chassis intrusion switch; Lockable bezel for externally-facing storage flexbay (included with M.2 NVMe drives, optional with SATA drives); TPM 2.0 Discrete Hardware; Security software: McAfee® Small Business Security, Dell Encryption Personal, Dell Encryption Enterprise; Microsoft Windows Bitlocker Manager; Support for Encryption SED HDD’s (Opal FIPS and non FIPS); Local HDD data wipe via BIOS (Secure Erase); BIOS Administrative Password; BIOS HDD password option; Windows 10 Device Guard and Credential Guard
• System Management: Dell Trusted Device agent SW (for intrusion switch); Waves MaxxAudio Pro Support; Dell Color Management and Calibration for Monitors; Microsoft Windows Bitlocker Manager; Support eDRIVE Storage including RAID; PBA support of smart card reader; BIOS Data Port On/Off – Data Port disablement; Secure update of pre-boot password(s) via remote BIOS update; Core Performance Boost (CPB); IOMMU (Input-Output Memory Management Unit); Single Root IO Virtualization Support (SR-IOV)
• Dimensions (H x W x D): US: Height: 16.29in. (414mm) / 16.45in. (417.90mm) with rubber-foot protruding; Width: 6.79in. (172.60mm) / 6.94in. (176.50mm) with rubber-foot protruding; Depth: 16.90in. (429.60mm) / 17.79in. (452.10mm) with lock-structure protruding; Rest of the world: Height: 414mm (16.29in.) / 417.90mm (16.45in.); Width: 172.60mm (6.79in.) / 176.50mm (6.94in.); Depth: 429.60mm (16.90in.) / 452.10mm (17.79in.)
• Weight: Maximum: 47.80lb (21.70kg); Minimum: 31.70lb (14.40kg)
• Certifications: EPEAT Gold certified; Product Safety, EMC and Environmental Datasheets; Dell Regulatory Compliance Home Page; Dell and the Environment
• Warranty: 3-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis; 4-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis; 5-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis; 3-year/4-year/5-year ProSupport with Next Business Day on-site service; 3-year/4-year/5-year ProSupport Plus for Client with Next Business Day on-site service; 3-year/4-year/5-year Accidental Damage Service

Key Highlights

• Up to Intel Xeon W-series processors with W790 chipset
• Up to two NVIDIA or AMD professional graphics cards, 56 TB of storage and 2 TB of DDR5 memory
• Dual network ports (1 GbE + 10 GbE), five PCIe slots and a lockable, front-accessible storage design

Applications

• AI and VR ready workflows
• Large 3D CAD assemblies and rendering
• Simulation, analysis and data science
• Virtual production and media

Configuration, availability and lead time depend on the required processor, memory, graphics, storage and delivery destination. Send your requirement to receive a quotation.
