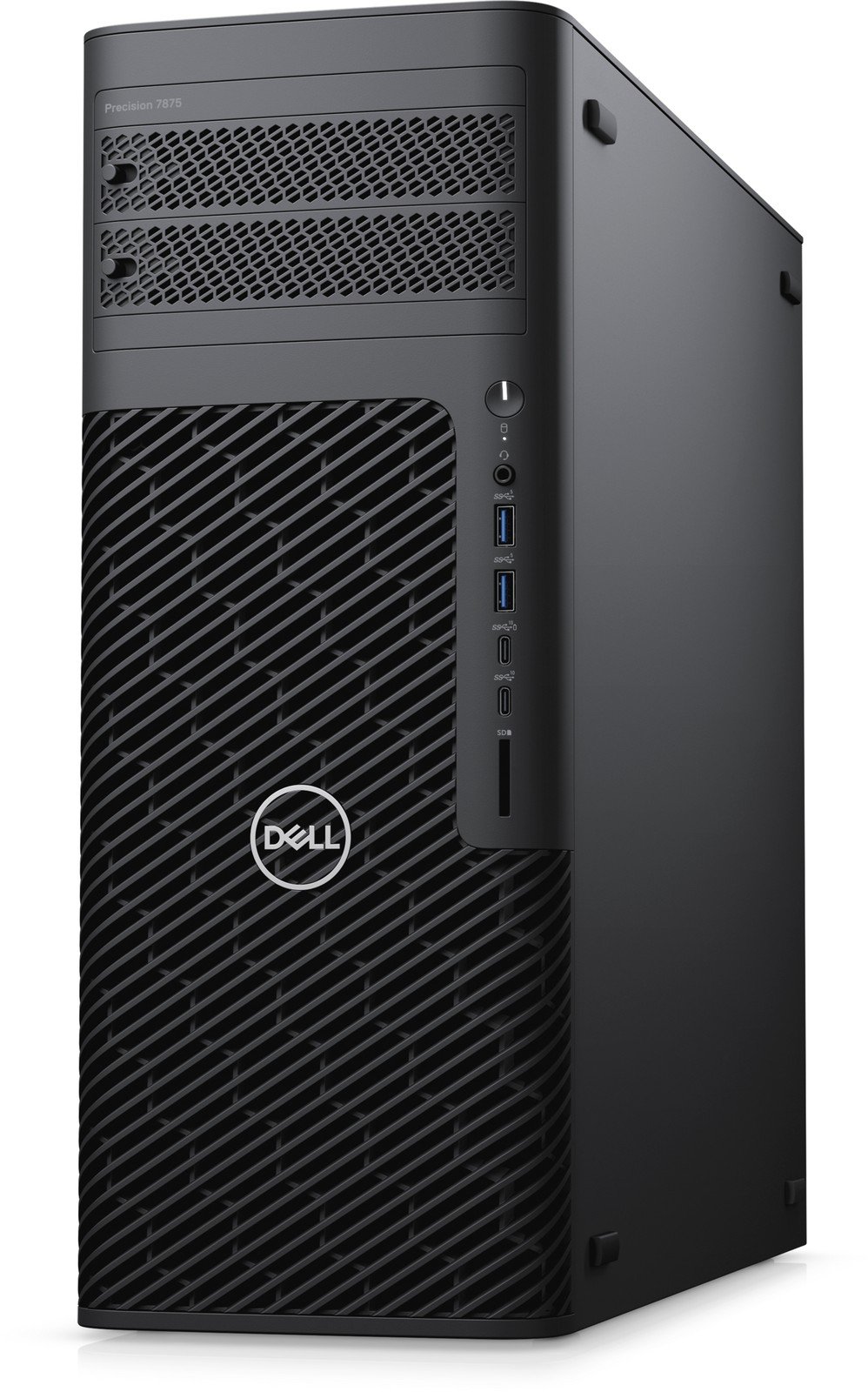

Precision 7875 Tower Workstation

Overview

The Precision 7875 Tower is a single-socket AMD workstation powered by Ryzen Threadripper PRO processors with up to 96 cores and 192 threads, the highest core count available in a Precision workstation. It supports up to two 300W graphics cards or a single 500W triple-wide card, up to 2 TB of 5600 MHz DDR5 memory and up to 56 TB of storage across front-accessible, lockable Flexbays.

Key Features

• Form Factor: Tower
• Processor: AMD® Ryzen™ Threadripper™ Pro 9995WX, 96 cores, 192 threads, 2.5GHz to 5.4GHz, 350W; AMD® Ryzen™ Threadripper™ Pro 9985WX, 64 cores, 128 threads, 3.2GHz to 5.4GHz, 350W; AMD® Ryzen™ Threadripper™ Pro 9975WX, 32 cores, 64 threads, 4.0GHz to 5.4GHz, 350W; AMD® Ryzen™ Threadripper™ Pro 9965WX, 24 cores, 48 threads, 4.2GHz to 5.4GHz, 350W; AMD® Ryzen™ Threadripper™ Pro 9955WX, 16 cores, 32 threads, 4.5GHz to 5.4GHz, 350W; AMD® Ryzen™ Threadripper™ Pro 9945WX, 12 cores, 24 threads, 4.7GHz to 5.4GHz, 350W; AMD® Ryzen™ Threadripper™ Pro 7995WX, 96 cores, 192 threads, 2.50 GHz to 5.10 GHz, 350 W; AMD® Ryzen™ Threadripper™ Pro 7985WX, 64 cores, 128 threads, 3.20 GHz to 5.10 Ghz, 350 W; AMD® Ryzen™ Threadripper™ Pro 7975WX, 32 cores, 64 threads, 4.0 GHz to 5.30 Ghz, 350 W; AMD® Ryzen™ Threadripper™ Pro 7965WX, 24 cores, 48 threads, 4.20 GHz to 5.30 Ghz, 350 W; AMD® Ryzen™ Threadripper™ Pro 7955WX, 16 cores, 32 threads, 4.50 GHz to 5.30 Ghz, 350 W; AMD® Ryzen™ Threadripper™ Pro 7945WX, 12 cores, 24 threads, 4.70 GHz to 5.30 Ghz, 350 W
• Graphics: NVIDIA:; NVIDIA RTX Pro 6000 Blackwell (300W), 96GB GDDR7; NVIDIA RTX Pro 5000 Blackwell, 48GB GDDR7; NVIDIA RTX Pro 4500 Blackwell, 32GB GDDR7; NVIDIA RTX Pro 4000 Blackwell, 24GB GDDR7; NVIDIA RTX Pro 5000 Blackwell (300W), 72GB GDDR7 (coming soon); NVIDIA RTX Pro 2000 Blackwell, 16GB GDDR7; NVIDIA® RTX™ 6000 Ada, 48 GB DDR6; NVIDIA® RTX™ 5000 Ada, 24 GB GDDR6; NVIDIA® RTX™ 4000 Ada, 20 GB GDDR6; NVIDIA® RTX™ 2000 Ada, 12GB GDDR6; NVIDIA® RTX™ A6000, 48 GB GDDR6; NVIDIA® RTX™ A4000, 16 GB GDDR6; NVIDIA® RTX™ A2000, 12 GB GDDR6; NVIDIA® A1000, 8 GB DDR6; NVIDIA® A400, 4 GB DDR6; AMD:; AMD Radeon™ Pro W7600, 8 GB GDDR6; AMD Radeon™ Pro W7500, 8 GB GDDR6; AMD Radeon™ Pro W6400, 4 GB GDDR6; Note: Precision 7875 Tower does not include integrated graphics capability. A discrete graphics card is required for display output.
• Memory: 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, ECC; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, ECC; 64 GB: 4 x 16 GB, DDR5, 5600 MT/s, ECC; 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, ECC; 128 GB: 8 x 16 GB, DDR5, 5600 MT/s, ECC; 128 GB: 4 x 32 GB, DDR5, 5600 MT/s, ECC; 256 GB: 8 x 32 GB, DDR5, 5600 MT/s, ECC; 256 GB: 4 x 64 GB, DDR5, 5600 MT/s, ECC; 512 GB: 8 x 64 GB, DDR5, 5600 MT/s, ECC; 512 GB: 4 x 128 GB, DDR5, 5600 MT/s, ECC; 768 GB: 6 x 128 GB, DDR5, 5600 MT/s, ECC; 1024 GB: 8 x 128 GB, DDR5, 5600 MT/s, ECC; 1024 GB: 4 x 256 GB, DDR5, 5600 MT/s, ECC; 1536 GB: 6 x 256 GB, DDR5, 5600 MT/s, ECC; 2048 GB: 8 x 256 GB, DDR5, 5600 MT/s, ECC; 8 DIMM Slots: Up to 256 GB per slot; Maximum speed: 5200 MT/s ECC (Supported with 5600 module); Maximum capacity: 2 TB; Note: AMD Ryzen Threadripper Pro 7000 series support memory up to 5200 MT/s on all configurations
• Storage: 12 TB, 7200 RPM, 3.5-inch, SATA, HDD; 8 TB, 7200 RPM, 3.5-inch, SATA, HDD; 4 TB, 7200 RPM, 3.5-inch, SATA, HDD; 2 TB, 7200 RPM, 3.5-inch, SATA, HDD; 1 TB, 7200 RPM, 3.5-inch, SATA, HDD; 2.4 TB, 10000 RPM, 2.5-inch, SAS Enterprise Drive, HDD; 1.2 TB, 10000 RPM, 2.5-inch, SAS Enterprise Drive, HDD; 600 GB, 15000 RPM, 2.5-inch, SAS Enterprise Drive, HDD; M.2 2280, 4 TB, PCIe NVMe Gen4 x4, SSD, SED Capable, Class 40; M.2 2280, 2 TB, PCIe NVMe Gen 4 x4, SSD, SED Capable, Class 40; M.2 2280, 1 TB, PCIe NVMe Gen4 x4, SSD, SED Capable, Class 40; M.2 2280, 512 GB, PCIe NVMe Gen4 x4, SSD, SED Capable, Class 40; M.2 2230, 256 GB, PCIe NVMe Gen4 x4, SSD, SED Capable, Class 35; M.2 2230, 512GB, PCIe NVMe Gen4 x4, SSD, Self-Encrypting, Opal 2.0, FIPS
• Drive Bays: Front accessible, lockable storage bays (Flexbays); (2) SATA 3.0 slots for 3.5-inch/2.5-inch hard drive; (2) SATA 3.0 slots for externally facing storage flexbay; SATA 3.0 slot for optical drive
• M.2 Slots: (2) M.2 2230/2280 slots for PCIe NVMe Gen4 solid-state drive; (2) M.2 2230/2280 slots for externally facing PCIe NVMe Gen4 storage flexbays
• Expansion Slots: 1 full-height Gen5 PCIe x16 slot; Full-height Gen4 PCIe x16 slot; (2) Full-height Gen4 PCIe x8 slots; Full-height Gen5 PCIe x8 slot; Full-height Gen4 PCIe x8 slot (x4 electrical); SD-card slot (front); Massive expandability: scale your system with 6 expansion slots
• Ports: Front:; (2) USB 3.2 Gen 1 ports; USB 3.2 Gen 2 Type-C port with PowerShare; USB 3.2 Gen 2 Type-C port; Headset (headphone and microphone combo) port; Rear:; (3) USB 3.2 Gen 2 Type-C ports; (2) USB 3.2 Gen 1 ports; USB 3.2 Gen 1 port with Smart Power On; RJ45 Ethernet port, 1 GbE; RJ45 Ethernet port, 10 GbE; Line-out port; Serial port (optional); (2) PS2 ports (optional)
• Networking: RJ45 Ethernet port, 1 GbE; RJ45 Ethernet port, 10 GbE
• Wireless: Qualcomm WCN6856-DBS, 2×2 MIMO, 3571 Mbps, 2.4 GHz/5 GHz/6 GHz, Wi-Fi 6E (Wi-Fi 802.11ax), Bluetooth 5.3 wireless card
• Audio: Realtek Audio Controller, ALC3246; 1 internal speaker
• Power Supply: 1350 W Platinum internal power supply unit (C20 inlet); 1000 W Platinum internal power supply unit (C14 inlet)
• Operating System: Windows 10 22H2; Windows 11 SV1; Windows 11 SV2; Red Hat® Enterprise Linux® 9.6; Ubuntu® 24.04 LTS, 64-bit; Red Hat® Enterprise Linux® 9.3
• Security: Off-host BIOS and firmware verification; Front accessible, lockable and remove-able storage; Lockable chassis with intrusion detection; Self-encrypting drive; Security cable slot; Dedicated security chip for storing and processing end-user credentials with TPM 2.0 / ControlVault; Security software: McAfee® Small Business Security, Dell Encryption Personal, Dell Encryption Enterprise, Dell Encryption External Media, Dell Bitlocker Manager, Dell SafeGuard and Response VMW Carbonblack Endpoint Standard, SafeBIOS, Secure Supply Chain (former D-Pedigree)
• Dimensions (H x W x D): US: Height: 17.42 in. (442.70 mm) / 17.58 in. (446.60 mm) with rubber foot protruding; Width: 6.79 in. (172.60 mm) / 6.94 in. (176.50 mm) with rubber foot protruding; Depth: 18.30 in. (465.00 mm) / 19.19 in. (487.50 mm) with lock structure protruding; Rest of the world: Height: 442.70 mm (17.42 in.) / 446.60 mm (17.58 in.); Width: 172.60 mm (6.79 in.) / 176.50 mm (6.94 in.); Depth: 465.00 mm (18.30 in.) / 487.50 mm (19.19 in.)
• Weight: Weight: Maximum: 56.34 lb (25.57 kg) Minimum: 40.39 lb (18.34 kg)
• Certifications: Product Safety, EMC and Environmental Datasheets; Dell Regulatory Compliance Home Page; Dell and the Environment
• Warranty: 3-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis; 4-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis; 5-year Basic warranty with hardware service with on-site/in-home service after remote diagnosis; 3-year/4-year/5-year ProSupport with Next Business Day on-site service; 3-year/4-year/5-year ProSupport Plus for Client with Next Business Day on-site service; 3-year/4-year/5-year Accidental Damage Service

Key Highlights

• AMD Ryzen Threadripper PRO processor with up to 96 cores, the highest core count in a Precision workstation
• Up to two 300W graphics cards, or a single 500W triple-wide card
• Up to 56 TB of storage and 2 TB of 5600 MHz DDR5 memory across 6 expansion slots

Applications

• CPU-heavy rendering and simulation
• AI training and data science at the desk
• Virtual production and real-time engines
• Large-scale engineering analysis

Configuration, availability and lead time depend on the required processor, memory, graphics, storage and delivery destination. Send your requirement to receive a quotation.
