| Product SKU | DB730S |
|---|---|

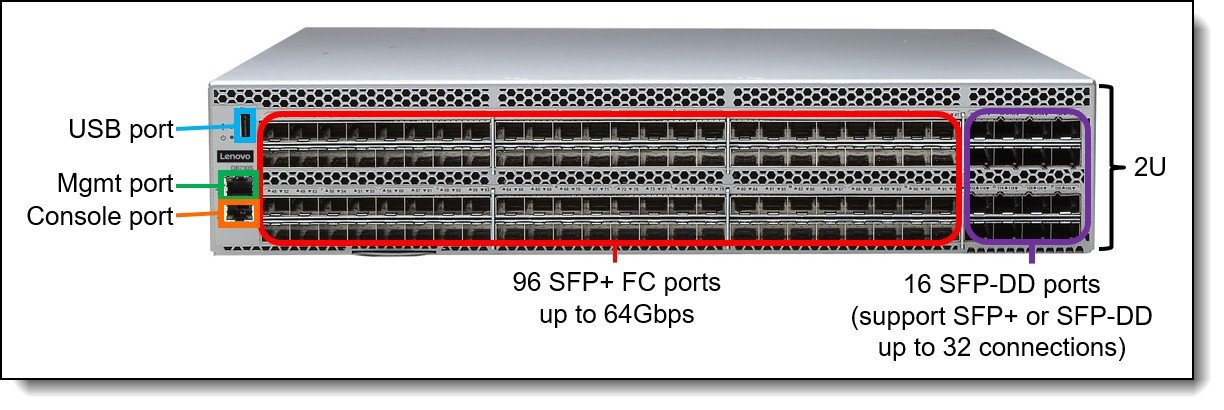

| Ports | 128 ports (96x 64G SFP+ plus 16x 2x64G SFP-DD), supporting E_Port, F_Port, M_Port and D_Port |
| Optics | 64G Fibre Channel hot-pluggable SFP-DD and SN connectors, 64Gb/s SWL |
| Power Supply | Dual, hot-swappable, redundant power supplies with integral cooling fans and status LEDs. 80 Plus Gold. |
| Rack Mounting | Rack-mount rail kits included |
| System Architecture | System Architecture |
| Fibre Channel Ports | 128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports. |
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified Maximum | 4K active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics |
| Performance | Non-blocking architecture with wire-speed forwarding of traffic: |
| Traffic Load Balancing | Frame-based trunking with up to eight SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk. |
| Aggregate Bandwidth | 8.192Tb/s |
| Maximum Fabric Latency | Latency for locally switched ports is 460 ns (including FEC). |
| Maximum Frame Size | 2112-byte payload |
| Frame Buffers | 2K per switching ASIC |
| Classes Of Service | Class 2, Class 3, Class F (inter-switch frames) |
| Port Types | • D_Port (ClearLink® Diagnostic Port), E_Port, EX_Port, F_Port, M_Port |
| Data Traffic Types | Fabric switches supporting unicast |
| Media Types | • 64G: Brocade Secure hot-pluggable SFP-DD, SN connector; 64 Gb/s SWL. |
| USB Port | One standard USB port for firmware download, SupportSave, and configuration upload or download. |
| Fabric Services | BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Slow Drain Device Quarantine (SDDQ); Target-Driven Zoning; Traffic Optimizer; Virtual Fabrics (Logical Switch, Logical Fabric); VMID+ and AppServer. |
| Extension | Integrated optional 10G Fibre Channel for DWDM MAN connectivity |
| Management | Management |
| Security | DH-CHAP (between switches and end devices); FCAP switch authentication; HTTPS; IP filtering; LDAP with IPv6; OpenLDAP; Port Binding; RADIUS; TACACS+; user-defined Role-Based Access Control (RBAC); Secure Boot; Secure Copy (SCP); Secure Syslog; SFTP; SSH v2; SSL; Switch Binding; Trusted Switch; Trusted FOS Certificates (TruFOS); root access removed. |
| Diagnostics | Active Support Connectivity (ASC) and Brocade Support Link (BSL); built-in flow generator; ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI); flow mirroring; Forward Error Correction (FEC); frame viewer; Global Quiet Time (GQT); IO Insight for SCSI and NVMe monitoring; Monitoring and Alerting Policy Suite (MAPS); nondisruptive daemon restart; optics health monitoring; POST and embedded online/ offline diagnostics, including environmental monitoring, FCping, and Pathinfo (FC traceroute); power monitoring; RAStrace logging; Rolling Reboot Detection (RRD); Syslog/Audit Log; VM Insight. |
| Mechanical | Mechanical |
| Enclosure | • Front-to-back airflow; non-port-side exhaust; power from back, 2U |
| Support | Support |
| Warranty | Three-year customer-replaceable unit limited warranty with 9×5 next business day parts delivered. Three-year software/firmware entitlement. |
| Power | Dual, hot-swappable, redundant power supplies with integral cooling fans and status LEDs. 80 Plus Gold. |
Networking

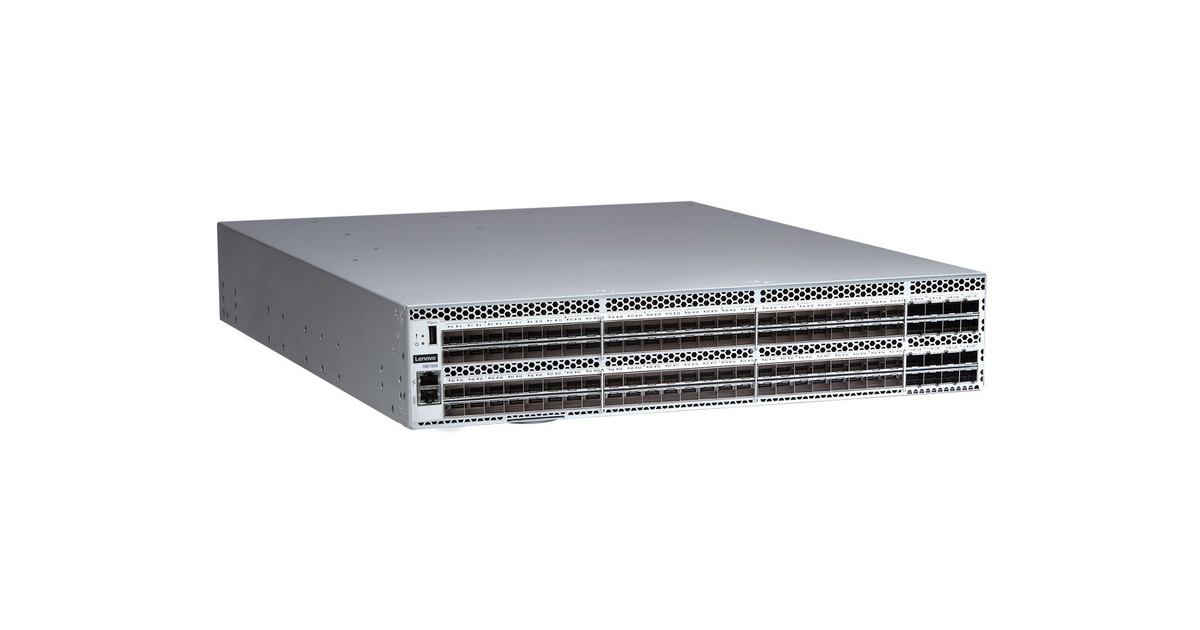

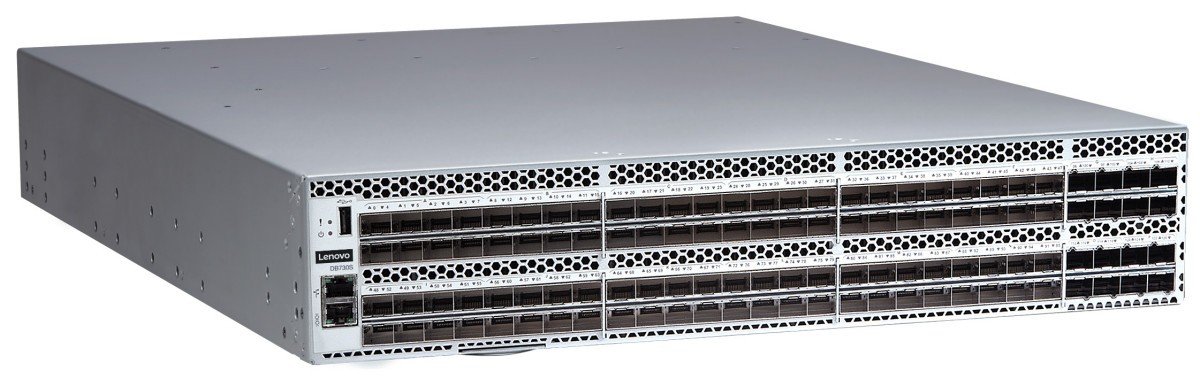

Lenovo ThinkSystem DB730S FC SAN Switch
The Lenovo ThinkSystem DB730S FC SAN Switch is a storage network switch from Lenovo, supporting 128 ports.
Overview
The Lenovo ThinkSystem DB730S FC SAN Switch is a storage network switch from Lenovo supporting 128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports.
It provides D_Port (ClearLink® Diagnostic Port), E_Port, EX_Port, F_Port, M_Port. delivering 8.192Tb/s.
Key Features
- Ports and port types: 128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports. …
- Bandwidth: 8.192Tb/s
- Management and software: Management / Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); EZSwitchSetup; HTTP/HTTPS; RESTful API; SNMP v1/v3 (FE MIB, FC Management MIB); SSH. / 10/100/1000Mb/s Ethernet (RJ-45) port, serial console port, and USB port.
- Power and cooling: Dual, hot-swappable, redundant power supplies with integral cooling fans and status LEDs. 80 Plus Gold.
Applications
- Fibre Channel SAN fabric expansion
- NVMe over Fibre Channel and all-flash storage networking
- Data center consolidation and fabric modernization
- Mission-critical storage networking with high availability
