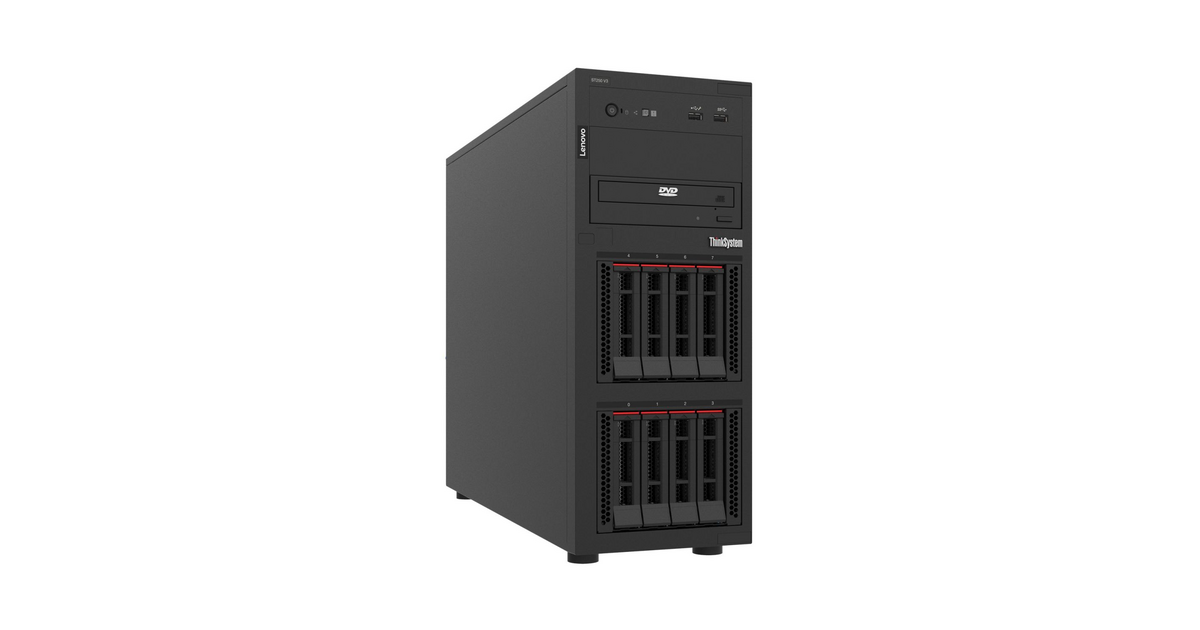

Lenovo ThinkSystem ST250 V3 Server
The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon 6300 Series processors or Intel Xeon E-24…
Description
Product overview
The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon 6300 Series processors or Intel Xeon E-2400 Series processors. This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.
Key capabilities
- Machine type: 7DCF – 1 year warranty; 7DCE – 3 year warranty

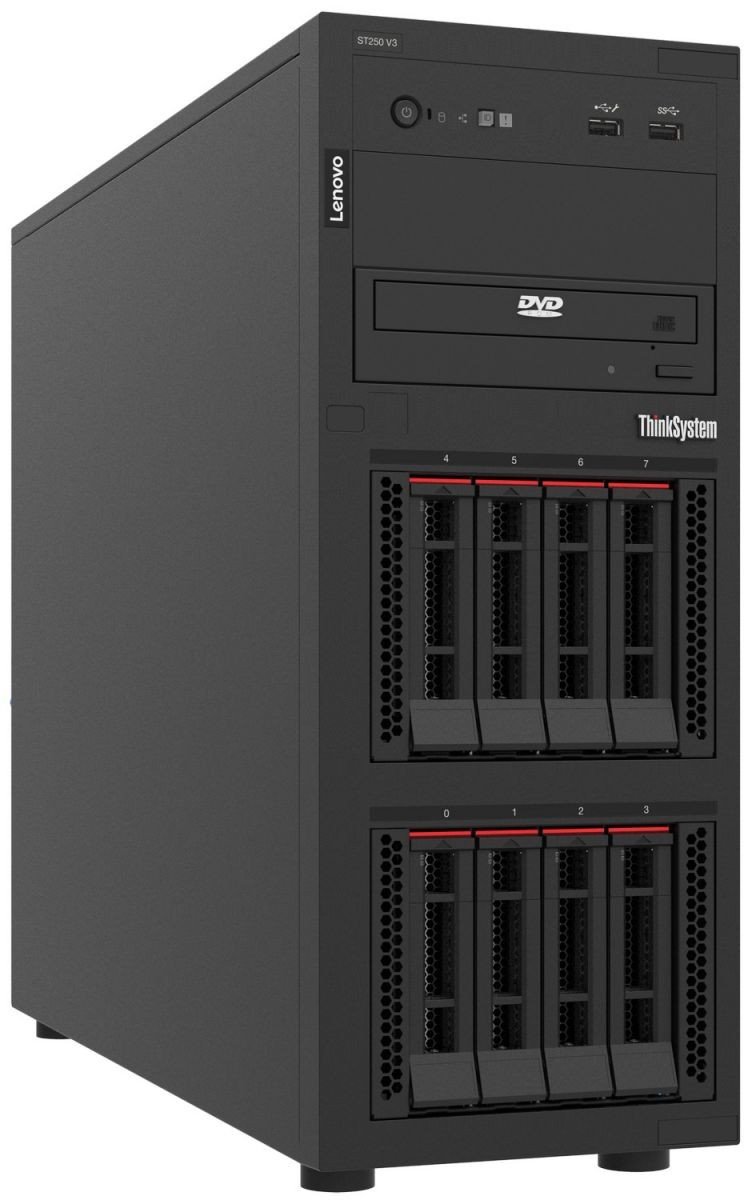

- Form factor: Tower (can be installed in a rack with the available Rack Mount Kit)
- Processor: One Intel processor. Choose from:; Intel Xeon 6300 Series processors up to to 8 cores, with core speeds up to 3.6 GHz; Intel Xeon E-2400 Series processors ("Raptor Lake-E") up to to 8 cores, with core speeds up to 3.5 GHz; Intel Pentium G7400 and G7400T processors ("Alder Lake-R") with 2 cores, with core speeds up to 3.7 GHz
- Chipset: Intel Rocket Lake PCH-S, C266
- Memory: Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs.
Technical specifications
| Machine type | 7DCF – 1 year warranty; 7DCE – 3 year warranty |
|---|---|
| Form factor | Tower (can be installed in a rack with the available Rack Mount Kit) |
| Processor | One Intel processor. Choose from:; Intel Xeon 6300 Series processors up to to 8 cores, with core speeds up to 3.6 GHz; Intel Xeon E-2400 Series processors ("Raptor Lake-E") up to to 8 cores, with core speeds up to 3.5 GHz; Intel Pentium G7400 and G7400T processors ("Alder Lake-R") with 2 cores, with core speeds up to 3.7 GHz |
| Chipset | Intel Rocket Lake PCH-S, C266 |
| Memory | Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs. |
| Memory maximum | Up to 128 GB using 4x 32 GB UDIMMs. |
| Memory protection | Error-correcting code (ECC) |

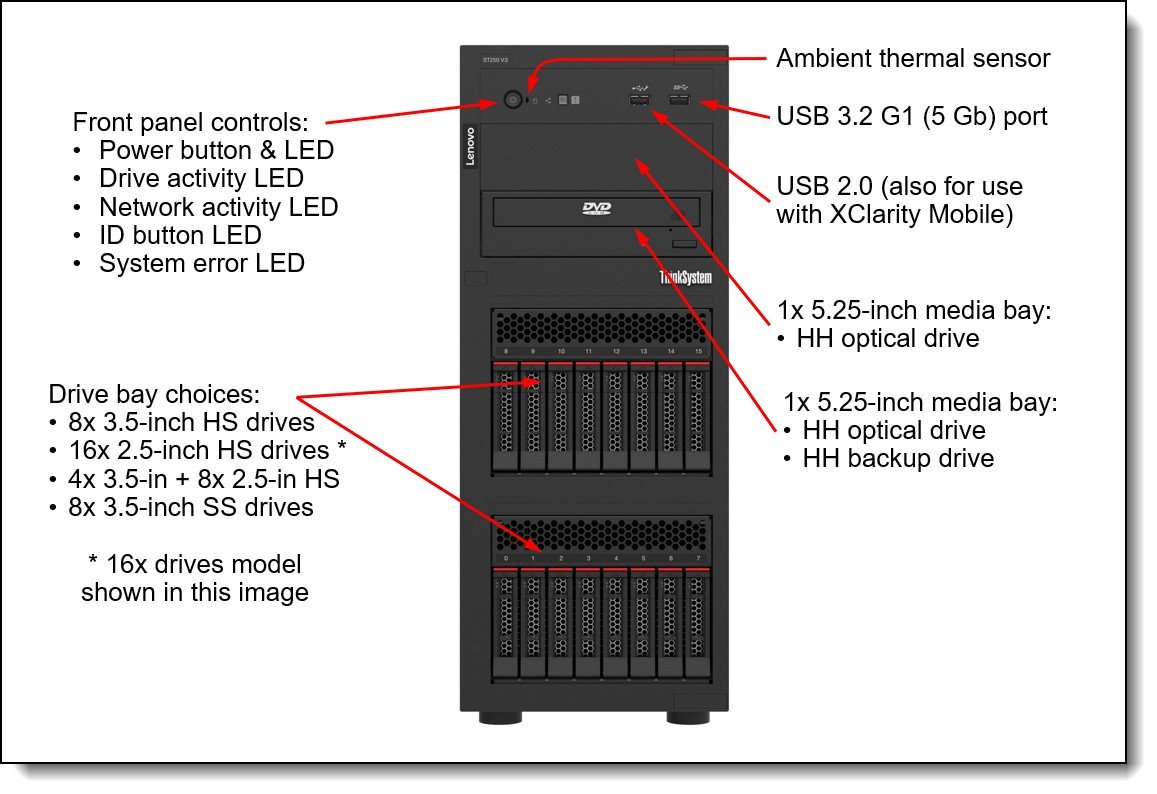

| Disk drive bays | Available configurations:; 8x or 16x 2.5-inch SAS/SATA hot-swap drive bays; 4x or 8x 3.5-inch SAS/SATA hot-swap drive bays; Both 4x 3.5-inch and 8x 2.5-inch SAS/SATA hot-swap drive bays; Up to 8x 3.5-inch simple-swap SATA drive bays; 6x 3.5-inch simple-swap SATA drive bays + 2x 3.5-inch simple-swap NVMe drive bay; In addition, the ST250 V3 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot. |
| Maximum internal storage | 2.5-inch drives: 122.88TB using 16x 7.68TB 2.5-inch SATA SSDs; 38.4TB using 16x 2.4TB 2.5-inch HS HDDs; 3.5-inch drives: 176TB using 8x 22TB 3.5-inch SAS HDDs; 176TB using 8x 22TB 3.5-inch SATA HDDs; 30.72TB using 8x 3.84TB 3.5-inch SATA SSDs; Intermix of SAS and SATA is supported. |
| Storage controller | Onboard 6 Gb SATA for simple-swap drive configurations, using Intel VROC SATA RAID, supporting RAID 0, 1, 10, 5, 50; 12 Gb SAS/SATA RAID adapters; 12 Gb SAS/SATA host bus adapters |
| Optical drive bays | Two half-height 5.25-inch bays for optical or tape drives. Supports SATA DVD-ROM or DVD-RW (multiburner). Note : If the onboard SATA controller is used to connect the drive bays, then only 6 drives can be installed if an optical drive is installed. |
| Tape drive bays | Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX drive. |
