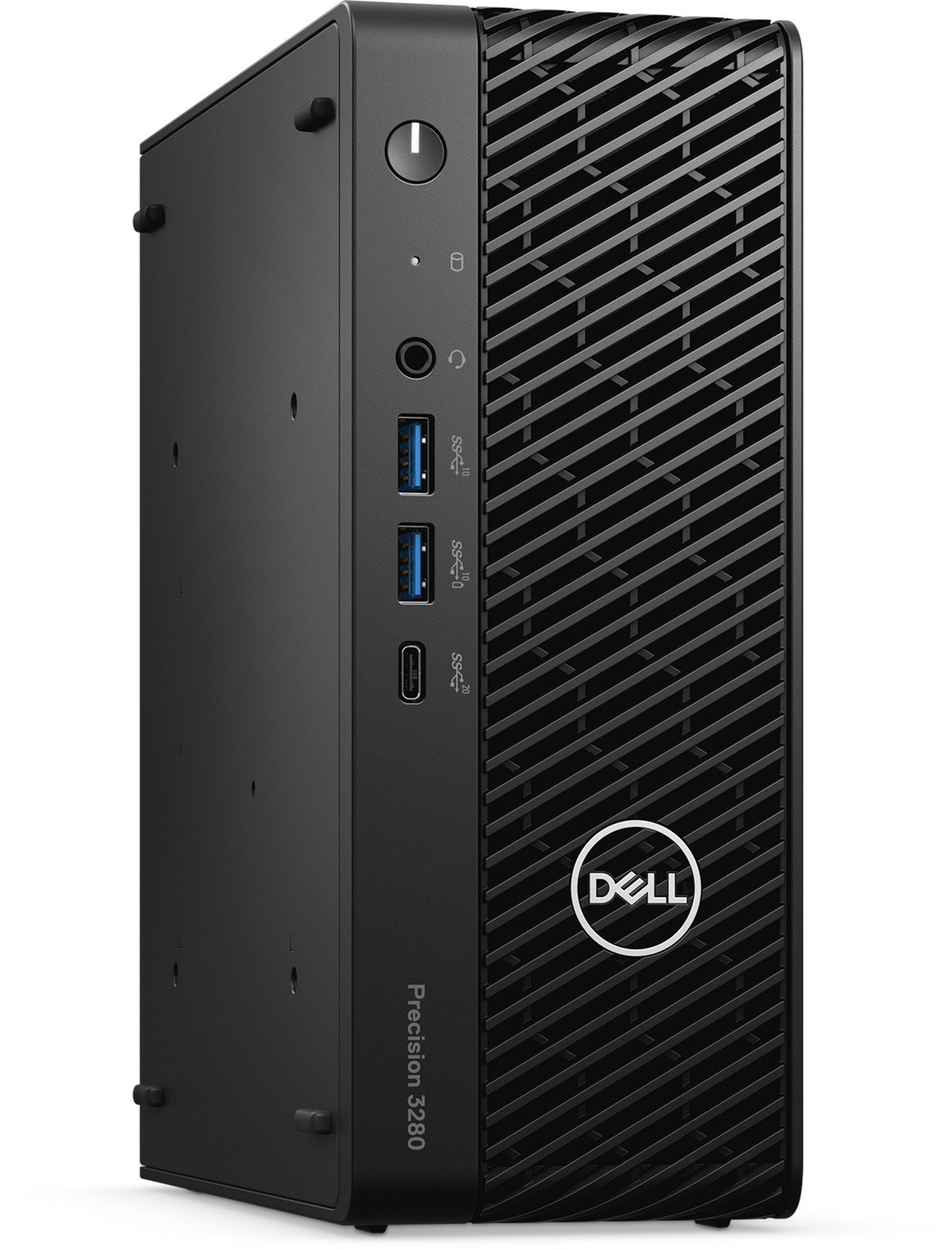

Precision 3280 Compact Workstation

Overview

The Precision 3280 Compact is the world’s smallest workstation that supports Tensor Core GPUs. In a compact form factor chassis it pairs 14th Gen Intel Core vPro processors with up to NVIDIA RTX 4000 SFF Ada graphics, up to 64 GB of DDR5 memory and up to 8 TB of RAID-capable storage, so it fits constrained workspaces, edge locations and racks where a tower will not go.

Key Features

• Form Factor: Compact Form Factor (CFF)
• Processor: Intel® Core™ i9 14th Gen 14900 vPro® (36 MB cache, 24 cores, 32 threads, 2.0 GHz to 5.8 GHz Turbo, 65W); Intel® Core™ i7 14th Gen 14700 vPro® (33 MB cache, 20 cores, 28 threads, 2.1 GHz to 5.4 GHz Turbo, 65W); Intel® Core™ i5 14th Gen 14600 vPro® (24 MB cache, 14 cores, 20 threads, 2.7 GHz to 5.2 GHz Turbo, 65W); Intel® Core™ i5 14th Gen 14500 vPro® (24 MB cache, 14 cores, 20 threads, 2.6 GHz to 5.0 GHz Turbo, 65W); Intel® Core™ i3 14th Gen 14100 (12 MB cache, 4 cores, 8 threads, 3.5 GHz to 4.7 GHz Turbo, 60W)
• Graphics: Intel® UHD Graphics 730 with 14th Gen Intel® Core™ i3-14100 processor; Intel® UHD Graphics 770 with 14th Gen Intel® Core™ i5-14400 vPro®, i5-14500 vPro®, i5-14600 vPro®, i7-14700 vPro®, i9-14900 vPro® processors; NVIDIA® RTX™ 4000 SFF Ada Generation, 20 GB GDDR6; NVIDIA® RTX™ 2000 Ada Generation, 16 GB GDDR6; NVIDIA® T1000, 8 GB GDDR6; NVIDIA® T400, 4 GB GDDR6
• Memory: 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, ECC; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, ECC, dual-channel; 32 GB: 1 x 32 GB, DDR5, 5200 MT/s, ECC; 64 GB: 2 x 32 GB, DDR5, 5200 MT/s, ECC, dual-channel; 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, Non-ECC; 16 GB: 2 x 8 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel; 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, Non-ECC; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel; 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, Non-ECC, dual-channel
• Storage: 256 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 35; 512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40; 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40; 2 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40; 512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40; 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self Encrypting Opal 2.0, Class 40; 4TB M.2 2280 Gen 4 PCIe NVMe, SSD, Class 40
• M.2 Slots: (2) M.2 2230/2280 Gen4 PCIe NVMe SSD; M.2 2230 slot for WiFi and Bluetooth card
• Expansion Slots: (2) PCIe x8 slot (x8 and x1 electrically)
• Ports: Front:; USB 3.2 Gen 2×2 (20 Gbps) Capable Type-C® port; (2) USB 3.2 Gen 2 (10 Gbps) with PowerShare ports; Universal Audio port; Rear:; RJ45 (1 GbE) Ethernet port; USB 3.2 Gen 1 (5 Gbps) port; USB 3.2 Gen 1 (5 Gbps) with Smart Power On port; (3) USB 3.2 Gen 2 (10 Gbps) ports; (3) DisplayPort 1.4a (HBR2); Optional port (HDMI 2.1/Displayport 1.4a (HBR3)/VGA/USB Type-C with DisplayPort Alt mode); Power-adapter port
• Networking: RJ45 (1 GbE) Ethernet port
• Wireless: Qualcomm® Wi-Fi 6E WCN6856-DBS, 2×2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card; Intel® Wi-Fi 6E AX211, 2×2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card
• Audio: Stereo speakers with Realtek ALC3204 Codec Audio Controller; Internal speakers
• Power Supply: 180W AC adapter, 7.4mm barrel; 280W AC adapter, 7.4mm barrel
• Operating System: Windows 11 Home; Windows 11 Pro; Windows 11 Pro National Academic; Red Hat Linux® 8.4 Enterprise; Ubuntu® Linux® 2.04 LTS, 64-bit
• Security: Dell Trusted Device; Dell SafeBIOS; Dell SafeBIOS Indicators of Attack; Dell SafeBIOS Common Vulnerabilities & Exposures (CVE) Detection; Dell SafeID; Dell Secured Component Verification; Tamper-evident packaging; Hard drive wipes; Dell SafeShutter; Intel ME Verification; Chassis intrusion switch; Kensington Security Slot™; Fingerprint reader; OPAL drive / Self-encrypting drive (SED); SPI Flash Tamper Detection Circuit; Software security: Dell SafeGuard & Response (CrowdStrike, Carbon Black, Secureworks), Dell SafeData: Absolute, Dell SafeData: Netskope, McAfee Business Protection
• System Management: Binary Large Object (BLOB) package-based solution using Microsoft Intune; Systems Management Solution to integrate with Workspace ONE; Hardware OEM systems management solution to integrate with Intel vPro®; Dell Trusted Update Experience
• Dimensions (H x W x D): Height: 8.11 in. (206 mm); Width: 3.12 in. (79.3 mm); Depth: 7.00 in. (178 mm)
• Weight: Weight (maximum): 5.59 lbs. (2.54 kg); Weight (minimum): 4.03 lbs. (1.83 kg)
• Certifications: EPEAT Climate+™: Yes; EPEAT Gold; TCO Certified, Gen 9: Yes; Energy Star 8.0: Yes; Product Safety, EMC and Environmental Datasheets; Dell Regulatory Compliance Home Page; Responsible Business Alliance Policy
• Warranty: 1Y Basic Hardware Warranty Service with Onsite Service after Remote Diagnosis; 2Y/3Y/4Y/5Y Basic Warranty Extension; 1Y-5Y ProSupport with Next Business Day Onsite service; 1Y-5Y ProSupport Plus for Client with Next Business Day Onsite service; 1-year to 5-year Accidental Damage Service

Key Highlights

• World’s smallest workstation with support for Tensor Core GPUs
• Up to NVIDIA RTX 4000 SFF Ada graphics, 64 GB DDR5 memory and up to 8 TB of RAID-capable storage
• Multiple mounting options including AIO stand, rack shelf and VESA-style mounting

Applications

• Edge and branch deployments
• AI inference at the edge
• Design and engineering in space-constrained desks
• Back-mounted and rack-shelf installs

Configuration, availability and lead time depend on the required processor, memory, graphics, storage and delivery destination. Send your requirement to receive a quotation.
