| Product SKU | PX-TOWER |
|---|---|
| Form Factor | Tower (54L) or 5U rack, optional rack rail kit needed |
| Processor | Up to two 5th or 4th Gen Intel Xeon® Scalable processors |
| Chipset | Intel® C741 chipset |
| Graphics | Supports up to four NVIDIA® RTX 6000 Ada Generation |
| Memory | Up to 2TB (16x 128GB RDIMMs and dual processor) |
| Storage | Up to seven drives (4x 3.5" SATA HDD + 3x M.2 SSD) or 9 drives (2x 3.5" SATA HDD + 7x M.2 SSD) |
| Bays | Three front disk bays and one rear disk bay; Front bay 1 supports one 3.5" hot-swap HDD, standard; Front bay 2 supports one 3.5" hot-swap HDD, standard; or two M.2 SSD via optional front access M.2 bay; Front bay 3 supports one 3.5" hot-swap HDD, standard; or two M.2 SSD via optional front access M.2 bay; Rear bay supports one 3.5" hot-swap HDD, optional, occupies 1st PSU cage |
| M.2 Slots | Up to 11x M.2 SSD; 3 via onboard slots, PCIe® 4.0 x4; 4 via front access M.2 bay, PCIe® 4.0 x4; 4 via Quad M.2 to PCIe® Gen 4 (4x M.2 PCIe® 4.0 x4) adapter |
| Expansion Slots | Supports up to 9 PCIe® slots with 4 PCIe® 5.0 slots and 5 PCIe® 4.0 slots, slots 1-5 require 2nd CPU installed |
| Ports | 1x headphone / microphone combo jack (3.5mm); 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2); 2x USB-A (Hi-Speed USB / USB 2.0); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x Ethernet (10GbE RJ-45); 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Networking | Two Ethernet, GbE + 10GbE, Intel® Ethernet Connection I219-LM and Marvell AQtion AQC-113C, 2x RJ-45, supports Wake-on-LAN |
| Wireless | Intel® Wi-Fi® 6E AX210, 802.11ax 2×2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support |
| Power Supply | 1850W / 2350W power supply (80 PLUS Platinum) |
| Operating System | Windows® 11 Pro for Workstations; Windows® 11 DG Windows® 10 Pro 64 for Workstations; Red Hat Enterprise Linux 9.2; No preload operating system |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| System Management | (Optional) Aspeed AST2600 graphics / management processor, IPMI 2.0-compliant baseboard management controller (BMC); Intel® vPro® Enterprise with Intel® AMT 16 |
| Dimensions | 220 x 575 x 440.4mm (8.7 x 22.6 x 17.3 inches, with feet) |
| Weight | 35.6 kg (78.5 lbs, maximum configuration) |
| Operating Environment | Operating: 10°C (50°F) to 35°C (95°F) |
| Certifications | (Optional) ENERGY STAR® 8.0; (Optional) EPEAT 1.0 Gold Registered; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant |
| Warranty | 1-year limited onsite service; 2-year limited onsite service; 3-year limited onsite service; No base warranty |
| Brand | Lenovo |
| Product Line | Lenovo ThinkStation |
Workstations

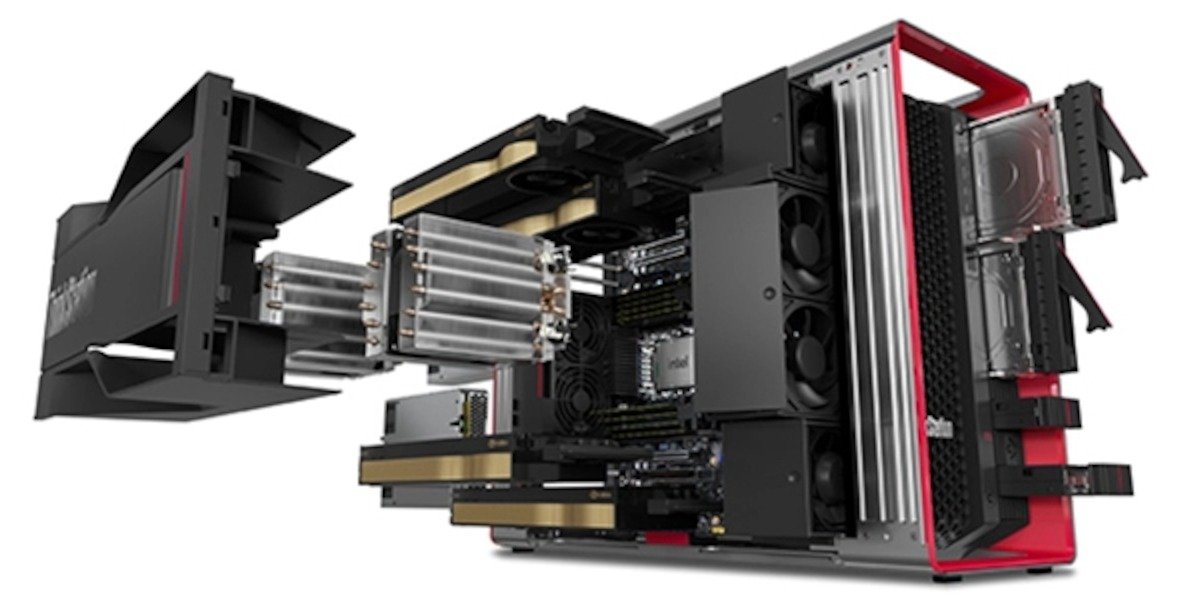

Lenovo ThinkStation PX (Intel) Tower Workstation
The Lenovo ThinkStation PX (Intel) Tower Workstation is a tower (54L) or 5U rack workstation powered by up to two 5th or 4th Gen Intel Xeon® Scalable processors, with up to four NVIDIA® RTX 6000 Ada Generation.
Overview
The Lenovo ThinkStation PX (Intel) Tower Workstation is a dual-socket tower workstation from Lenovo. The Pinnacle of Design & Engineering. It provides dual Intel Xeon Scalable processors and optional support for multiple NVIDIA RTX PRO GPUs.
Key Features
- Form Factor: Tower (54L) or 5U rack, optional rack rail kit needed
- Processor: Up to two 5th or 4th Gen Intel Xeon® Scalable processors; • Up to 128 cores (64 cores per processor); • Core speeds of up to 4.2 GHz
- Graphics: Supports up to four NVIDIA® RTX 6000 Ada Generation; Supports up to four NVIDIA® RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W)
- Memory: Up to 2TB (16x 128GB RDIMMs and dual processor); DDR5-4800 3DS-RDIMM ECC, maximum transfer speeds of up to 4800 MT/s; DDR5-4800 RDIMM ECC, maximum transfer speeds of up to 4800 MT/s
- Storage: Up to seven drives (4x 3.5″ SATA HDD + 3x M.2 SSD) or 9 drives (2x 3.5″ SATA HDD + 7x M.2 SSD)
- Expansion Slots: Supports up to 9 PCIe® slots with 4 PCIe® 5.0 slots and 5 PCIe® 4.0 slots, slots 1-5 require 2nd CPU installed
- Networking: Two Ethernet, GbE + 10GbE, Intel® Ethernet Connection I219-LM and Marvell AQtion AQC-113C, 2x RJ-45, supports Wake-on-LAN
- Power Supply: 1850W / 2350W power supply (80 PLUS Platinum)
- Operating System: Windows® 11 Pro for Workstations; Windows® 11 DG Windows® 10 Pro 64 for Workstations; Red Hat Enterprise Linux 9.2; No preload operating system
- Certifications: (Optional) ENERGY STAR® 8.0; (Optional) EPEAT 1.0 Gold Registered; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant
Applications
- CAD, BIM and 3D modelling
- AI model development and inference at the desk
- Media, video and content creation
- Engineering simulation and data science
Configuration, availability and lead time depend on the required quantity, options and delivery destination. Send your requirement to receive a quotation.
