| Product SKU | P2-TOWER-G2 |
|---|---|
| Form Factor | Tower (17L) |
| Processor | Up to one 125W Intel Core™ Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz |
| Chipset | Intel® W880 chipset |
| Graphics | Supports up to one NVIDIA® RTX PRO 4000 Blackwell; or up to two NVIDIA® RTX 2000 Ada Generation |
| Memory | Up to 128GB (4x 32GB DDR5 UDIMM) |
| Storage | Up to 2x 3.5" SATA HDD; also supports up to 4x M.2 SSD (3 by onboard, 1 by M.2 to PCIe® adapter) |
| Bays | Three internal disk bays, up to two 3.5" bays plus one 2.5" bay; Bay 1 supports one 3.5" HDD, standard; or one 2.5" HDD / SSD, optional; Bay 2 supports one 3.5" HDD or 2.5" HDD / SSD, optional; Bay 3 supports one 2.5" HDD / SSD, optional; Front Access HDD Bay supports one 3.5" HDD or 2.5" HDD / SSD, optional, occupies Bay 2 location |
| M.2 Slots | One M.2 slot (for WLAN); Up to 4x M.2 slots for M.2 SSD; 2 onboard M.2 PCIe® 4.0 slots; 1 onboard M.2 PCIe® 5.0 slot; 1 via Single M.2 to PCIe® adapter, running on PCIe® 3.0 protocol |
| Expansion Slots | Supports four PCIe® slots with one PCIe® 5.0 x16, one PCIe® 4.0 x16, and two PCIe® 3.0 x1 |
| Ports | 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 2x USB-A (Hi-Speed USB / USB 2.0); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI® 2.1 TMDS; 2x DisplayPort™ 1.4; 1x Ethernet (GbE RJ-45); 1x line-out (3.5mm) |
| Networking | Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN |
| Wireless | Intel® Wi-Fi® 7 BE200, 802.11be 2×2 Wi-Fi® + Bluetooth® 5.4, Intel® vPro® technology support |
| Power Supply | 500W / 750W power supply (80 PLUS Platinum) |
| Operating System | Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Ubuntu Linux LTS; Red Hat Enterprise Linux 10; No preload operating system |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| System Management | (Optional) Intel® vPro® Enterprise with Intel® AMT 16; Non-vPro® |
| Dimensions | 170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches, with feet) |
| Weight | 9.67 kg (21.32 lbs, maximum configuration) |
| Operating Environment | Operating: 10°C (50°F) to 35°C (95°F) |
| Certifications | (Optional) ENERGY STAR® 9.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant; TCO Certified, generation 10 |
| Warranty | 1-year limited onsite service; 2-year limited onsite service; 3-year limited onsite service; No base warranty |
| Brand | Lenovo |
| Product Line | Lenovo ThinkStation |
Workstations

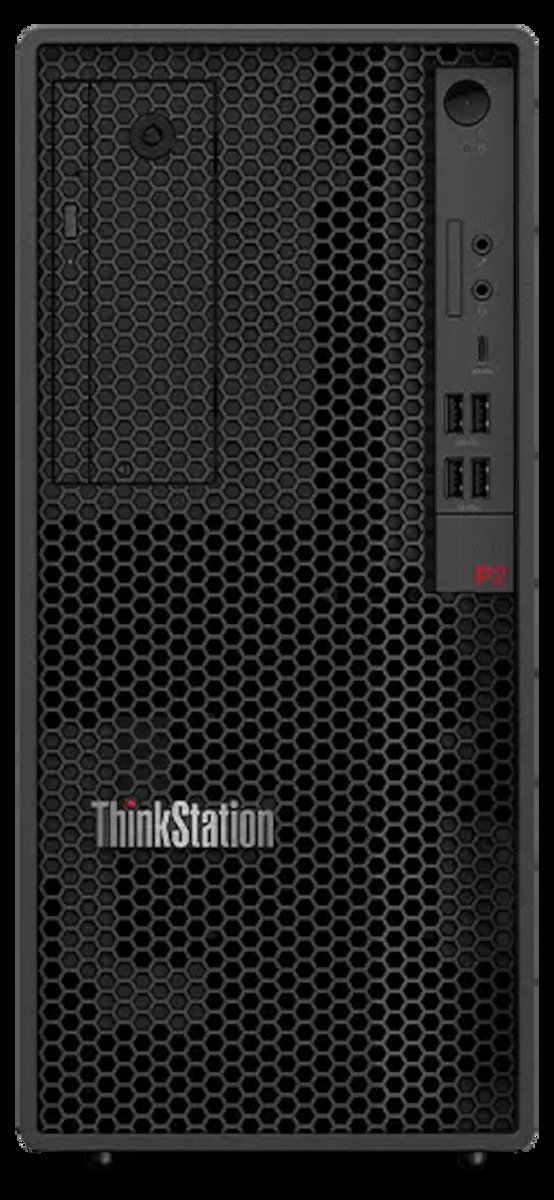

Lenovo ThinkStation P2 Tower Gen 2 (Intel) Workstation
The Lenovo ThinkStation P2 Tower Gen 2 (Intel) Workstation is a tower (17L) workstation powered by up to one 125W Intel Core™ Ultra (Series 2) processor, with up to one NVIDIA® RTX PRO 4000 Blackwell.
Overview
The Lenovo ThinkStation P2 Tower Gen 2 (Intel) Workstation is a tower entry-level workstation from Lenovo. Setting the Standard for Entry-Level Workstations. It provides up to Intel Core Ultra 9 (Series 2) with Intel vPro and up to 64GB DDR5 5600MT/s.
Key Features
- Form Factor: Tower (17L)
- Processor: Up to one 125W Intel Core™ Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz
- Graphics: Supports up to one NVIDIA® RTX PRO 4000 Blackwell; or up to two NVIDIA® RTX 2000 Ada Generation
- Memory: Up to 128GB (4x 32GB DDR5 UDIMM); DDR5-5600 UDIMM, ECC or non-ECC, maximum transfer speeds of up to 5600 MT/s; Four DDR5 UDIMM slots, dual-channel capable
- Storage: Up to 2x 3.5″ SATA HDD; also supports up to 4x M.2 SSD (3 by onboard, 1 by M.2 to PCIe® adapter)
- Expansion Slots: Supports four PCIe® slots with one PCIe® 5.0 x16, one PCIe® 4.0 x16, and two PCIe® 3.0 x1
- Networking: Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
- Power Supply: 500W / 750W power supply (80 PLUS Platinum)
- Operating System: Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Ubuntu Linux LTS; Red Hat Enterprise Linux 10; No preload operating system
- Certifications: (Optional) ENERGY STAR® 9.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant; TCO Certified, generation 10
Applications
- CAD, BIM and 3D modelling
- AI model development and inference at the desk
- Media, video and content creation
- Engineering simulation and data science
Configuration, availability and lead time depend on the required quantity, options and delivery destination. Send your requirement to receive a quotation.
