| Switching Capacity | 952/2876 Tbps |
|---|---|
| Packet Forwarding Rate | 230400 Mpps |
| Interoperability | VBST VLAN-based Spanning Tree Protocol (interoperable with PVST/PVST+/RPVST); LNP Link-type Negotiation Protocol (similar to DTP); VCMP VLAN Central Management Protocol (similar to VTP); For detailed interoperability certifications and reports, please visit here. |
| MAC Features | Supports automatic MAC address learning and aging; Supports static, dynamic and blackhole MAC entries; Supports source MAC address filtering; Supports port-based and VLAN-based MAC address learning limits |
| System Power | 4 |
| Main Control Board Slots | 2 |
| Switch Fabric Board Slots* | 6 |
| Service Board Slots | 4 |
| Fan Module Quantity** | 3 |
| Monitoring Slots | 2 |
| PoE Capability | Supported |
| Native-IP IFIT (iPCA 2.0) | Supports direct marking of service packets for real-time statistics on packet loss count and rate; Supports bidirectional packet latency statistics; Supports configurable statistics intervals |
| Security and Management | Supports MACsec; Supports NAC; Supports protection against DoS attacks, TCP SYN Flood, UDP Flood, broadcast storm and high-volume traffic attacks; Supports IPv6 RA Guard; Supports CPU hardware queues for hierarchical scheduling and protection of control-plane protocol packets; Supports secure boot |
| Reliability | Supports M-LAG; Supports clustering; Supports VRRP and BFD for VRRP; Supports BFD for BGP/IS-IS/OSPF/static routing; Supports 1588v2 |
Overview

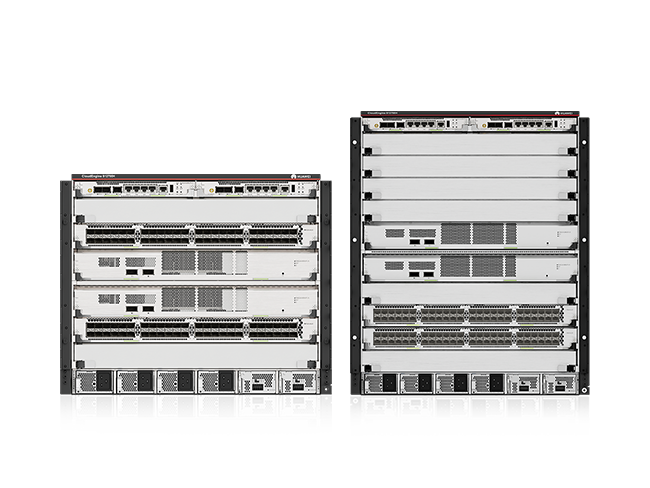

The CloudEngine S12700H-4 is an enterprise data-center Ethernet switch, 952/2876 Tbps switching capacity and 230400 Mpps of packet forwarding. It is intended for enterprise and data-center network deployments.
At a glance
- Switching Capacity: 952/2876 Tbps
- Packet Forwarding Rate: 230400 Mpps
- Interoperability: VBST VLAN-based Spanning Tree Protocol (interoperable with PVST/PVST+/RPVST); LNP Link-type Negotiation Protocol (similar to DTP); VCMP VLAN Central Management Protocol (similar to VTP); For detailed interoperability certifications and reports, please visit here.
- MAC Features: Supports automatic MAC address learning and aging; Supports static, dynamic and blackhole MAC entries; Supports source MAC address filtering; Supports port-based and VLAN-based MAC address learning limits
- System Power: 4
- Main Control Board Slots: 2
- Switch Fabric Board Slots*: 6
- Service Board Slots: 4
- Fan Module Quantity**: 3
- Monitoring Slots: 2
- PoE Capability: Supported
- Native-IP IFIT (iPCA 2.0): Supports direct marking of service packets for real-time statistics on packet loss count and rate; Supports bidirectional packet latency statistics; Supports configurable statistics intervals
- Security and Management: Supports MACsec; Supports NAC; Supports protection against DoS attacks, TCP SYN Flood, UDP Flood, broadcast storm and high-volume traffic attacks; Supports IPv6 RA Guard; Supports CPU hardware queues for hierarchical scheduling and protection of control-plane protocol packets; Supports secure boot
- Reliability: Supports M-LAG; Supports clustering; Supports VRRP and BFD for VRRP; Supports BFD for BGP/IS-IS/OSPF/static routing; Supports 1588v2
When to choose this data-center Ethernet switch
Choose this data-center Ethernet switch where the deployment needs the listed interface mix with 952/2876 Tbps of capacity.
Platform & compatibility
Supplied as a complete network platform. Confirm the software version, optics/transceivers and power options for your network before ordering.
Deployment notes
The CloudEngine S12700H-4 is supplied as configured hardware; software version and optics are selected at order time. Send the required port mix, software licences and optics for a firm configuration and quote.
FAQ
What is its capacity? 952/2876 Tbps.
What is the packet forwarding rate? 230400 Mpps.
How do I get pricing? Send the required configuration; quotes depend on quantity, software and destination.
Related
Configuration, availability and lead time depend on the required quantity, software version and delivery destination. Send your requirement to receive a quotation.
