| Switching Capacity | 1085/3494 Tbps |
|---|---|
| Packet Forwarding Rate | 259200 Mpps |
| VXLAN Features | Supports VXLAN Layer 2 gateway and Layer 3 gateway; Supports centralized gateway and distributed gateway; Supports BGP-EVPN; Supports configuration via NETCONF |
| iPCA Quality Awareness | Supports direct marking of service packets for real-time statistics on packet loss count and rate; Supports network-level and device-level packet loss count and rate statistics for Layer 2 and Layer 3 networks |
| Interoperability | VBST VLAN-based Spanning Tree Protocol (interoperable with PVST/PVST+/RPVST); LNP Link-type Negotiation Protocol (similar to DTP); VCMP VLAN Central Management Protocol (similar to VTP) |
| Main Control Board Slots | 2 |
| Service Board Slots | 4 |
| Fan Slots | 3 |
| Reliability | Supports LACP; Supports VRRP and BFD for VRRP; Supports BFD for BGP/IS-IS/OSPF/static routing; Supports Eth-OAM 802.3ah and 802.1ag; Supports SmartLink |
| Switch Fabric Board Slots | 9 |
Overview

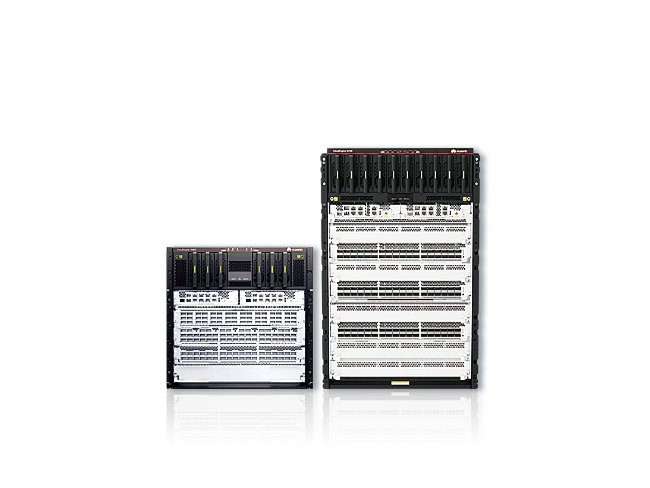

The CloudEngine S16700-4 is an enterprise data-center Ethernet switch, 1085/3494 Tbps switching capacity and 259200 Mpps of packet forwarding. It is intended for enterprise and data-center network deployments.
At a glance
- Switching Capacity: 1085/3494 Tbps
- Packet Forwarding Rate: 259200 Mpps
- VXLAN Features: Supports VXLAN Layer 2 gateway and Layer 3 gateway; Supports centralized gateway and distributed gateway; Supports BGP-EVPN; Supports configuration via NETCONF
- iPCA Quality Awareness: Supports direct marking of service packets for real-time statistics on packet loss count and rate; Supports network-level and device-level packet loss count and rate statistics for Layer 2 and Layer 3 networks
- Interoperability: VBST VLAN-based Spanning Tree Protocol (interoperable with PVST/PVST+/RPVST); LNP Link-type Negotiation Protocol (similar to DTP); VCMP VLAN Central Management Protocol (similar to VTP)
- Main Control Board Slots: 2
- Service Board Slots: 4
- Fan Slots: 3
- Reliability: Supports LACP; Supports VRRP and BFD for VRRP; Supports BFD for BGP/IS-IS/OSPF/static routing; Supports Eth-OAM 802.3ah and 802.1ag; Supports SmartLink
- Switch Fabric Board Slots: 9
When to choose this data-center Ethernet switch
Choose this data-center Ethernet switch where the deployment needs the listed interface mix with 1085/3494 Tbps of capacity.
Platform & compatibility
Supports features Supports VXLAN Layer 2 gateway and Layer 3 gateway; Supports centralized gateway and distributed gateway; Supports BGP-EVPN;…. Confirm the software version, optics/transceivers and power options for your network before ordering.
Deployment notes
The CloudEngine S16700-4 is supplied as configured hardware; software version and optics are selected at order time. Send the required port mix, software licences and optics for a firm configuration and quote.
FAQ
What is its capacity? 1085/3494 Tbps.
What is the packet forwarding rate? 259200 Mpps.
How do I get pricing? Send the required configuration; quotes depend on quantity, software and destination.
Related
Configuration, availability and lead time depend on the required quantity, software version and delivery destination. Send your requirement to receive a quotation.
