| System Cache | • Supports 32*DDR5 (32G/64G); • Maximum memory transfer rate 5200 MT/s, 4800 MT/s |
|---|---|
| Controller / Processor | Supports 2-way processors; Supported processor models:; • Kunpeng 920 7260Y (64 Core, 2.2GHz); • Kunpeng 920 5250Y (48 Core, 2.2GHz); • Kunpeng 920 7270Z (64 Core, 2.9GHz); • Kunpeng 920 7280Z (80 Core, 2.9GHz) |
| Front-End Ports / Network Ports | Supports a variety of network expansion capabilities; • On-board 2*GE electrical ports, 2*10GE optical ports; • Flexible I/O card: supports 1 flexible subcard with 4*GE electrical ports (supported on 12*SAS/8*SAS models) |
| Drive / Media Type | Supports a variety of drive configurations; • 25*NVMe; • 12*SAS/SATA, with 4*NVMe at the rear; • 8*SAS (compatible with 8*NVMe) |
| Chassis Size / Height | 3.5-inch drive chassis: 86.1 mm (2U) × 447 mm × 825 mm; 2.5-inch drive chassis: 86.1 mm (2U) × 447 mm × 776 mm |
| Interfaces | • Front panel: 2 x USB 3.0 ports, 1 x VGA port, 1 x USB Type-C port; • Rear panel: 2 x USB 3.0 ports, 1 x VGA port, 1 x RJ45 debug serial port, 1 x RJ45 management port |
| Power Supply | 1+1 redundancy, supports 2000W AC (voltage range 90V AC~290V AC, input frequency range 45Hz~65Hz) |
| Fans | 4 fan modules, supports single-fan failure |
| I/O Expansion | Up to 8 PCIe interfaces, all standard PCIe expansion slots; • Up to 7 full-height half-length PCIe cards; • Up to 5 full-height full-length PCIe cards; • Supports Atlas 300I Duo / 300i Pro / 300V / 300V Pro / 300I A2; • Note: the number of supported cards and drives varies by configuration |
| Key Software Features | Key Software Features |
| VM Management: create VMs, manage VM templates, migrate VMs | VM Management: create VMs, manage VM templates, migrate VMs |
| Storage Management: disk management, storage pool management | Storage Management: disk management, storage pool management |
| O&M Monitoring: status monitoring, alarm monitoring, performance monitoring, system health checks | O&M Monitoring: status monitoring, alarm monitoring, performance monitoring, system health checks |
| Performance Monitoring: IOPS, IO bandwidth, IO latency, CPU usage, memory usage, NIC rate | Performance Monitoring: IOPS, IO bandwidth, IO latency, CPU usage, memory usage, NIC rate |
| Log Audit: operation logs, system logs, security logs | Log Audit: operation logs, system logs, security logs |
| System O&M: one-click capacity expansion, one-click log collection, one-click health checks | System O&M: one-click capacity expansion, one-click log collection, one-click health checks |
| System Log Collection: unified log collection for system servers, system OS, distributed storage and management systems; maximum log collection interval 2 days, up to 5 concurrent node collections | System Log Collection: unified log collection for system servers, system OS, distributed storage and management systems;; maximum log collection interval 2 days, up to 5 concurrent node collections |
| System Upgrade: online upgrade of MetaVision management software | System Upgrade: online upgrade of MetaVision management software |
| System Management Data Backup: scheduled backup of management data for distributed storage and management systems, ensuring rapid recovery after a system failure | System Management Data Backup: scheduled backup of management data for distributed storage and management systems, ensuring rapid recovery after a system failure |
| System Health Inspection: health checks for system servers, system OS, distributed storage and management systems, identifying risks and anomalies, with scheduled inspections | System Health Inspection: health checks for system servers, system OS, distributed storage and management systems, identifying risks and anomalies, with scheduled inspections |

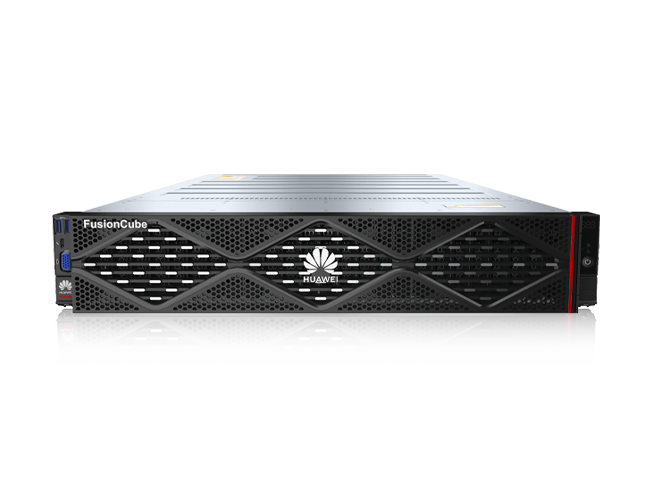

FusionCube 1000H-D2 (DPE60100)
• Front panel: 2 x USB 3.0 ports, 1 x VGA port, 1 x USB Type-C port Supports a variety of drive configurations. RFQ — quotation on request.
Overview
The FusionCube 1000H-D2 (DPE60100) is an enterprise server in a 2U chassis, configured for virtualisation, databases and general enterprise workloads. Its processor, memory, storage, networking and expansion options are summarised below.
At a glance
- System Cache: Supports 32*DDR5 (32G/64G); Maximum memory transfer rate 5200 MT/s, 4800 MT/s
- Controller / Processor: Supports 2-way processors; Supported processor models:; Kunpeng 920 7260Y (64 Core, 2.2GHz); Kunpeng 920 5250Y (48 Core, 2.2GHz); Kunpeng 920 7270Z (64 Core, 2.9GHz); Kunpeng 920 7280Z (80 Core, 2.9GHz)
- Front-End Ports / Network Ports: Supports a variety of network expansion capabilities; On-board 2*GE electrical ports, 2*10GE optical ports; Flexible I/O card: supports 1 flexible subcard with 4*GE electrical ports (supported on 12*SAS/8*SAS models)
- Drive / Media Type: Supports a variety of drive configurations; 25*NVMe; 12*SAS/SATA, with 4*NVMe at the rear; 8*SAS (compatible with 8*NVMe)
- Chassis Size / Height: 3.5-inch drive chassis: 86.1 mm (2U) × 447 mm × 825 mm; 2.5-inch drive chassis: 86.1 mm (2U) × 447 mm × 776 mm
- Interfaces: Front panel: 2 x USB 3.0 ports, 1 x VGA port, 1 x USB Type-C port; Rear panel: 2 x USB 3.0 ports, 1 x VGA port, 1 x RJ45 debug serial port, 1 x RJ45 management port
- Power Supply: 1+1 redundancy, supports 2000W AC (voltage range 90V AC~290V AC, input frequency range 45Hz~65Hz)
- Fans: 4 fan modules, supports single-fan failure
- I/O Expansion: Up to 8 PCIe interfaces, all standard PCIe expansion slots; Up to 7 full-height half-length PCIe cards; Up to 5 full-height full-length PCIe cards; Supports Atlas 300I Duo / 300i Pro / 300V / 300V Pro / 300I A2; Note: the number of supported cards and drives varies by configuration
- Key Software Features: Key Software Features
- VM Management: create VMs, manage VM templates, migrate VMs: VM Management: create VMs, manage VM templates, migrate VMs
- Storage Management: disk management, storage pool management: Storage Management: disk management, storage pool management
- O&M Monitoring: status monitoring, alarm monitoring, performance monitoring, system health checks: O&M Monitoring: status monitoring, alarm monitoring, performance monitoring, system health checks
- Performance Monitoring: IOPS, IO bandwidth, IO latency, CPU usage, memory usage, NIC rate: Performance Monitoring: IOPS, IO bandwidth, IO latency, CPU usage, memory usage, NIC rate
- Log Audit: operation logs, system logs, security logs: Log Audit: operation logs, system logs, security logs
- System O&M: one-click capacity expansion, one-click log collection, one-click health checks: System O&M: one-click capacity expansion, one-click log collection, one-click health checks
- System Log Collection: unified log collection for system servers, system OS, distributed storage and management systems; maximum log collection interval 2 days, up to 5 concurrent node collections: System Log Collection: unified log collection for system servers, system OS, distributed storage and management systems; maximum log collection interval 2 days, up to 5 concurrent node collections
- System Upgrade: online upgrade of MetaVision management software: System Upgrade: online upgrade of MetaVision management software
- System Management Data Backup: scheduled backup of management data for distributed storage and management systems, ensuring rapid recovery after a system failure: System Management Data Backup: scheduled backup of management data for distributed storage and management systems, ensuring rapid recovery after a system failure
- System Health Inspection: health checks for system servers, system OS, distributed storage and management systems, identifying risks and anomalies, with scheduled inspections: System Health Inspection: health checks for system servers, system OS, distributed storage and management systems, identifying risks and anomalies, with scheduled inspections
When to choose this server
Choose this platform where the deployment needs virtualisation, databases and general enterprise workloads. It uses a 2U chassis and 1+1 redundancy, supports 2000W AC (voltage range 90V AC~290V AC, input… power; local storage options include Supports a variety of drive configurations; 25*NVMe; 12*SAS/SATA, with 4*NVMe at the….
Platform & compatibility
Supports processors: Supports 2-way processors; Supported processor models:; Kunpeng 920 7260Y (64 Core, 2.2GHz); Kunpeng 920 5250Y (48 Core, 2.2GHz); Kunpeng…, memory: Supports 32*DDR5 (32G/64G); Maximum memory transfer rate 5200 MT/s, 4800 MT/s, network: Supports a variety of network expansion capabilities; On-board 2*GE electrical ports, 2*10GE optical ports; Flexible I/O card: supports 1…. Confirm the CPU, memory, drive and PSU configuration, plus rack rails, against your workload and rack before ordering.
Deployment notes
The FusionCube 1000H-D2 (DPE60100) is supplied as a configured platform; CPU, memory, storage and PSU are chosen at order time. power: 1+1 redundancy, supports 2000W AC (voltage range 90V AC~290V AC, input frequency range…. network: Supports a variety of network expansion capabilities; On-board 2*GE electrical ports, 2*10GE optical ports;…. Rack rails, power distribution and cooling follow the 2U chassis class and are confirmed at order time. Send the required CPU, memory and drive mix for a firm configuration and quote.
FAQ
What processors does it support? Supports 2-way processors; Supported processor models:; Kunpeng 920 7260Y (64 Core, 2.2GHz); Kunpeng 920 5250Y (48 Core, 2.2GHz); Kunpeng 920 7270Z (64 Core, 2.9GHz); Kunpeng 920 7280Z (80 Core, 2.9GHz).
What memory does it take? Supports 32*DDR5 (32G/64G); Maximum memory transfer rate 5200 MT/s, 4800 MT/s.
What drives does it accept? Supports a variety of drive configurations; 25*NVMe; 12*SAS/SATA, with 4*NVMe at the rear; 8*SAS (compatible with 8*NVMe).
How do I get pricing? Send the required configuration; quotes depend on quantity, options and delivery destination.
