| System Cache | 512GB (32GB*16) DDR4, 3200MHz |
|---|---|
| Controller / Processor | 2 x 64-core Kunpeng 920 processors, 2.6 GHz |
| Front-End Ports / Network Ports | 4*GE electrical ports + 4*10GE optical ports |
| Power Consumption | Typical power consumption 1025W; maximum 1215W |
| Power Supply | 2 hot-swappable 2000W AC power modules with 1+1 redundancy; Input voltage: 100 – 240V AC, 50/60Hz |
| Form Factor | 2U dual-socket rack |
| System Disk | 2 x 960GB / 2 x 1.92TB SAS SSD optional |
| Service Data Disk | 8 x 3.84T SSD + 2 x 10TB SATA HDD |
| AI Acceleration Unit | Up to 6 x AI compute cards |
| Operating System | EulerOS |
| Database | GaussDB |
| Service Functions | Target, vehicle and human/vehicle/non-motorized-object recognition; full structured analytics of video and images; feature-value retrieval; view gateway GA1400 protocol integration |
| Maximum Video Analytics Performance | Target feature extraction: 600 channels/unit (1080P); Vehicle feature extraction: 432 channels/unit (1080P); Full structured feature extraction: 480 channels/unit (1080P) |
| Maximum Image Analytics Performance | Target feature extraction: 1536 images/s per unit (1080P); Vehicle feature extraction: 1536 images/s per unit (1080P); *Not concurrent with video performance |
| Maximum Retrieval Performance | Dynamic library feature-value data capacity: 2 billion entries; structured data capacity: 4 billion entries; Static library capacity: up to 1.8 billion in a cluster |
| Northbound Integration | Supports integration with upper-layer video management platforms via RESTful APIs |
| Environmental Requirements | Operating temperature: 5 to 35°C; storage temperature: -40°C to +65°C; Operating humidity: 8% to 90%, non-condensing; storage humidity: 5% to 95%, non-condensing |
| Fans | Supports 4 hot-swappable fan modules with N+1 redundancy |
| Dimensions (W x D x H) | 447 mm x 790 mm x 86.1 mm |

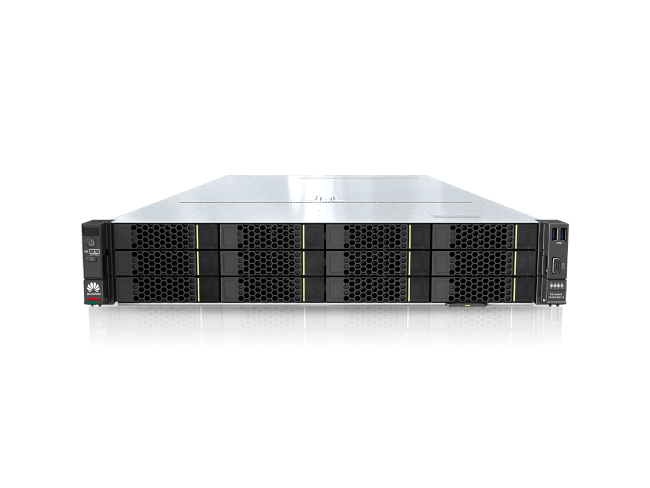

Huawei OceanStor IVS3800AC V2
2U dual-socket rack. RFQ — quotation on request.
Overview
The Huawei OceanStor IVS3800AC V2 is an enterprise enterprise storage system in a 2U dual-socket rack with 512GB (32GB*16) DDR4, 3200MHz of cache and 2 x 64-core Kunpeng 920 processors, 2.6 GHz. It is built for enterprise enterprise storage system workloads.
At a glance
- System Cache: 512GB (32GB*16) DDR4, 3200MHz
- Controller / Processor: 2 x 64-core Kunpeng 920 processors, 2.6 GHz
- Front-End Ports / Network Ports: 4*GE electrical ports + 4*10GE optical ports
- Power Consumption: Typical power consumption 1025W; maximum 1215W
- Power Supply: 2 hot-swappable 2000W AC power modules with 1+1 redundancy; Input voltage: 100 – 240V AC, 50/60Hz
- Form Factor: 2U dual-socket rack
- System Disk: 2 x 960GB / 2 x 1.92TB SAS SSD optional
- Service Data Disk: 8 x 3.84T SSD + 2 x 10TB SATA HDD
- AI Acceleration Unit: Up to 6 x AI compute cards
- Operating System: EulerOS
- Database: GaussDB
- Service Functions: Target, vehicle and human/vehicle/non-motorized-object recognition; full structured analytics of video and images; feature-value retrieval; view gateway GA1400 protocol integration
- Maximum Video Analytics Performance: Target feature extraction: 600 channels/unit (1080P); Vehicle feature extraction: 432 channels/unit (1080P); Full structured feature extraction: 480 channels/unit (1080P)
- Maximum Image Analytics Performance: Target feature extraction: 1536 images/s per unit (1080P); Vehicle feature extraction: 1536 images/s per unit (1080P); *Not concurrent with video performance
- Maximum Retrieval Performance: Dynamic library feature-value data capacity: 2 billion entries; structured data capacity: 4 billion entries; Static library capacity: up to 1.8 billion in a cluster
- Northbound Integration: Supports integration with upper-layer video management platforms via RESTful APIs
- Environmental Requirements: Operating temperature: 5 to 35°C; storage temperature: -40°C to +65°C; Operating humidity: 8% to 90%, non-condensing; storage humidity: 5% to 95%, non-condensing
- Fans: Supports 4 hot-swappable fan modules with N+1 redundancy
- Dimensions (W x D x H): 447 mm x 790 mm x 86.1 mm
When to choose this storage system
Choose it for enterprise enterprise storage system workloads. with 4*GE electrical ports + 4*10GE optical ports.
Reading the specifications
capacity and controller count set the usable scale and performance headroom; cache (with battery/flash protection) buffers write bursts and random I/O; front-end and back-end connectivity determine host bandwidth and expansion.
Platform & compatibility
Supports connectivity: 4*GE electrical ports + 4*10GE optical ports. Confirm the host protocols, capacity and controller configuration for your environment before ordering.
Deployment notes
The Huawei OceanStor IVS3800AC V2 is supplied as a configured system; capacity, controllers and licensing are selected at order time. power: 2 hot-swappable 2000W AC power modules with 1+1 redundancy; Input voltage: 100 – 240V AC,…. Availability, firmware and licensing are confirmed against the current release at order time. Send the required capacity, protocol and performance target for a firm configuration and quote.
FAQ
What cache does it have? 512GB (32GB*16) DDR4, 3200MHz.
How do I get pricing? Send the required capacity and topology; quotes depend on quantity, options and destination.
