| System Cache | 256GB (32GB*8) DDR4, 3200MHz |
|---|---|
| Controller / Processor | 2 x 64-core Kunpeng 920 processors, 2.6 GHz |
| Front-End Ports / Network Ports | 4*GE electrical ports + 4*10GE optical ports |
| Power Consumption | Typical power consumption 1195W; maximum 1405W |
| Power Supply | 2 hot-swappable 2000W AC power modules with 1+1 redundancy; Input voltage: 100 – 240V AC, 50/60Hz |
| Form Factor | 4U dual-socket rack |
| System Disk | 2 x 960GB / 2 x 1.92TB SSD SAS |
| Service Data Disk | 2 x 960GB / 2 x 1.92TB SAS SSD optional |
| AI Acceleration Unit | Up to 4 AI compute cards |
| Operating System | EulerOS |
| Database | GaussDB |
| Maximum Image Analytics Performance | Target/vehicle feature extraction: 300 images/s per unit (1080P) *Not concurrent with video performance |
| Northbound Integration | Supports integration with multiple video management platforms via RESTful APIs |
| Environmental Requirements | Operating temperature: 5 to 35°C; storage temperature: -40°C to +65°C; Operating humidity: 8% to 90%, non-condensing; storage humidity: 5% to 95%, non-condensing |
| Fans | Supports 4 hot-swappable fan modules with N+1 redundancy |
| Dimensions (W x D x H) | 447 mm x 790 mm x 175 mm |
| Video and Image Storage | Up to 34 x 8TB/10TB/16TB/20TB SATA |
| Management Functions | Video and image management software is containerized; storage, forwarding, analytics and retrieval services are deployed on demand |
| Encoding Standards | H.264, H.265, MJPEG and other formats |
| Network Protocols | TCP,UDP,IPv4,IPV6,HTTP, HTTPS,RTP,RTSP,RTCP,SIP,ARP,SSL,NTP, SMTP |
| Video and Image Access, Storage and Forwarding | Up to 1200 video channels @2Mbps, up to 3000 image channels or 1280 images/s |
| Southbound Integration | Plugin-based access integration; supports ONVIF, GB/T 28181, GB 35114, GA 1400 and mainstream camera vendor SDKs |
| Data Protection | SafeVideo keeps recordings readable even if a RAID group fails; remote disaster recovery with minute-level service migration |
| Maximum Video Analytics Performance (based on specific algorithm) | Target feature extraction: 256 channels/unit (1080P); Vehicle feature extraction: 192 channels/unit (1080P); Full structured feature extraction: 208 channels/unit (1080P) |
| Retrieval | Dynamic library feature-value data capacity: 240 million entries; structured data capacity: 360 million entries; Static library capacity: 20 million per unit, up to 100 million in a cluster |

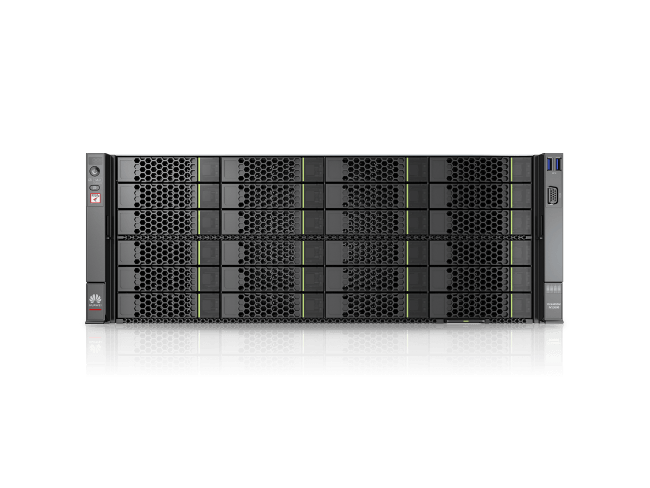

Huawei OceanStor IVS3800AF34 V2
4U dual-socket rack. RFQ — quotation on request.
Overview
The Huawei OceanStor IVS3800AF34 V2 is an enterprise enterprise storage system in a 4U dual-socket rack with 256GB (32GB*8) DDR4, 3200MHz of cache and 2 x 64-core Kunpeng 920 processors, 2.6 GHz. It is built for enterprise enterprise storage system workloads.
At a glance
- System Cache: 256GB (32GB*8) DDR4, 3200MHz
- Controller / Processor: 2 x 64-core Kunpeng 920 processors, 2.6 GHz
- Front-End Ports / Network Ports: 4*GE electrical ports + 4*10GE optical ports
- Power Consumption: Typical power consumption 1195W; maximum 1405W
- Power Supply: 2 hot-swappable 2000W AC power modules with 1+1 redundancy; Input voltage: 100 – 240V AC, 50/60Hz
- Form Factor: 4U dual-socket rack
- System Disk: 2 x 960GB / 2 x 1.92TB SSD SAS
- Service Data Disk: 2 x 960GB / 2 x 1.92TB SAS SSD optional
- AI Acceleration Unit: Up to 4 AI compute cards
- Operating System: EulerOS
- Database: GaussDB
- Maximum Image Analytics Performance: Target/vehicle feature extraction: 300 images/s per unit (1080P) *Not concurrent with video performance
- Northbound Integration: Supports integration with multiple video management platforms via RESTful APIs
- Environmental Requirements: Operating temperature: 5 to 35°C; storage temperature: -40°C to +65°C; Operating humidity: 8% to 90%, non-condensing; storage humidity: 5% to 95%, non-condensing
- Fans: Supports 4 hot-swappable fan modules with N+1 redundancy
- Dimensions (W x D x H): 447 mm x 790 mm x 175 mm
- Video and Image Storage: Up to 34 x 8TB/10TB/16TB/20TB SATA
- Management Functions: Video and image management software is containerized; storage, forwarding, analytics and retrieval services are deployed on demand
- Encoding Standards: H.264, H.265, MJPEG and other formats
- Network Protocols: TCP,UDP,IPv4,IPV6,HTTP, HTTPS,RTP,RTSP,RTCP,SIP,ARP,SSL,NTP, SMTP
- Video and Image Access, Storage and Forwarding: Up to 1200 video channels @2Mbps, up to 3000 image channels or 1280 images/s
- Southbound Integration: Plugin-based access integration; supports ONVIF, GB/T 28181, GB 35114, GA 1400 and mainstream camera vendor SDKs
- Data Protection: SafeVideo keeps recordings readable even if a RAID group fails; remote disaster recovery with minute-level service migration
- Maximum Video Analytics Performance (based on specific algorithm): Target feature extraction: 256 channels/unit (1080P); Vehicle feature extraction: 192 channels/unit (1080P); Full structured feature extraction: 208 channels/unit (1080P)
- Retrieval: Dynamic library feature-value data capacity: 240 million entries; structured data capacity: 360 million entries; Static library capacity: 20 million per unit, up to 100 million in a cluster
When to choose this storage system
Choose it for enterprise enterprise storage system workloads. with 4*GE electrical ports + 4*10GE optical ports.
Reading the specifications
capacity and controller count set the usable scale and performance headroom; cache (with battery/flash protection) buffers write bursts and random I/O; front-end and back-end connectivity determine host bandwidth and expansion.
Platform & compatibility
Supports connectivity: 4*GE electrical ports + 4*10GE optical ports. Confirm the host protocols, capacity and controller configuration for your environment before ordering.
Deployment notes
The Huawei OceanStor IVS3800AF34 V2 is supplied as a configured system; capacity, controllers and licensing are selected at order time. power: 2 hot-swappable 2000W AC power modules with 1+1 redundancy; Input voltage: 100 – 240V AC,…. Availability, firmware and licensing are confirmed against the current release at order time. Send the required capacity, protocol and performance target for a firm configuration and quote.
FAQ
What cache does it have? 256GB (32GB*8) DDR4, 3200MHz.
How do I get pricing? Send the required capacity and topology; quotes depend on quantity, options and destination.
