| Storage Management Software | DeviceManager, eService remote maintenance |
|---|---|
| System Architecture | Fully symmetric distributed architecture |
| Storage Access Protocols | SCSI, iSCSI, OpenStack Cinder |
| Raw Capacity per Chassis | 216TB ~ 864TB |
| Height per Chassis | 4U |
| Nodes per Chassis | 1 |
| Maximum Primary Storage Disks per Node | 36 |
| Primary Storage Disk Type | 3.5-inch HDD |
| Processor per Node | 2 x Kunpeng 920 processors |
| Maximum Memory per Node | 512 GB, 768 GB or 1 TB |
| Maximum Cache per Node | 4 x NVMe SSD or SAS SSD |
| System Disk per Node | •2 x 600 GB SAS HDD; •2 x 480 GB SATA SSD; •2 x 960 GB SATA SSD |
| Storage Interconnect Network Type | •10 GE or 25 GE TCP/IP; •25 GE RoCE |
| Data Redundancy Protection Mechanism | Erasure Coding: supports N+M redundancy protection, with M = 2, 3 or 4 |
| Data Self-Healing | Automatic parallel reconstruction, efficiency up to 4TB/hour |
| Key Features | SmartThin (thin provisioning); SmartDedupe & SmartCompression (data reduction); SmartQoS (QoS); SmartEncryption (data encryption); SmartAuditlog (audit log); HyperSnap (snapshot); HyperClone (linked clone); HyperMetro (distributed active-active); HyperReplication(S) (synchronous replication); HyperReplication(A) (asynchronous replication); MultiPool (multiple resource pools); DIF (end-to-end data integrity check) |
| Chassis Dimensions (H x W x D) | •Kunpeng model: 175 mm × 447 mm × 790 mm; •x86 model: 175 mm × 447 mm × 748 mm |
| Maximum Weight per Chassis (with drives) | ≤65 kg |
| Operating Temperature | 5℃~35℃ |
| Operating Humidity | 8% RH to 90% RH, non-condensing |
| Front-End Service Network Type* | •10 GE or 25 GE TCP/IP; •25 GE RoCE |
Overview

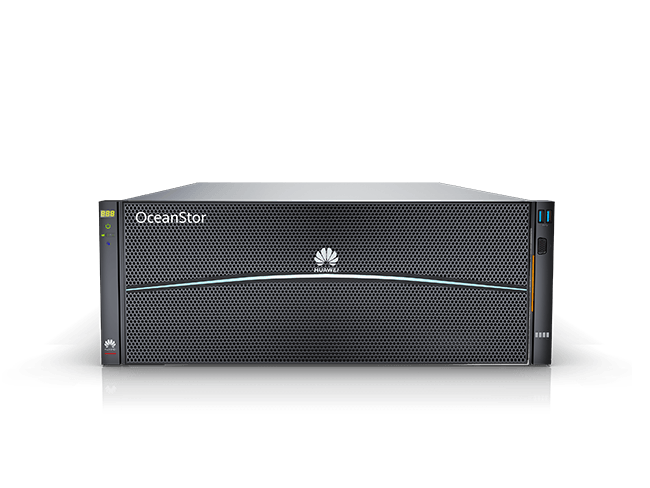

The OceanStor Pacific 9540 (Block) is an enterprise enterprise storage system and Fully symmetric distributed architecture. It is built for enterprise enterprise storage system workloads.
At a glance
- Storage Management Software: DeviceManager, eService remote maintenance
- System Architecture: Fully symmetric distributed architecture
- Storage Access Protocols: SCSI, iSCSI, OpenStack Cinder
- Raw Capacity per Chassis: 216TB ~ 864TB
- Height per Chassis: 4U
- Nodes per Chassis: 1
- Maximum Primary Storage Disks per Node: 36
- Primary Storage Disk Type: 3.5-inch HDD
- Processor per Node: 2 x Kunpeng 920 processors
- Maximum Memory per Node: 512 GB, 768 GB or 1 TB
- Maximum Cache per Node: 4 x NVMe SSD or SAS SSD
- System Disk per Node: 2 x 600 GB SAS HDD; 2 x 480 GB SATA SSD; 2 x 960 GB SATA SSD
- Storage Interconnect Network Type: 10 GE or 25 GE TCP/IP; 25 GE RoCE
- Data Redundancy Protection Mechanism: Erasure Coding: supports N+M redundancy protection, with M = 2, 3 or 4
- Data Self-Healing: Automatic parallel reconstruction, efficiency up to 4TB/hour
- Key Features: SmartThin (thin provisioning); SmartDedupe & SmartCompression (data reduction); SmartQoS (QoS); SmartEncryption (data encryption); SmartAuditlog (audit log); HyperSnap (snapshot); HyperClone (linked clone); HyperMetro (distributed active-active); HyperReplication(S) (synchronous replication); HyperReplication(A) (asynchronous replication); MultiPool (multiple resource pools); DIF (end-to-end data integrity check)
- Chassis Dimensions (H x W x D): Kunpeng model: 175 mm × 447 mm × 790 mm; x86 model: 175 mm × 447 mm × 748 mm
- Maximum Weight per Chassis (with drives): ≤65 kg
- Operating Temperature: 5℃~35℃
- Operating Humidity: 8% RH to 90% RH, non-condensing
- Front-End Service Network Type*: 10 GE or 25 GE TCP/IP; 25 GE RoCE
When to choose this storage system
Choose it for enterprise enterprise storage system workloads. It presents SCSI, iSCSI, OpenStack Cinder.
Reading the specifications
capacity and controller count set the usable scale and performance headroom; supported protocols decide which hosts and applications can attach.
Platform & compatibility
Supports protocols: SCSI, iSCSI, OpenStack Cinder, management: DeviceManager, eService remote maintenance, nodes per chassis: 1. Confirm the host protocols, capacity and controller configuration for your environment before ordering.
Deployment notes
The OceanStor Pacific 9540 (Block) is supplied as a configured system; capacity, controllers and licensing are selected at order time. software: DeviceManager, eService remote maintenance. Availability, firmware and licensing are confirmed against the current release at order time. Send the required capacity, protocol and performance target for a firm configuration and quote.
FAQ
What protocols does it support? SCSI, iSCSI, OpenStack Cinder.
How do I get pricing? Send the required capacity and topology; quotes depend on quantity, options and destination.
Related
Configuration, availability and lead time depend on the required quantity, deployment topology and delivery destination. Send your requirement to receive a quotation.
