| Storage Management Software | DeviceManager, eService remote maintenance |
|---|---|
| System Architecture | Fully symmetric distributed architecture |
| Storage Access Protocols | NFS, SMB, POSIX, MPI-IO, HDFS, Amazon S3, FTP and others |
| Raw Capacity per Chassis | 648 TB~1080 TB |
| Height per Chassis | 4U |
| Nodes per Chassis | 1 or 2 |
| Maximum Primary Storage Disks per Node | 30 or 60 |
| Primary Storage Disk Type | 3.5-inch HDD |
| Processor per Node | 2 x Kunpeng 920 processors |
| Maximum Memory per Node | 512 GB |
| Maximum Cache per Node | 2 or 4 Palm NVMe SSDs |
| System Disk per Node | 2 x 480 GB SSD |
| Storage Interconnect Network Type | •10 GE, 25 GE or 100 GE TCP/IP; •10 GE, 25 GE or 100 GE RoCE; •100 Gb/s EDR InfiniBand |
| Data Redundancy Protection Mechanism | Erasure Coding: supports N+M redundancy protection, with M = 2, 3 or 4 |
| Data Self-Healing | Automatic parallel reconstruction, efficiency up to 2 TB/hour |
| Key Features | SmartQuota (quota); SmartTier (tiered storage); SmartQoS (QoS); SmartEqualizer (load balancing); SmartMulti-Tenant (multi-tenancy); SmartEncryption (data encryption); SmartAuditlog (audit log); HyperLock (WORM); HyperSnap (snapshot); HyperReplication(A) (asynchronous replication); SmartIndexing (metadata retrieval); Recycle Bin; SmartInterworking (multi-protocol interworking); DIF (end-to-end data integrity check); Object Versioning*; SmartTakeover*; SmartCompression (scenario-based compression); HyperGeoMetro (active-active)*; HyperGeoEC (cross-site EC)* |
| Chassis Dimensions (H x W x D) | 178mm × 447mm × 835mm |
| Maximum Weight per Chassis (with drives) | 1-chassis 1-node model: ≤98 kg; 1-chassis 2-node model: ≤102 kg |
| Operating Temperature | 5℃~35℃ |
| Operating Humidity | 5% RH to 90% RH, non-condensing |
| Front-End Service Network Type* | •10 GE, 25 GE or 100 GE TCP/IP; •10 GE, 25 GE or 100 GE RoCE; •100 Gb/s EDR InfiniBand |

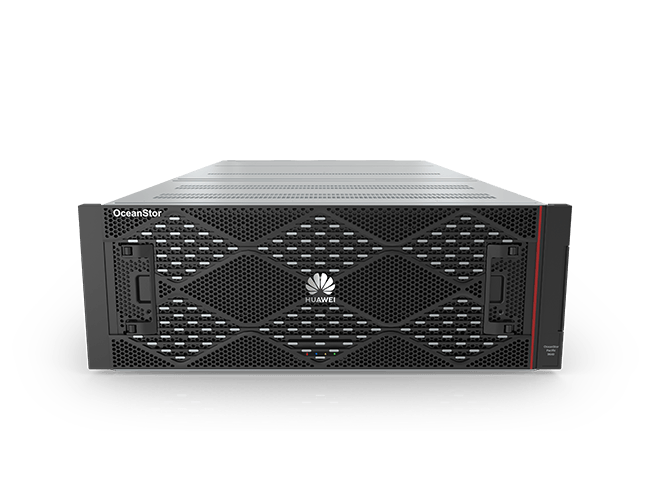

Overview
The OceanStor Pacific 9546 is an enterprise enterprise storage system and Fully symmetric distributed architecture. It is built for enterprise enterprise storage system workloads.
At a glance
- Storage Management Software: DeviceManager, eService remote maintenance
- System Architecture: Fully symmetric distributed architecture
- Storage Access Protocols: NFS, SMB, POSIX, MPI-IO, HDFS, Amazon S3, FTP and others
- Raw Capacity per Chassis: 648 TB~1080 TB
- Height per Chassis: 4U
- Nodes per Chassis: 1 or 2
- Maximum Primary Storage Disks per Node: 30 or 60
- Primary Storage Disk Type: 3.5-inch HDD
- Processor per Node: 2 x Kunpeng 920 processors
- Maximum Memory per Node: 512 GB
- Maximum Cache per Node: 2 or 4 Palm NVMe SSDs
- System Disk per Node: 2 x 480 GB SSD
- Storage Interconnect Network Type: 10 GE, 25 GE or 100 GE TCP/IP; 10 GE, 25 GE or 100 GE RoCE; 100 Gb/s EDR InfiniBand
- Data Redundancy Protection Mechanism: Erasure Coding: supports N+M redundancy protection, with M = 2, 3 or 4
- Data Self-Healing: Automatic parallel reconstruction, efficiency up to 2 TB/hour
- Key Features: SmartQuota (quota); SmartTier (tiered storage); SmartQoS (QoS); SmartEqualizer (load balancing); SmartMulti-Tenant (multi-tenancy); SmartEncryption (data encryption); SmartAuditlog (audit log); HyperLock (WORM); HyperSnap (snapshot); HyperReplication(A) (asynchronous replication); SmartIndexing (metadata retrieval); Recycle Bin; SmartInterworking (multi-protocol interworking); DIF (end-to-end data integrity check); Object Versioning*; SmartTakeover*; SmartCompression (scenario-based…
- Chassis Dimensions (H x W x D): 178mm × 447mm × 835mm
- Maximum Weight per Chassis (with drives): 1-chassis 1-node model: ≤98 kg; 1-chassis 2-node model: ≤102 kg
- Operating Temperature: 5℃~35℃
- Operating Humidity: 5% RH to 90% RH, non-condensing
- Front-End Service Network Type*: 10 GE, 25 GE or 100 GE TCP/IP; 10 GE, 25 GE or 100 GE RoCE; 100 Gb/s EDR InfiniBand
When to choose this storage system
Choose it for enterprise enterprise storage system workloads. It presents NFS, SMB, POSIX, MPI-IO, HDFS, Amazon S3, FTP and others.
Reading the specifications
capacity and controller count set the usable scale and performance headroom; supported protocols decide which hosts and applications can attach.
Platform & compatibility
Supports protocols: NFS, SMB, POSIX, MPI-IO, HDFS, Amazon S3, FTP and others, management: DeviceManager, eService remote maintenance, nodes per chassis: 1 or 2. Confirm the host protocols, capacity and controller configuration for your environment before ordering.
Deployment notes
The OceanStor Pacific 9546 is supplied as a configured system; capacity, controllers and licensing are selected at order time. software: DeviceManager, eService remote maintenance. Availability, firmware and licensing are confirmed against the current release at order time. Send the required capacity, protocol and performance target for a firm configuration and quote.
FAQ
What protocols does it support? NFS, SMB, POSIX, MPI-IO, HDFS, Amazon S3, FTP and others.
How do I get pricing? Send the required capacity and topology; quotes depend on quantity, options and destination.
Related
Configuration, availability and lead time depend on the required quantity, deployment topology and delivery destination. Send your requirement to receive a quotation.
