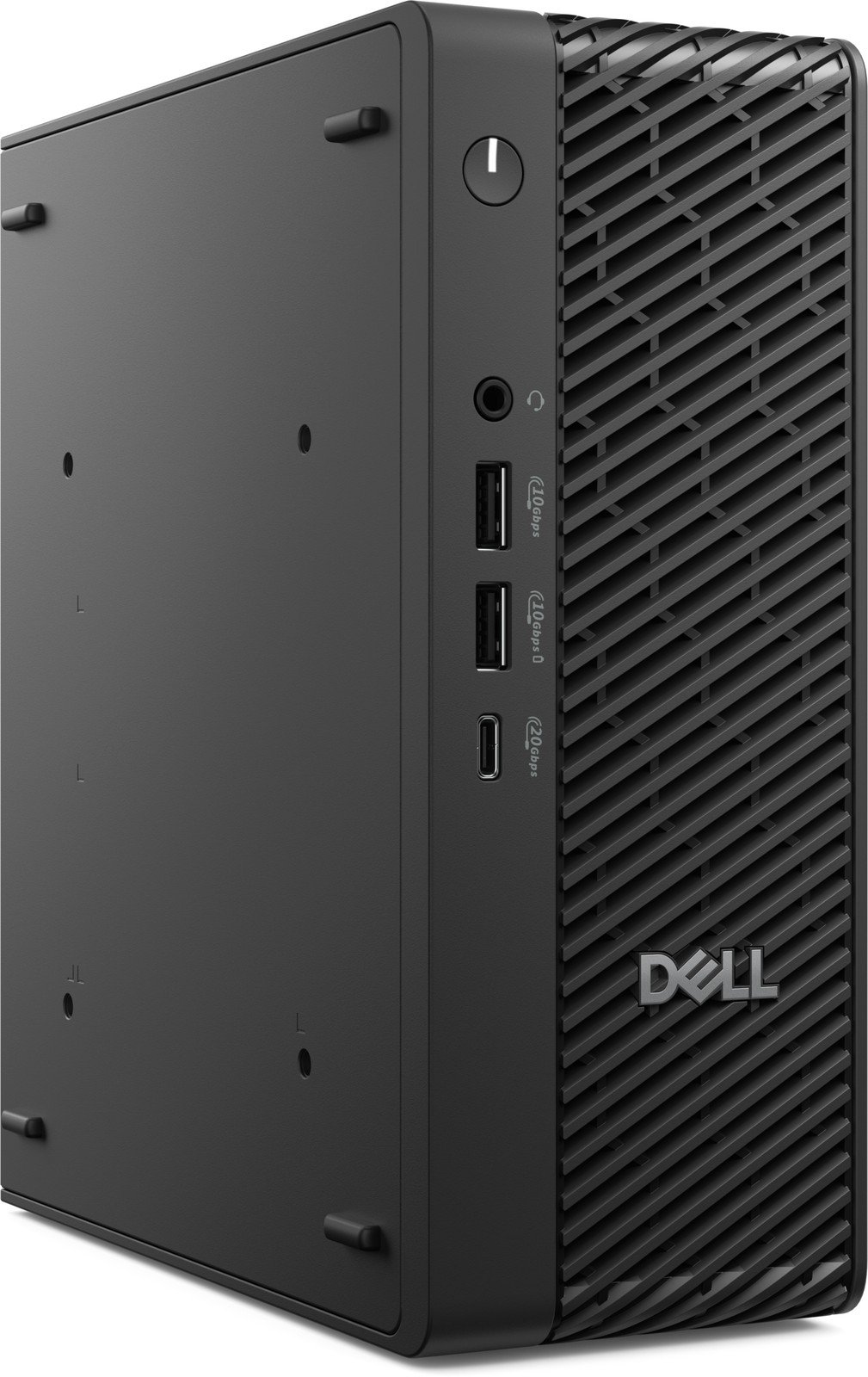

Dell Pro Max Micro Workstation

Overview

The Dell Pro Max Micro is Dell’s smallest workstation, a compact form factor desktop that still accepts double-width discrete graphics up to NVIDIA RTX 4000 SFF Ada. Intel Core Ultra vPro processors with a dedicated NPU run 65W CPUs at 85W, and the system scales to 64 GB of DDR5 memory with ECC options and 8 TB of SSD storage.

Key Features

• Form Factor: Compact form factor
• Processor: Intel® Core™ Ultra 9 285 vPro® (36 MB cache, 24 cores, 24 threads, 2.5 GHz to 5.6 GHz, 65 W); Intel® Core™ Ultra 7 265 vPro® (30 MB cache, 20 cores, 20 threads, 2.4 GHz to 5.3 GHz, 65 W); Intel® Core™ Ultra 5 245 vPro® (24 MB cache, 14 cores, 14 threads, 3.5 GHz to 5.1 GHz, 65 W); Intel® Core™ Ultra 5 235 vPro® (24 MB cache, 14 cores, 14 threads, 3.4 GHz to 5.0 GHz, 65 W)
• Graphics: Integrated:; Intel® Graphics; Discrete:; NVIDIA® RTX™ A400, 4 GB GDDR6; NVIDIA® RTX™ A1000, 8 GB GDDR6; NVIDIA® RTX™ 2000 Ada, 16 GB GDDR6; NVIDIA® RTX™ 4000 SFF Ada, 20 GB GDDR6
• Memory: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, single-channel, ECC & Non-ECC; 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel, ECC & Non-ECC; 16 GB: 2 x 8 GB, DDR5, 5600 MT/s, dual-channel, ECC & Non-ECC; 32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel, ECC & Non-ECC; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, dual-channel, ECC & Non-ECC; 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, dual-channel, ECC & Non-ECC; 8 GB: 1 x 8 GB, DDR5, 6400 MT/s, single-channel, Non-ECC; 16 GB: 1 x 16 GB, DDR5, 6400 MT/s, single-channel, Non-ECC; 16 GB: 2 x 8 GB, DDR5, 6400 MT/s, dual-channel, Non-ECC; 32 GB: 1 x 32 GB, DDR5, 6400 MT/s, single-channel, Non-ECC; 32 GB: 2 x 16 GB, DDR5, 6400 MT/s, dual-channel, Non-ECC; 64 GB: 2 x 32 GB, DDR5, 6400 MT/s, dual-channel, Non-ECC
• Storage: 256 GB, M.2 2230, TLC Gen4 PCIe NVMe, SSD, Class 35; 512 GB, M.2 2230, TLC Gen4 PCIe NVMe, SSD, Class 35; 512 GB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40; 1 TB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40; 2 TB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40; 4TB, M.2 2280, TLC Gen4 PCIe NVMe, SSD, Self-Encrypting Opal 2.0, Class 40
• M.2 Slots: 1 M.2 2280 Gen4 PCIe NVMe single-sided SSD; 1 M.2 2280 Gen5 PCIe NVMe single-sided SSD; 1 M.2 2230 slot for Wi-Fi and Bluetooth card
• Expansion Slots: 1 Kensington security-cable slot; 1 Padlock ring; 2 PCIe Gen4 x8 slot (x8 and x1 electrically); Two PCIe slot options available
• Ports: Front:; 1 USB 3.2 Gen 2×2 (20 Gbps) Type-C® port; 1 USB 3.2 Gen 2 (10 Gbps) with PowerShare port; 1 USB 3.2 Gen 2 (10 Gbps) port; 1 headset (headphone and microphone combo) port; Rear:; 1 USB 3.2 Gen 2 (10 Gbps) Type-C® port; 2 USB 3.2 Gen 2 (10 Gbps) ports; 1 USB 3.2 Gen 1 (5 Gbps) port with Smart Power On; 1 USB 3.2 Gen 1 (5 Gbps) port; 3 DisplayPort 1.4a (HBR3 support) ports; 1 RJ45 (10/100/1000 Mbps) Ethernet port; 1 power-adapter port; 1 optional module port (VGA/HDMI 2.1 FRL/DisplayPort™ 2.1 (UHBR20)/Serial/PS2/USB Type C® with DisplayPort™ Alt Mode/2 USB Type-A/Thunderbolt 4 + USB Type-C®/LC Fiber optic/5GbE LAN)
• Networking: 1 RJ45 (10/100/1000 Mbps) Ethernet port; Optional port module includes 5GbE LAN
• Wireless: Intel® Wi-Fi 7 BE200, 2×2, 802.11be, MU-MIMO, Bluetooth® 5.4 wireless card, Puck antenna (optional); Qualcomm® FastConnect 7800 DBS, Wi-Fi 7, 802.11be, Bluetooth 5.4 wireless card, Puck antenna (optional)
• Audio: Stereo speakers with Realtek ALC3204 Codec Audio Controller; Internal speakers
• Power Supply: 180 W AC adapter, 7.4mm barrel; 280 W AC adapter, 7.4mm barrel
• Operating System: Windows 11 Home, 64-bit; Windows 11 Pro, 64-bit; Ubuntu® Linux® 24.04 LTS, 64-bit; Windows 11 Enterprise
• Security: 1 Kensington security-cable slot; 1 Padlock ring; Certificate Based Authentication (CBA)/Authenticated BIOS Interface (ABI); Dell Trusted Device (SafeBIOS); Digital Device Identity and Secured Component Verification; Secure BIOS Baseline; Secured-core PC; Security software: McAfee® Small Business Security, Dell Encryption Personal/Enterprise/External Media, Dell Data Protection | Bitlocker Manager (DDP | BLM)
• Dimensions (H x W x D): US Dimensions: Height: 8.11 in. (206.00 mm); Width: 3.12 in. (79.30 mm); Depth: 7.00 in. (178 mm); ROW Dimensions: Height: 206.00 mm (8.11 in.); Width: 79.30 mm (3.12 in.); Depth: 178 mm (7.00 in.)
• Weight: Weight (maximum): 5.59 lb (2.54 kg); Weight (minimum): 5.15 lb (2.34 kg)
• Certifications: ENERGY STAR® certified; EPEAT Gold with Climate+ registered; Latest TCO designation; Product Safety, EMC and Environmental Datasheets; Dell Regulatory Compliance Home Page; Responsible Business Alliance Policy
• Warranty: 1Y Basic Hardware Warranty Service with Onsite Service after Remote Diagnosis; 2Y/3Y/4Y/5Y Basic Warranty Extension; 1Y-5Y ProSupport with Next Business Day Onsite service; 1Y-5Y ProSupport Plus for Client with Next Business Day Onsite service; 1-year to 5-year Accidental Damage Service

Key Highlights

• Compact form factor supporting a 65W CPU running at 85W, enabled by a new thermal design
• Up to NVIDIA RTX 4000 SFF Ada graphics, 64 GB DDR5 memory with ECC options and 8 TB of SSD storage
• Multiple mounting options including AIO stand, hypershelf, wall and under-desk mounts

Applications

• Mounting behind a monitor or under a desk
• Retail and kiosk deployments
• Light CAD and engineering tasks
• Distributed and edge AI inference

Configuration, availability and lead time depend on the required processor, memory, graphics, storage and delivery destination. Send your requirement to receive a quotation.
