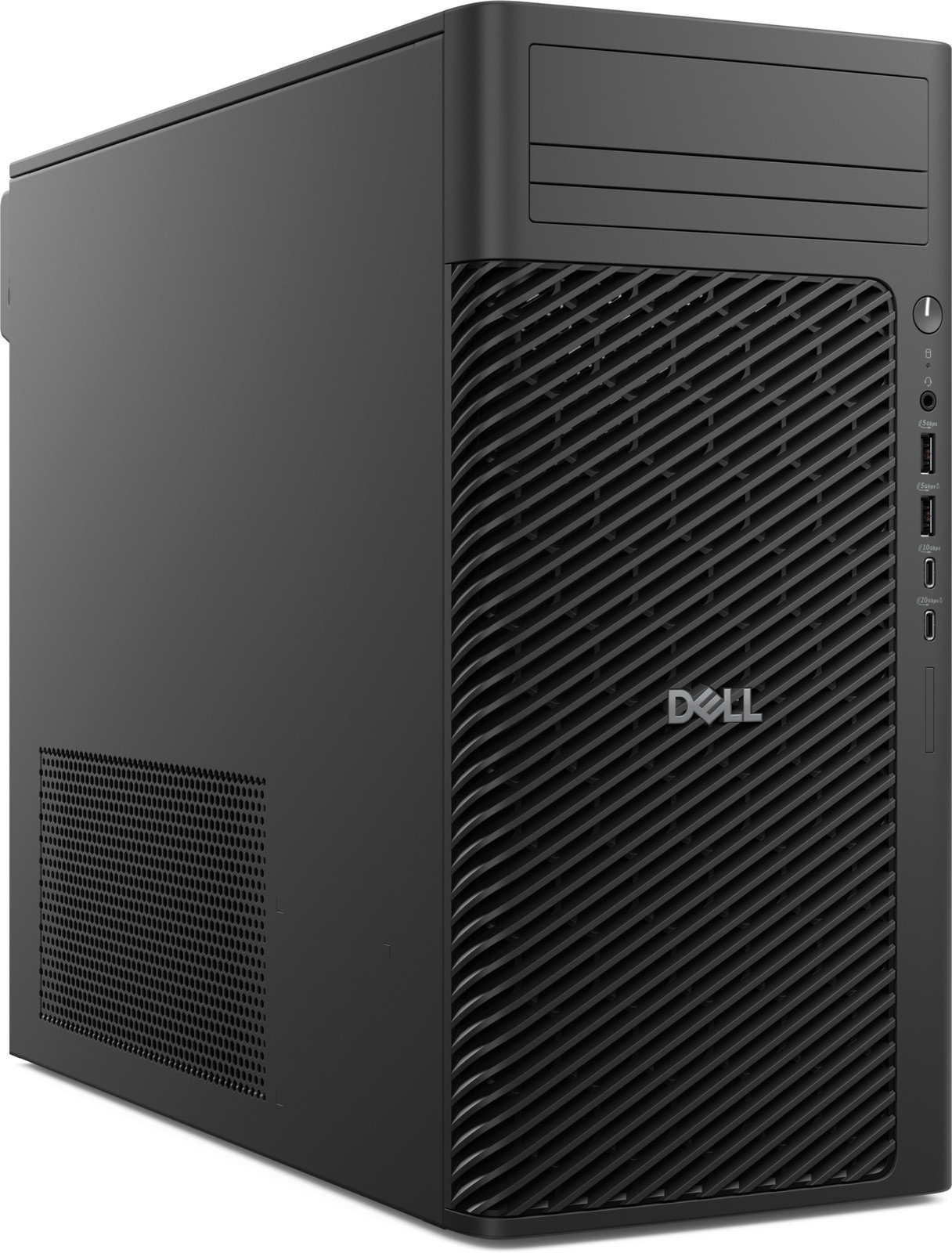

Dell Pro Max Tower T2 Workstation

Overview

The Dell Pro Max Tower T2 is a scalable 32L full-size tower workstation on the Intel W880 chipset. Intel Core Ultra processors with a dedicated NPU drive AI-assisted workflows, a 125W CPU can run at 250W with unlimited turbo duration, and the chassis accepts up to NVIDIA RTX 6000 Blackwell graphics, 128 GB of DDR5 memory and up to 1500W of power supply.

Key Features

• Form Factor: Full-size tower (scalable, 32L design)
• Processor: Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 3.4 GHz to 5.0 GHz, 65W); Intel® Core™ Ultra 5 245 (24 MB cache, 14 cores, 14 threads, 3.5 GHz to 5.1 GHz, 65W); Intel® Core™ Ultra 5 245K (24 MB cache, 14 cores, 14 threads, 4.2 GHz to 5.2 GHz, 125W); Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 2.4 GHz to 5.3 GHz, 65W); Intel® Core™ Ultra 7 265K (30 MB cache, 20 cores, 20 threads, 3.9 GHz to 5.5 GHz, 125W); Intel® Core™ Ultra 9 285 (36 MB cache, 24 cores, 24 threads, 2.5 GHz to 5.6 GHz, 65W); Intel® Core™ Ultra 9 285K (36 MB cache, 24 cores, 24 threads, 3.7 GHz to 5.7 GHz, 125W)
• Chipset: Intel® W880
• Graphics: NVIDIA:; NVIDIA® RTX™ A400, 4 GB GDDR6; NVIDIA® RTX™ A1000, 8 GB GDDR6; NVIDIA® RTX™ 2000 Ada, 16 GB GDDR6; NVIDIA® RTX™ 4000 Ada, 20 GB GDDR6; NVIDIA® RTX™ 4500 Ada, 24 GB GDDR6; NVIDIA® RTX™ 5000 Ada, 32 GB GDDR6; NVIDIA® RTX™ 6000 Ada, 48 GB GDDR6; NVIDIA® RTX™ PRO 2000 Blackwell Workstation Edition (70W) 16GB GDDR7; NVIDIA® RTX™ PRO 4000 Blackwell Workstation Edition (145W) 24GB GDDR7; NVIDIA® RTX™ PRO 4500 Blackwell Workstation Edition (200W) 32GB GDDR7; NVIDIA® RTX™ PRO 5000 Blackwell Workstation Edition (300W) 48GB GDDR7; NVIDIA® RTX™ PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96GB GDDR7; NVIDIA® RTX™ PRO 6000 Blackwell Workstation Edition (600W), 96GB GDDR7; AMD:; AMD Radeon™ Pro W7500, 8 GB GDDR6; AMD Radeon™ Pro W7600, 8 GB GDDR6
• Memory: 8 GB: 1 x 8 GB, DDR5, 5600 MT/s, Non-ECC; 16 GB: 2 x 8 GB, DDR5, 5600 MT/s, Non-ECC; 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, Non-ECC; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, Non-ECC; 32 GB: 4 x 8 GB, DDR5, 4800 MT/s, Non-ECC; 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, Non-ECC; 64 GB: 4 x 16 GB, DDR5, 4800 MT/s, Non-ECC; 128 GB: 4 x 32 GB, DDR5, 4400 MT/s, Non-ECC; 16 GB: 1 x 16 GB, DDR5, 5600 MT/s, ECC; 32 GB: 2 x 16 GB, DDR5, 5600 MT/s, ECC; 64 GB: 2 x 32 GB, DDR5, 5600 MT/s, ECC; 64 GB: 4 x 16 GB, DDR5, 4800 MT/s, ECC; 128 GB: 4 x 32 GB, DDR5, 4400 MT/s, ECC
• Storage: Solid-state drives:; 256 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35; 512 GB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40; 1 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40; 2 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40; 4 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD Self-Encrypting Opal 2.0, Class 40; 1 TB, M.2 2280, PCIe NVMe Gen5 x4, SSD, Self-Encrypting, Opal 2.0, FIPS; 2 TB, M.2 2280, PCIe NVMe Gen5 x4, SSD, Self-Encrypting, Opal 2.0, FIPS; Hard drives:; 4 TB, 3.5-inch, 5400 RPM, SATA, HDD; 1 TB, 3.5-inch, 7200 RPM, SATA, HDD; 2 TB, 3.5-inch, 7200 RPM, SATA, HDD; 4 TB, 3.5-inch, 7200 RPM, Enterprise HDD; 8 TB, 3.5-inch, 7200 RPM, Enterprise HDD
• Drive Bays: 3 SATA 3.5 inch HDD and 1 SATA ODD
• M.2 Slots: 2 M.2 2230/2280 PCIe Gen4 slots; 1 M.2 2230/2280 PCIe Gen5 slot
• Expansion Slots: 1 PEG full-height Gen5 PCIe x16 slot; 1 full-height, half-length Gen3 x4 PCIe closed-end slot; 1 full-height, full-length Gen4 x4 PCIe open-end slot; 1 full-height, full-length Gen3 x4 PCIe open-end slot; Four PCIe slots
• Ports: Front:; 1 USB 3.2 Gen 1 (5Gbps) port; 1 USB 3.2 Gen 1 (5Gbps) port with PowerShare; 1 USB 3.2 Gen 2 (10Gbps) Type-C port; 1 USB 3.2 Gen 2×2 (20Gbps) Type-C port with PowerShare; 1 Global headset jack; 1 SD 7.0 Express-card slot (Optional); Rear:; 2 USB 2.0 (480Mbps) ports with SmartPower; 2 USB 3.2 Gen 2 (10Gbps) ports; 1 USB 3.2 Gen 2×2 (20Gbps) Type-C port; 1 RJ45 (1GbE) Ethernet port; 2 DisplayPort 1.4a HBR3 ports; 1 Optional port (TBT4 (40Gbps) + USB-C (10Gbps) data, DP alt-mode Type-C (10Gbps), HDMI 2.1, DP 2.1, 5Gbe LAN, 2x USB-A 3.2 (10Gbps), VGA, LC Fiber optic port); 1 Thunderbolt Port
• Networking: RJ45 (1GbE) Ethernet port; Optional port module includes 5Gbe LAN; Add-in: Intel® Ethernet Network Adapter x710-T2L GbE NIC Card (Base-T); Intel® Ethernet Converged Network Adapter X710-DA2 GbE NIC Card (Optical, requires SFP+ transceivers)
• Wireless: Intel® Wi-Fi 7 BE200, 2×2, 802.11be, MIMO, Bluetooth 5.4 wireless card; Qualcomm® Wi-Fi 7 DBS WCN7851, 2×2, 802.11be, MIMO, Bluetooth 5.4 wireless card
• Audio: Stereo speakers with Waves MaxxAudio® 14 – Realtek ALC3204; Internal speakers
• Power Supply: 360W internal power supply unit (80PLUS Platinum Certified); 500W internal power supply unit (80PLUS Platinum Certified); 1500W internal power supply unit (80PLUS Platinum Certified)
• Operating System: Windows 11 Home; Windows 11 Pro; Windows 11 Pro National Academic; Windows 11 Enterprise; Ubuntu® Linux® 24.04 LTS
• Security: 1 Kensington security-cable slot; 1 Padlock loop; 1 Lockable Cable Cover (optional); 1 Lockable Bezel and Key for Front Accessible SATA HDD (optional); Chassis intrusion switch; Trusted Platform Module TPM 2.0; Intel Integrated TPM; Security software: McAfee® Small Business Security; Dell Encryption Personal/Enterprise/External Media; Dell Data Guardian (DLP); Dell Bitlocker Manager; Absolute Data and Device Security; Intel Secure Boot (TXT + TPM); Intel’s Identity Protection (IPT)
• System Management: Intel vPro®; Intel vPro® over wireless; Intel Standard Manageability (ISM); No OOB Management / ME Disabled; DASH (through AMT and ISM); OOB Diags Error Code Push; Dell Command | Integration Suite for SCCM (DCIS); Dell Command | Intel® vPro® Out of Band (DCIV); Dell Command | Monitor (DCM) – Asset Inventory and Alerts Management
• Dimensions (H x W x D): US: Height: 15.24 in. (387.00 mm); Width: 7.40 in. (187.70 mm); Depth: 17.24 in. (438.00 mm); Rest of the world: Height: 387.00 mm (15.24 in.); Width: 187.70 mm (7.40 in.); Depth: 438.00 mm (17.24 in.)
• Weight: Weight: Maximum: 50.70 lbs. (23 kg); Minimum: 18 lbs. (8.17 kg)
• Certifications: ENERGY STAR® certified; EPEAT Gold with Climate+ registered; Latest TCO designation; Product Safety, EMC and Environmental Datasheets; Dell Regulatory Compliance Home Page; Responsible Business Alliance Policy
• Warranty: 1Y Basic Hardware Warranty Service with Onsite Service after Remote Diagnosis; 2Y/3Y/4Y/5Y Basic Warranty Extension; 1Y-5Y ProSupport with Next Business Day Onsite service; 1Y-5Y ProSupport Plus for Client with Next Business Day Onsite service; 1-year to 5-year Accidental Damage Service

Key Highlights

• Intel Core Ultra processors with a dedicated NPU, and a 125W CPU running at 250W with unlimited turbo duration
• Up to NVIDIA RTX 6000 Blackwell graphics, 128 GB DDR5 memory, 12 TB of SSD and 24 TB of HDD storage
• Scalable 32L tower with four PCIe slots and power supply options up to 1500W

Applications

• AI-assisted design and content workflows
• Professional 3D CAD and visualisation
• Media and video editing
• Software development with local AI models

Configuration, availability and lead time depend on the required processor, memory, graphics, storage and delivery destination. Send your requirement to receive a quotation.
