| Product SKU | P3-ULTRA-G2 |
|---|---|
| Form Factor | Mini-tower (3.9L) |
| Processor | Up to one 125W Intel Core™ Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz |
| Chipset | Intel® W880 chipset |
| Graphics | Supports up to one NVIDIA® RTX PRO 4000 Blackwell SFF Edition; or two Nvidia RTX A1000 |
| Memory | Up to 128GB (2x 64GB DDR5 CSODIMM) |
| Storage | Up to 4x M.2 PCIe® SSD |
| M.2 Slots | One M.2 slot (for WLAN); Up to 4x M.2 slots for M.2 SSD; 2 onboard M.2 PCIe® 4.0 slots, supports M.2 PCIe® 4.0 SSD. Only one slot is available when 3.5" HDD is selected; 1 onboard M.2 PCIe® 5.0 slot, supports M.2 PCIe® 5.0 or M.2 PCIe® 4.0 SSD; 1 via Single M.2 to PCIe® adapter, supports M.2 PCIe® 4.0 and runs at PCIe® 3.0, can't be available when 3.5" HDD is selected |
| Expansion Slots | Three or two PCIe® slots depending on riser card selection |
| Ports | 2x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2); 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 4x USB-A (USB 10Gbps / USB 3.2 Gen 2); 3x DisplayPort™ 1.4; 1x Ethernet (GbE RJ-45) |
| Networking | Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN |
| Wireless | Intel® Wi-Fi® 7 BE200, 802.11be 2×2 Wi-Fi® + Bluetooth® 5.4, Intel® vPro® technology support |
| Power Supply | 170W / 230W / 245W / 330W power supply |
| Operating System | Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Windows® 11 IoT Enterprise LTSC 2024; Ubuntu Linux LTS; Red Hat Enterprise Linux 10 |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| System Management | (Optional) Aspeed AST2600 graphics / management processor, IPMI 2.0-compliant baseboard management controller (BMC); (Optional) Intel® vPro® Enterprise with Intel® AMT 16 |
| Dimensions | 87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches) |
| Weight | 3.6 kg (7.94 lbs, maximum configuration) |
| Operating Environment | Operating: 10°C (50°F) to 35°C (95°F) |
| Certifications | MIL-STD-810H military test passed; (Optional) ENERGY STAR® 9.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant; TCO Certified, generation 10 |
| Warranty | 1-year limited onsite service; 2-year limited onsite service; 3-year limited onsite service; No base warranty |
| Brand | Lenovo |
| Product Line | Lenovo ThinkStation |
Workstations

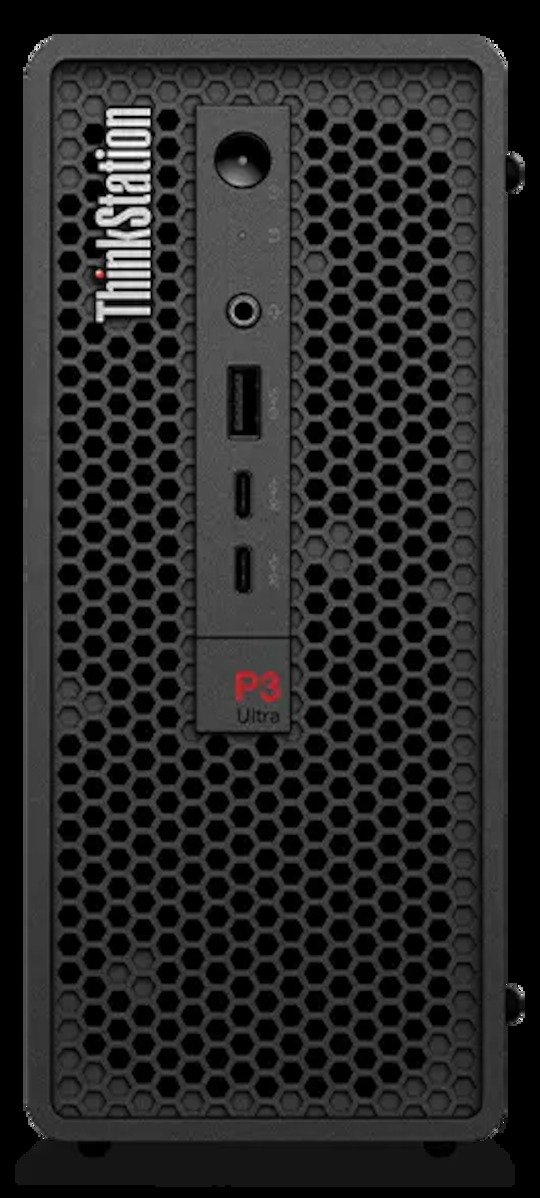

Lenovo ThinkStation P3 Ultra Small Form Factor Gen 2 (Intel) Workstation
The Lenovo ThinkStation P3 Ultra Small Form Factor Gen 2 (Intel) Workstation is a mini-tower (3.9L) workstation powered by up to one 125W Intel Core™ Ultra (Series 2) processor, with up to one NVIDIA® RTX PRO 4000 Blackwell SFF Edition.
Overview
The Lenovo ThinkStation P3 Ultra Small Form Factor Gen 2 (Intel) Workstation is a compact small form factor workstation from Lenovo. Compact Workstation, Big AI Performance. It provides up to Intel Core Ultra 9 (Series 2) with Intel vPro and up to 16TB PCIe Gen4 SSD (4x M.2, 4TB each, plus optional M.2 add-in card).
Key Features
- Form Factor: Mini-tower (3.9L)
- Processor: Up to one 125W Intel Core™ Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz
- Graphics: Supports up to one NVIDIA® RTX PRO 4000 Blackwell SFF Edition; or two Nvidia RTX A1000
- Memory: Up to 128GB (2x 64GB DDR5 CSODIMM); DDR5-5600 SODIMM, ECC or non-ECC, maximum transfer speeds of up to 5600 MT/s; DDR5-6400 CSODIMM, ECC or non-ECC, maximum transfer speeds of up to 6400 MT/s
- Storage: Up to 4x M.2 PCIe® SSD
- Expansion Slots: Three or two PCIe® slots depending on riser card selection
- Networking: Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
- Power Supply: 170W / 230W / 245W / 330W power supply
- Operating System: Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Windows® 11 IoT Enterprise LTSC 2024; Ubuntu Linux LTS; Red Hat Enterprise Linux 10
- Certifications: MIL-STD-810H military test passed; (Optional) ENERGY STAR® 9.0; (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant; TCO Certified, generation 10
Applications
- CAD, BIM and 3D modelling
- AI model development and inference at the desk
- Media, video and content creation
- Engineering simulation and data science
Configuration, availability and lead time depend on the required quantity, options and delivery destination. Send your requirement to receive a quotation.
