| Product SKU | P5-TOWER-G2 |
|---|---|
| Form Factor | Tower (33L) |
| Processor | Up to one 300W Intel Xeon® 600 Series processor, supports up to 48 cores, up to 4.9GHz |
| Chipset | Intel® W890 chipset |
| Graphics | Supports up to two NVIDIA® RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W) |
| Memory | Up to 1TB (8x 128GB RDIMM) |
| Storage | Up to 8 drives (HDD maximum, 4x 3.5" HDD + 4x M.2 SSD) |
| Bays | Up to four internal disk bays; Bay 1 supports one 3.5" HDD, standard; Bay 2 supports one 3.5" HDD, standard; Bay 3 supports one 3.5" HDD, optional, by HDD bay or Dual Drive Internal Enclosure; Bay 4 supports one 3.5" HDD optional, by Dual Drive Internal Enclosure; Dual Drive Internal Enclosure requires two adjacent PCIe® slots (slots 4 and 5) for installation |
| M.2 Slots | Up to 8x M.2 PCIe® 5.0 x4 SSD; 2x M.2 PCIe® 5.0 x4 via onboard slots; 4x M.2 PCIe® 5.0 x4 via Quad M.2 to PCIe® Gen 5 adapter; 2x M.2 PCIe® 5.0 x4 via front access M.2 bay |
| Expansion Slots | Supports 6 PCIe® slots with 3x PCIe® 5.0 slots and 3x PCIe® 4.0 slots |
| Ports | 1x headphone / microphone combo jack (3.5mm); 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2); 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2); 2x USB-A (Hi-Speed USB / USB 2.0); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x Ethernet (2.5GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Networking | 2.5 Gigabit Ethernet, Intel® Ethernet Connection I226-LM, 1x RJ-45, supports Wake-on-LAN |
| Wireless | Intel® Wi-Fi® 7 BE200, 802.11be 2×2 Wi-Fi® + Bluetooth® 5.4, Intel® vPro® technology support |
| Power Supply | 750W / 1000W power supply (80 PLUS Platinum) |
| Operating System | Windows® 11 Pro for Workstations; Ubuntu Linux LTS; Red Hat Enterprise Linux 10.2 |
| Security | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| System Management | (Optional) Aspeed AST2600 graphics / management processor, IPMI 2.0-compliant baseboard management controller (BMC); Intel® vPro® Enterprise with Intel® AMT 16 |
| Dimensions | 165 x 453.9 x 440 mm (6.5 x 17.9 x 17.3 inches, with feet) |
| Weight | 19 kg (41.9 lbs, maximum configuration) |
| Operating Environment | Operating: 10°C (50°F) to 35°C (95°F) |
| Certifications | (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant |
| Warranty | 1-year limited onsite service; 2-year limited onsite service; 3-year limited onsite service |
| Brand | Lenovo |
| Product Line | Lenovo ThinkStation |
Workstations

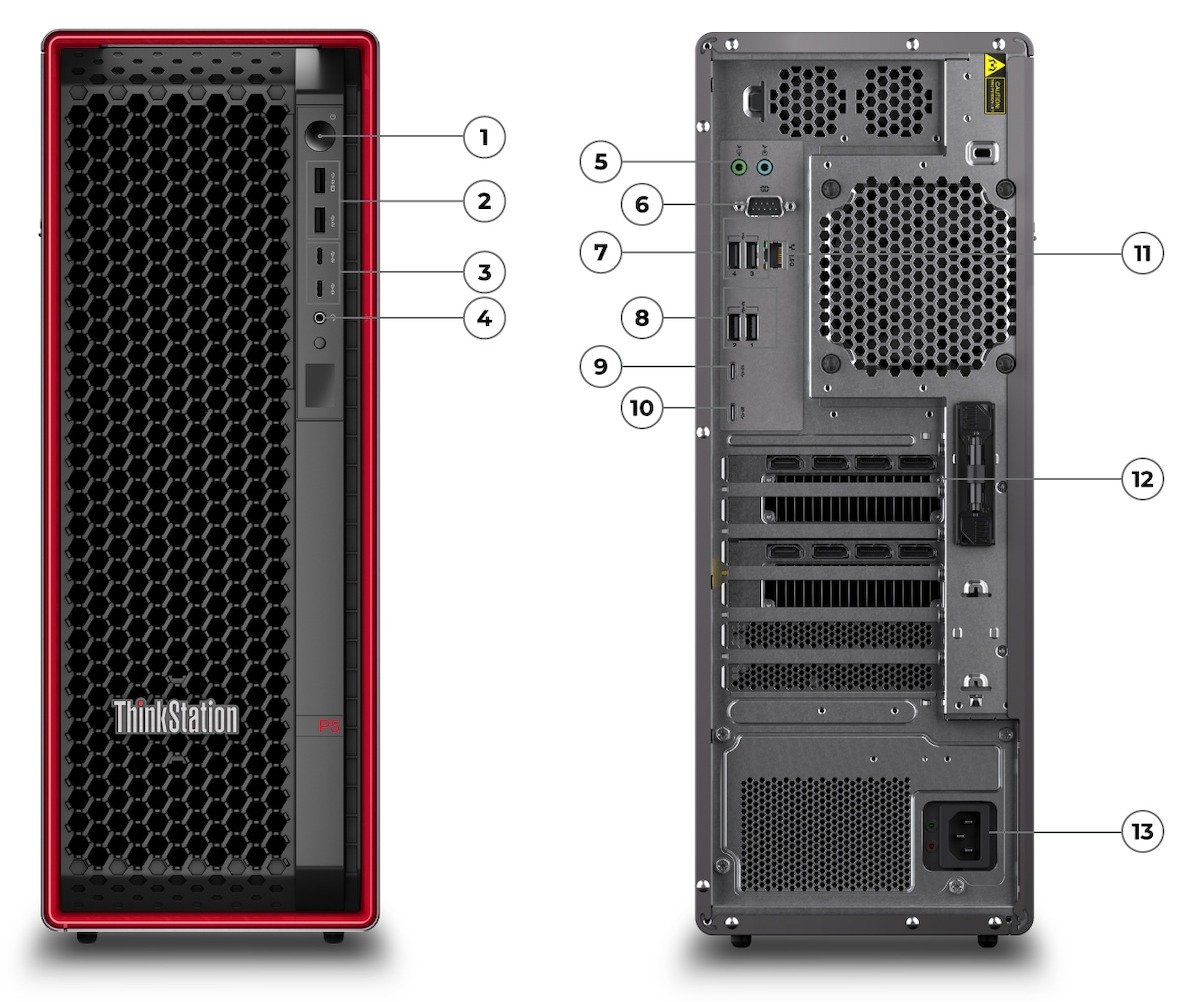

Lenovo ThinkStation P5 Gen 2 (Intel) Tower Workstation
The Lenovo ThinkStation P5 Gen 2 (Intel) Tower Workstation is a tower (33L) workstation powered by up to one 300W Intel Xeon® 600 Series processor, supports up to 48 cores, up to 4.9GHz, with up to two NVIDIA® RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W).
Overview
The Lenovo ThinkStation P5 Gen 2 (Intel) Tower Workstation is a tower workstation from Lenovo. Raw Processing Power Meets AI-Ready Engineering Excellence. It provides Intel Xeon 600 processors and up to dual NVIDIA RTX PRO Blackwell GPUs.
Key Features
- Form Factor: Tower (33L)
- Processor: Up to one 300W Intel Xeon® 600 Series processor, supports up to 48 cores, up to 4.9GHz
- Graphics: Supports up to two NVIDIA® RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W)
- Memory: Up to 1TB (8x 128GB RDIMM); DDR5-6400 RDIMM ECC, maximum transfer speeds of up to 6400 MT/s; 8 DDR5 DIMM slots, 4 channels capable
- Storage: Up to 8 drives (HDD maximum, 4x 3.5″ HDD + 4x M.2 SSD)
- Expansion Slots: Supports 6 PCIe® slots with 3x PCIe® 5.0 slots and 3x PCIe® 4.0 slots
- Networking: 2.5 Gigabit Ethernet, Intel® Ethernet Connection I226-LM, 1x RJ-45, supports Wake-on-LAN
- Power Supply: 750W / 1000W power supply (80 PLUS Platinum)
- Operating System: Windows® 11 Pro for Workstations; Ubuntu Linux LTS; Red Hat Enterprise Linux 10.2
- Certifications: (Optional) EPEAT 2.0 Gold Registered; (Optional) EPEAT 2.0 Silver Registered; RoHS compliant
Applications
- CAD, BIM and 3D modelling
- AI model development and inference at the desk
- Media, video and content creation
- Engineering simulation and data science
Configuration, availability and lead time depend on the required quantity, options and delivery destination. Send your requirement to receive a quotation.
