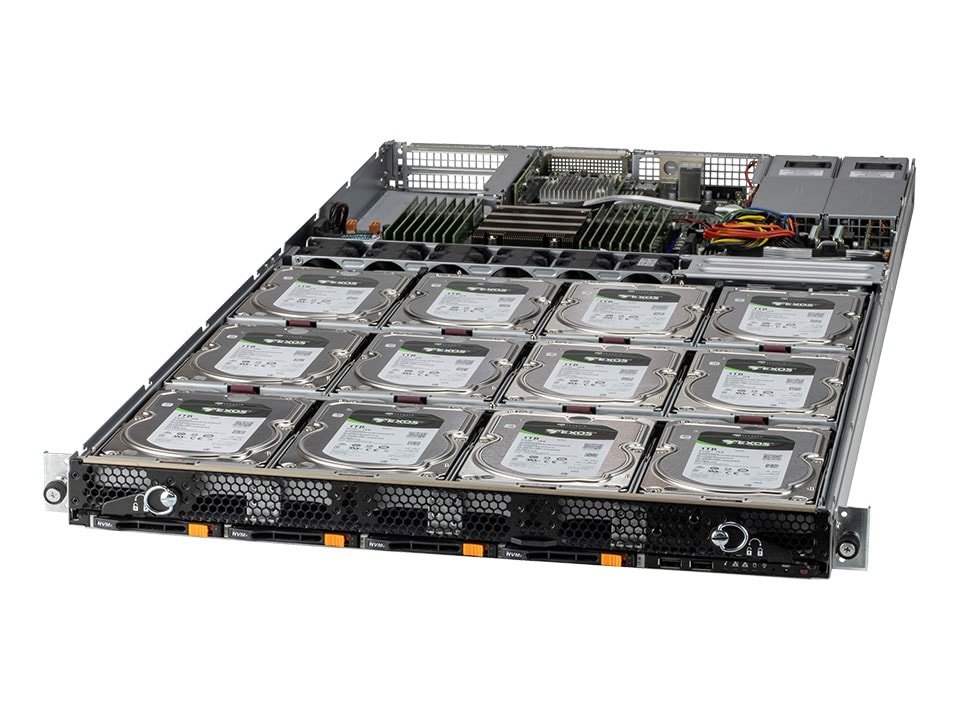

Supermicro ASG-1014S-ACR12N4H 1U MegaDC Server
1U UP internal-mounted storage server with 12 hot-swap 3.5″ SAS/SATA + 4 7mm 2.5″ U.2 NVMe and PCIe 4.0
Description
Product overview
1U UP internal-mounted storage server with 12 hot-swap 3.5" SAS/SATA + 4 7mm 2.5" U.2 NVMe and PCIe 4.0
Key capabilities
- Form Factor: 1U Rackmount Enclosure: (17.6" x 1.7" x 37") Package: (27" x 12" x 53.15")
- Processor: (7003 Series Processor drop- in support requires BIOS version 2.0 or newer); 16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM; 2 PCIe 4.0 x16 (FHHL) Slots, 1 PCIe 4.0 x16 (LP) Slot; 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller; 12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays; 800W Redundant Power SuppliesPlatinum Level High-efficiency(Full redundancy based onconfiguration and application load.); RAID support via Broadcom® 3916; 1 VGA, 1 COM, 4 USB3.0 (4 Rear, 1 Type A), 2 USB2.0 (2 Front); Form Factor 1U Rackmount Enclosure: (17.6" x 1.7" x 37") Package: (27" x 12" x 53.15") Processor Single Socket SP3 AMD EPYC™ 7003/7002 Series Processor
- System Memory: Slot Count: 16 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Drive Bays Configuration: Default: Total 16 bays 12 internal hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 7mm PCIe 4.0 x2 NVMe drive bays M.2: 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280)
- Expansion Slots: PCI-Express (PCIe) Configuration: Default 1 PCIe 4.0 x16 (in x16) HHHL slot 2 PCIe 4.0 x16 (in x16) FHHL slots M.2: 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280)
Technical specifications
| Form Factor | 1U Rackmount Enclosure: (17.6" x 1.7" x 37") Package: (27" x 12" x 53.15") |
|---|---|
| Processor | (7003 Series Processor drop- in support requires BIOS version 2.0 or newer); 16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM; 2 PCIe 4.0 x16 (FHHL) Slots, 1 PCIe 4.0 x16 (LP) Slot; 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller; 12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays; 800W Redundant Power SuppliesPlatinum Level High-efficiency(Full redundancy based onconfiguration and application load.); RAID support via Broadcom® 3916; 1 VGA, 1 COM, 4 USB3.0 (4 Rear, 1 Type A), 2 USB2.0 (2 Front); Form Factor 1U Rackmount Enclosure: (17.6" x 1.7" x 37") Package: (27" x 12" x 53.15") Processor Single Socket SP3 AMD EPYC™ 7003/7002 Series Processor |
| System Memory | Slot Count: 16 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 16 bays 12 internal hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 7mm PCIe 4.0 x2 NVMe drive bays M.2: 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default 1 PCIe 4.0 x16 (in x16) HHHL slot 2 PCIe 4.0 x16 (in x16) FHHL slots M.2: 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 22110(default)/2280) |
| On-Board Devices | SAS: SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support NVMe: NVMe; (Native) Network Connectivity: 2 RJ45 10GBASE-T with Broadcom® BCM57416 |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports (Broadcom® BCM57416) USB: 2 USB 2.0 Type-A ports (front) 4 USB 3.0 Type-A ports (Rear) Video: 1 VGA port (Rear) Serial: 1 COM port (Rear) DOM: 2 SuperDOM (Disk on Module) portswith built-in power TPM: 1 TPM header |
| System Cooling | Fans: Up to 6 Heavy Duty 4cm Fan(s) Air Shroud: 1 Air Shroud |
| Power Supply | 2x 800W Redundant (1 + 1) Platinum Level (94%) power supplies |
| System BIOS | BIOS Type: AMI 256MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 58 lbs (26.3 kg) Net Weight: 39.5 lbs (17.9 kg) Available Color: Black |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Motherboard | Super H12SSW-NTR |
| Chassis | CSE-802TS-R804WBP |
