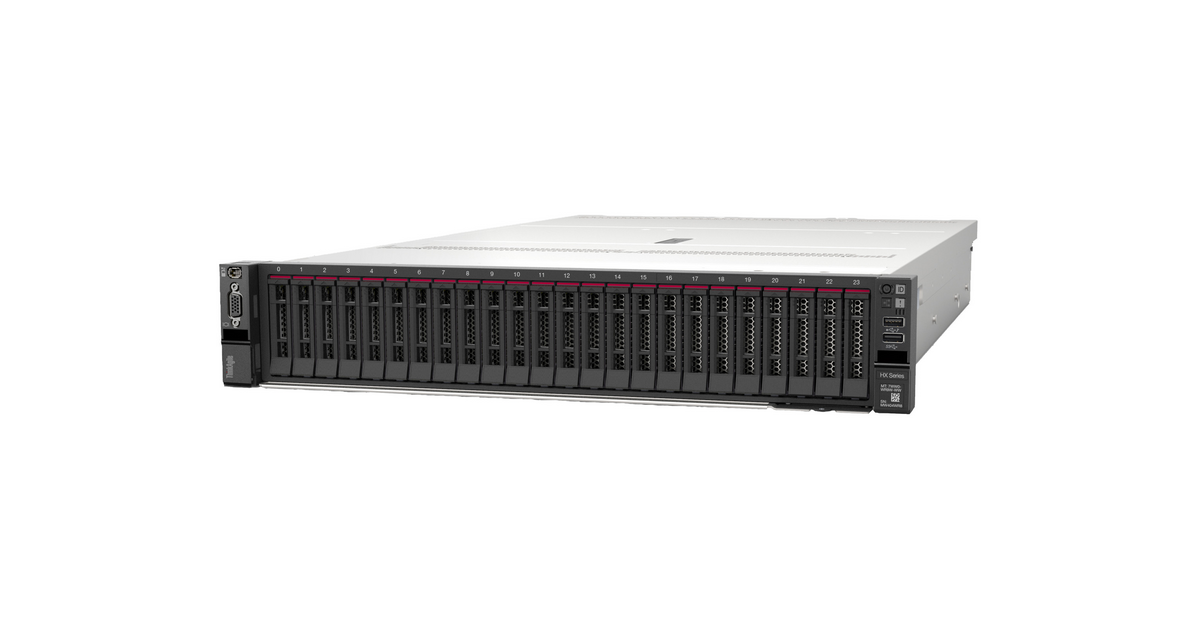

Lenovo ThinkAgile HX665 V3 Integrated System and Certified Node, HX665 V3 Storage Integrated System and Certified Node (AMD 9000)

Description

Product overview

Lenovo ThinkAgile HX665 V3 is a 2U rack. It supports One or two AMD EPYC 9005 Series processors (codenamed "Turin"). Supports processors up to 128 cores, core speeds of up to 4.0 GHz, and TDP ratings of up to 400W. Supports PCIe 5.0 for high performance I/O. and Up to 6TB with 24x 256GB 3DS RDIMMs. Storage, graphics, networking, power, operating system and regional order codes vary by configuration and are confirmed against the official Lenovo product guide or PSREF specification.

Key capabilities

Machine types: 7D9N – 3 year warranty
Form factor: 2U rack
Processor: One or two AMD EPYC 9005 Series processors (codenamed "Turin"). Supports processors up to 128 cores, core speeds of up to 4.0 GHz, and TDP ratings of up to 400W. Supports PCIe 5.0 for high performance I/O.
Chipset: Not applicable (platform controller hub functions are integrated into the processor)
Memory: 24 DIMM slots with two processors (12 DIMM slots per processor). Each processor has 12 memory channels, with 1 DIMM per channel (DPC). Lenovo TruDDR5 RDIMMs, 3DS RDIMMs, and 9×4 RDIMMs are supported, up to 4800 MHz

Technical specifications

Machine types	7D9N – 3 year warranty
Form factor	2U rack
Processor	One or two AMD EPYC 9005 Series processors (codenamed "Turin"). Supports processors up to 128 cores, core speeds of up to 4.0 GHz, and TDP ratings of up to 400W. Supports PCIe 5.0 for high performance I/O.
Chipset	Not applicable (platform controller hub functions are integrated into the processor)
Memory	24 DIMM slots with two processors (12 DIMM slots per processor). Each processor has 12 memory channels, with 1 DIMM per channel (DPC). Lenovo TruDDR5 RDIMMs, 3DS RDIMMs, and 9×4 RDIMMs are supported, up to 4800 MHz
Memory maximum	Up to 6TB with 24x 256GB 3DS RDIMMs
Memory protection	ECC, SDDC, Patrol/Demand Scrubbing, Bounded Fault, DRAM Address Command Parity with Replay, DRAM Uncorrected ECC Error Retry, On-die ECC, ECC Error Check and Scrub (ECS), Post Package Repair
Disk drive bays	HX665 V3 – Integrated System and Certified Node: Front drive bays: 24 x2.5” SATA/SAS, 24x 2.5” NVMe; Rear Drive Bays: None; HX665 V3 Storage – Integrated System and Certified Node: Front drive bays: 12×3.5” SATA/SAS; Rear drive bays: 4×2.5” SATA/SAS (optional); ; Internal M.2 module supporting up to two M.2 drives, for OS boot support
Storage controller	440- 8i/16i SAS HBA
Network interfaces	Dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface at the rear of the server (rear-accessible). Supports a variety of 2-port and 4-port adapters with 10GbE and 25GbE network connectivity. One port can optionally be shared with the XClarity Controller 2 (XCC2) management processor for Wake-on-LAN and NC-SI support. Additional PCIe network adapters supported in PCIe slots.
PCIe slots	Up to 10x PCIe slots with rear access, plus a slot dedicated to the OCP adapter. Slot are either PCIe 5.0 or 4.0 depending on riser selection and rear drive bay selection. The use of slots X-10 require two processors.; Slots are configured using three riser cards. Riser 1 (slots 1-3) and Riser 2 (slots 4-6) are installed in slots in the system board, Riser 3 (slots 7-8) is cabled to ports on the system board.; A variety of riser cards are available.; For 2.5-inch front drive configurations, the server supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots.; The server alternatively supports slots at the front of the server (confi…
GPU support	Wave 2 Support

Configuration note

Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
