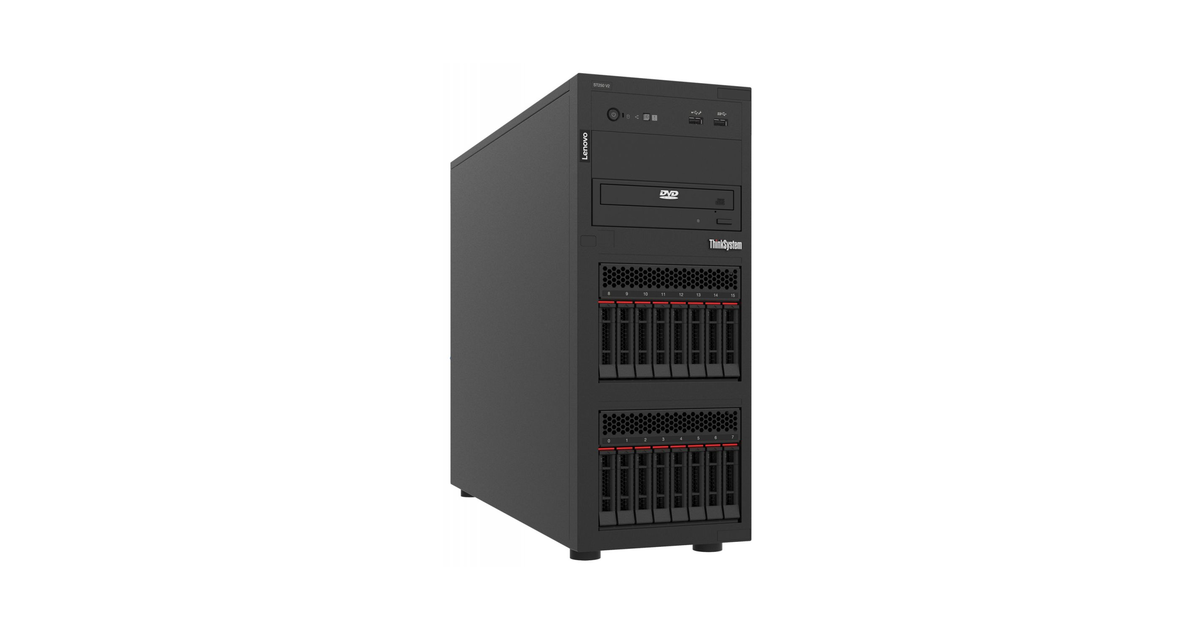

Lenovo ThinkSystem ST250 V2 Server
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed
Description
Product overview
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed
Key capabilities
- Machine type: 7D8G – 1 year warranty; 7D8F – 3 year warranty
- Form factor: Tower (can be installed in a rack with the available Rack Mount Kit)
- Processor: One Intel processor. Choose from:; Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz; Intel Pentium G6405, G6505 and G6605 processors ("Comet Lake Refresh") with 2 cores, with core speeds up to 4.3 GHz
- Chipset: Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform
- Memory: Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs.
Technical specifications
| Machine type | 7D8G – 1 year warranty; 7D8F – 3 year warranty |
|---|---|
| Form factor | Tower (can be installed in a rack with the available Rack Mount Kit) |
| Processor | One Intel processor. Choose from:; Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz; Intel Pentium G6405, G6505 and G6605 processors ("Comet Lake Refresh") with 2 cores, with core speeds up to 4.3 GHz |
| Chipset | Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform |
| Memory | Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs. |
| Memory maximum | Up to 128 GB using 4x 32 GB UDIMMs. |
| Memory protection | Error-correcting code (ECC) |
| Disk drive bays | Available configurations:; 8x or 16x 2.5-inch SAS/SATA hot-swap drive bays; 4x or 8x 3.5-inch SAS/SATA hot-swap drive bays; Both 4x 3.5-inch and 8x 2.5-inch SAS/SATA hot-swap drive bays; Up to 8x 3.5-inch simple-swap SATA drive bays; 7x 3.5-inch simple-swap SATA drive bays + 1x 3.5-inch simple-swap NVMe drive bay; In addition, the ST250 V2 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot. |
| Maximum internal storage | 2.5-inch drives: 122.88TB using 16x 7.68TB 2.5-inch SAS/SATA SSDs; 28.8TB using 16x 1.8TB 2.5-inch HDDs; 3.5-inch drives: 144TB using 8x 18TB 3.5-inch HDDs; 7.68TB using 8x 960GB 3.5-inch SAS/SATA SSDs; Intermix of SAS and SATA is supported. |
| Storage controller | Onboard 6 Gb SATA for simple-swap drive configurations, using embedded Intel RSTe software RAID, supporting RAID 0, 1, 10, 5, 50; 12 Gb SAS/SATA RAID adapters; 12 Gb SAS/SATA host bus adapters |
| Optical drive bays | Two half-height 5.25-inch bays for optical or tape drives. Supports SATA DVD-ROM or DVD-RW (multiburner). Note : If the onboard SATA controller is used to connect the drive bays, then only 6 drives can be installed if an optical drive is installed. |
| Tape drive bays | Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX drive. |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
