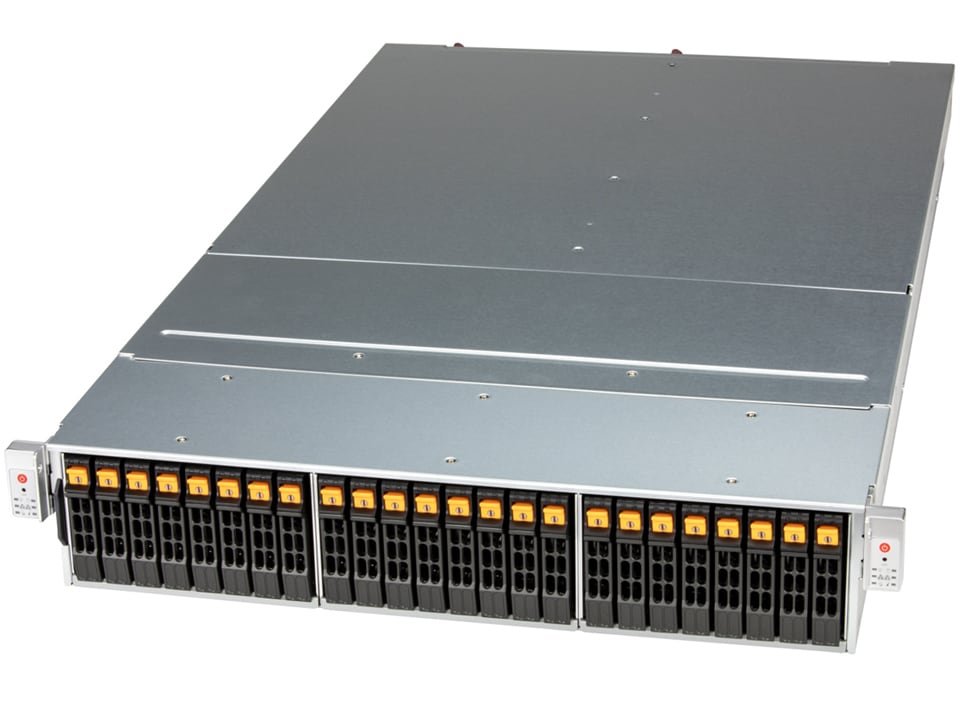

Supermicro SSG-221E-DN2R24R 2U Storage Server
2U all-flash SBB with 24 U.2 NVMe drives and PCIe 5.0
Description
Product overview
2U all-flash SBB with 24 U.2 NVMe drives and PCIe 5.0
Key capabilities
- Form Factor: 2U Rackmount Enclosure: 449.4 x 88 x 762mm (17.7" x 3.47" x 30") Package: 670 x 245 x 1100mm (26.37" x 9.64" x 43.3")
- Processor: Single Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors
- System Memory: Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
- Drive Bays Configuration: Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays M.2: 2 M.2 NVMe slots (M-key 2280/22110)
- Expansion Slots: PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x16 HHHL slots 2 PCIe 5.0 x8 HHHL slots M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key)
Technical specifications
| Form Factor | 2U Rackmount Enclosure: 449.4 x 88 x 762mm (17.7" x 3.47" x 30") Package: 670 x 245 x 1100mm (26.37" x 9.64" x 43.3") |
|---|---|
| Processor | Single Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors |
| System Memory | Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays M.2: 2 M.2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x16 HHHL slots 2 PCIe 5.0 x8 HHHL slots M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key) |
| On-Board Devices | 2 RJ45 10GbE with Intel® X710 |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports USB: 2 USB 3.0 ports (rear) Video: 1 VGA port Serial: 1 COM port (Rear) |
| System Cooling | Fans: Up to 6 Heavy Duty 6cm Fan(s) Air Shroud: 2 Air Shrouds |
| Power Supply | 2x 2000W Redundant Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 7 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 89.63 lbs (40.66 kg) Net Weight: 66.82 lbs (30.31 kg) Available Color: Silver |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% () |
| Motherboard | Super X13SEB-TF |
| Chassis | CSE-229TS-R000NP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
