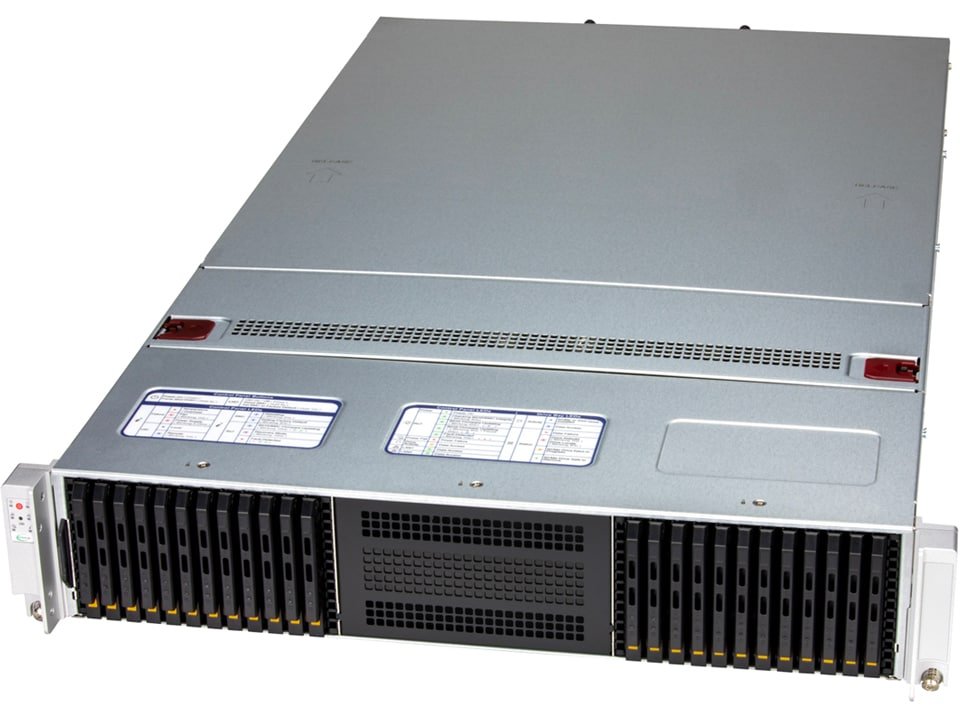

Supermicro SSG-222B-NE3X24R 2U Storage Server
2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0
Description
Product overview
2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0
Key capabilities
- Form Factor: 2U Rackmount Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2")
- Processor: Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU GPU Max GPU Count: Up to 2 double-width GPUs Supported GPU: NVIDIA PCIe: L40S, RTX A2000
- System Memory: Slot Count: 32 DIMM slots/2 Channels Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM/LRDIMM
- Drive Bays Configuration: Default: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays Option A: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays Option B: Total 32 bays 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays Option C: Total 16 bays 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3* drive bays (*CXL Type 3/NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key 2280/22110)
- Expansion Slots: PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot Option A 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot Option B 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) DATASHEET More details here 1 PCIe 5.0 x8 FHFL slot Option C 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot CXL Support: Up to 8 CXL 2.0 x8 Type 3 devices
Technical specifications
| Form Factor | 2U Rackmount Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2") |
|---|---|
| Processor | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU GPU Max GPU Count: Up to 2 double-width GPUs Supported GPU: NVIDIA PCIe: L40S, RTX A2000 |
| System Memory | Slot Count: 32 DIMM slots/2 Channels Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays Option A: Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays Option B: Total 32 bays 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays Option C: Total 16 bays 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3* drive bays (*CXL Type 3/NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot Option A 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot Option B 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) DATASHEET More details here 1 PCIe 5.0 x8 FHFL slot Option C 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot CXL Support: Up to 8 CXL 2.0 x8 Type 3 devices |
| On-Board Devices | Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 1 USB 3.0 port (Rear) (via DC-SCM) 1 USB 2.0 port (Rear) (via DC-SCM) Video: 1 VGA port ©2026 Copyright Super Micro Computer, Inc. All rights reserved. |
| System Cooling | Fans: Up to 4x 8cm heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 64MB SPI Flash |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 7 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 83.78 lbs (38 kg) Net Weight: 61.73 lbs (28 kg) Available Color: Silver |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Motherboard | Super X14DBHM |
| Chassis | CSE-246E3-R2K09P |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
