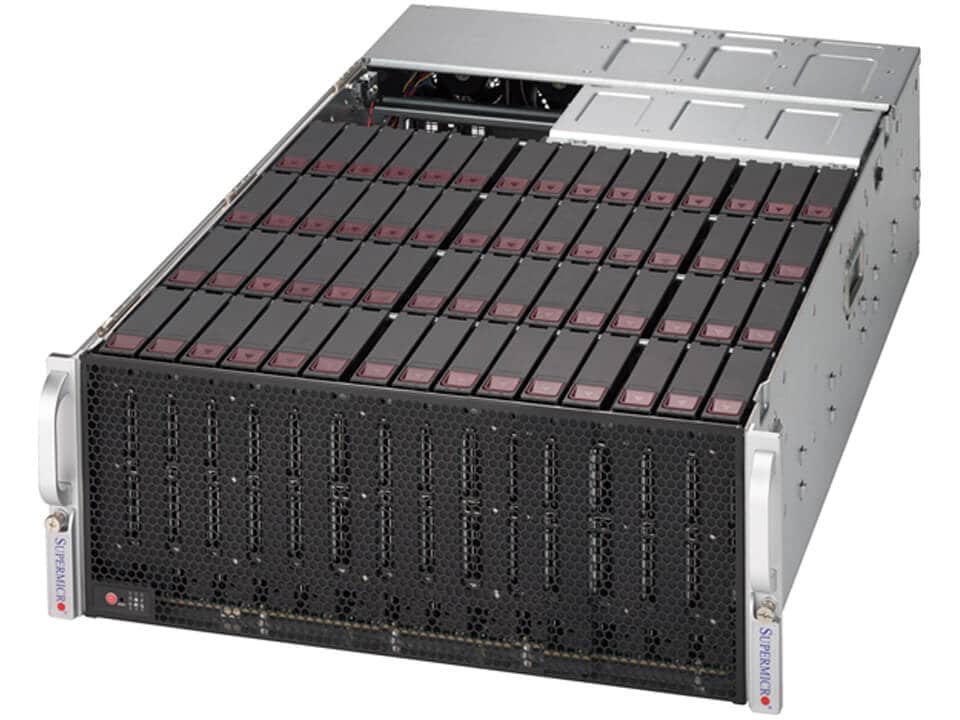

Supermicro SSG-540P-E1CTR60H 4U Storage Server
4U top-loading storage server with 60 hot-swap SAS/SATA bays (SAS hardware RAID) and PCIe 4.0
Description
Product overview
4U top-loading storage server with 60 hot-swap SAS/SATA bays (SAS hardware RAID) and PCIe 4.0
Key capabilities
- Form Factor: 4U Rackmount Enclosure: (17.2" x 7" x 30.2") Package: 711 x 845 x 1080mm (28" x 33.25" x 42.5")
- Processor: Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 38C/76T; Up to 57MB Cache
- System Memory: Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
- Drive Bays Configuration: Default: Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays M.2: 1 M.2 PCIe 3.0 x4 SATA slot (M-key)
- Expansion Slots: Default 3 PCIe 4.0 x8 LP slots 2 PCIe 4.0 x16 LP slots
Technical specifications
| Form Factor | 4U Rackmount Enclosure: (17.2" x 7" x 30.2") Package: 711 x 845 x 1080mm (28" x 33.25" x 42.5") |
|---|---|
| Processor | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 38C/76T; Up to 57MB Cache |
| System Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series |
| Drive Bays Configuration | Default: Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays M.2: 1 M.2 PCIe 3.0 x4 SATA slot (M-key) |
| Expansion Slots | Default 3 PCIe 4.0 x8 LP slots 2 PCIe 4.0 x16 LP slots |
| On-Board Devices | SATA: SATA (6Gbps) Network Connectivity: 2 RJ45 10GBASE-T with Intel® X550 BMC: ASPEED AST2600 BMC |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports USB: 4 USB 3.0 ports (rear) Video: 1 VGA port DOM: 2 SuperDOM (Disk on Module) ports |
| System Cooling | Fans: Up to 5 Heavy Duty 8cm Fan(s) Air Shroud: 1 Air Shroud |
| Power Supply | ; Form Factor 4U Rackmount Enclosure: (17.2" x 7" x 30.2") Package: 711 x 845 x 1080mm (28" x 33.25" x 42.5") Processor Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 38C/76T; Up to 57MB Cache System Memory Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series Drive Bays Configuration Default: Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays M.2: 1 M.2 PCIe 3.0 x4 SATA slot (M-key) Expansion Slots Default 3 PCIe 4.0 x8 LP slots 2 PCIe 4.0 x16 LP slots On-Board Devices SATA: SATA (6Gbps) Network Connectivity: 2 RJ45 10GBASE-T with Intel® X550 BMC: ASPEED AST2600 BMC Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LA… |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 169.5 lbs (76.9 kg) Net Weight: 117 lbs (53 kg) Available Color: Black |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% () |
| Motherboard | Super X12SPi-TF |
| Chassis | CSV-946STS-R1K6LPP |
