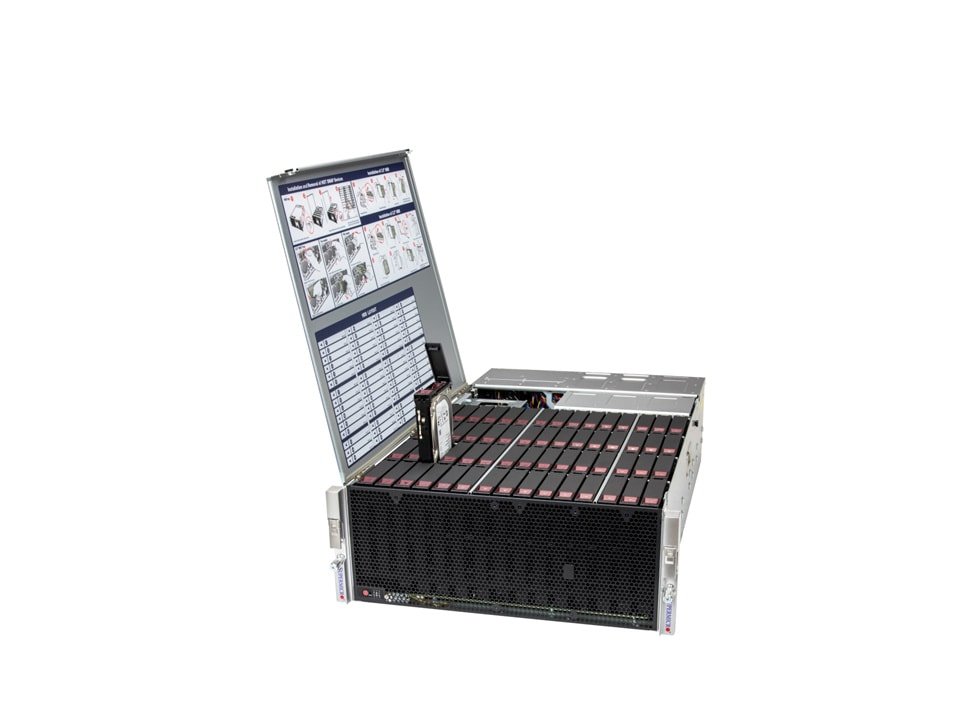

Supermicro SSG-542B-CE1CR60L 4U Storage Server
4U Storage server with 60 hot-swap 3.5″ SAS/SATA bays and PCIe 5.0
Description
Product overview
4U Storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 5.0
Key capabilities
- Form Factor: 4U Rackmount Enclosure: 437 x 178 x 767.08mm (17.2" x 7" x 26") Package: 711 x 845 x 1080mm (28" x 33.25" x 42.5")
- Processor: Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache
- System Memory: Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
- Drive Bays Configuration: Default: Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 5.0 x8 NVMe* drive bays Option B: Total 4 bays 4 rear hot-swap 2.5" SATA* drive bays (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
- Expansion Slots: Default 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots
Technical specifications
| Form Factor | 4U Rackmount Enclosure: 437 x 178 x 767.08mm (17.2" x 7" x 26") Package: 711 x 845 x 1080mm (28" x 33.25" x 42.5") |
|---|---|
| Processor | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
| System Memory | Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 5.0 x8 NVMe* drive bays Option B: Total 4 bays 4 rear hot-swap 2.5" SATA* drive bays (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
| Expansion Slots | Default 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots |
| On-Board Devices | SATA: SATA (6Gbps) NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Chipset: intel System on Chip Network Connectivity: 2 RJ45 10GBASE-T with Intel® X550 |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports USB: 2 USB 3.2 Gen1 ports (Header) 2 USB 3.2 Gen1 ports (Rear) Video: 1 VGA port TPM: 1 TPM header |
| System Cooling | Fans: Up to 5 Heavy Duty 8cm Fan(s) Air Shroud: 1 Air Shroud |
| Power Supply | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
| System BIOS | BIOS Type: AMI 64MB UEFI BIOS Features: ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| Dimensions and Weight | Weight: Gross Weight: 169.5 lbs (76.9 kg) Net Weight: 117 lbs (53 kg) Available Color: Black |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% () |
| Motherboard | Super X14SBI-TF |
| Chassis | CSE-946STS-R1K63LPP |
