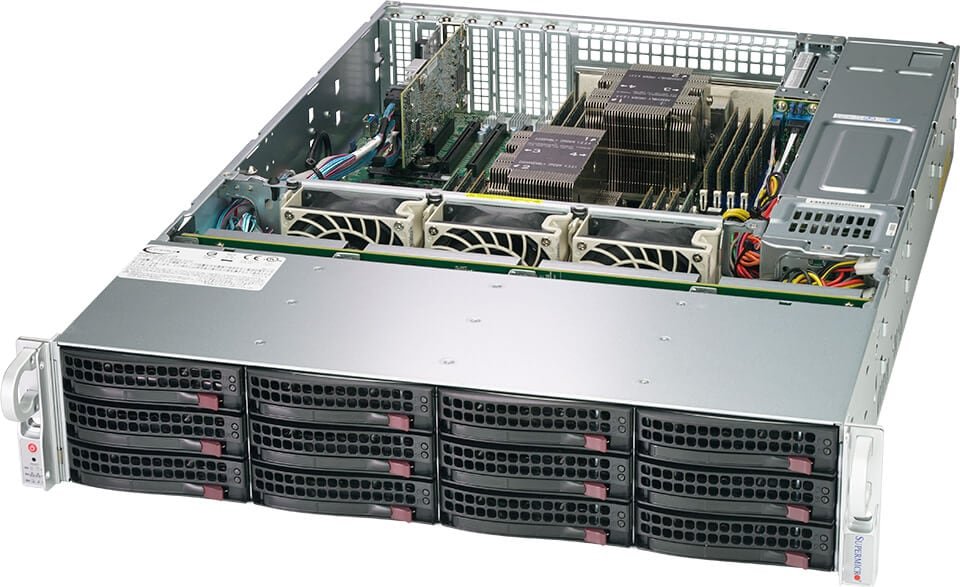

Supermicro SSG-620P-ACR12L 2U Storage Server
2U front-loading storage server with 12 hot-swap 3.5″ hybrid SAS/SATA bays and PCIe 4.0
Description
Product overview
2U front-loading storage server with 12 hot-swap 3.5" hybrid SAS/SATA bays and PCIe 4.0
Key capabilities
- Form Factor: 2U Rackmount Enclosure: (17.3" x 3.5" x 25.5") Package: (27" x 12" x 35")
- Processor: s; 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots; 2x 10Gbe; 12x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe; 3 heavy duty fans with optimal fan speed control; 1 Air Shroud; Broadcom® 3816 Controller; Form Factor 2U Rackmount Enclosure: (17.3" x 3.5" x 25.5") Package: (27" x 12" x 35") Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 38C/76T; Up to 57MB Cache per CPU
- System Memory: Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series
- Drive Bays Configuration: Default: Total 14 bays 8 front hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 1 M.2 NVMe slot (M-key)
- Expansion Slots: Default 4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot
Technical specifications
| Form Factor | 2U Rackmount Enclosure: (17.3" x 3.5" x 25.5") Package: (27" x 12" x 35") |
|---|---|
| Processor | s; 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots; 2x 10Gbe; 12x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe; 3 heavy duty fans with optimal fan speed control; 1 Air Shroud; Broadcom® 3816 Controller; Form Factor 2U Rackmount Enclosure: (17.3" x 3.5" x 25.5") Package: (27" x 12" x 35") Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 38C/76T; Up to 57MB Cache per CPU |
| System Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 Supports Intel® Optane™ persistent memory 200 series |
| Drive Bays Configuration | Default: Total 14 bays 8 front hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 1 M.2 NVMe slot (M-key) |
| Expansion Slots | Default 4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot |
| On-Board Devices | Network Connectivity: 2 RJ45 10GBASE-T with Intel® X550 BMC: ASPEED AST2600 BMC |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports USB: 4 USB 3.0 ports (rear) Video: 1 VGA port DOM: 2 SuperDOM (Disk on Module) ports |
| System Cooling | Fans: Up to 3 Heavy Duty 8cm Fan(s) Air Shroud: 1 Air Shroud |
| Power Supply | 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies |
| System BIOS | BIOS Type: AMI 128MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 61 lbs (27.7 kg) Net Weight: 34 lbs (15.4 kg) Available Color: Black |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% () |
| Motherboard | Super X12DPi-NT6 |
| Chassis | CSV-826BTS-R1K23LPBP2 |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
