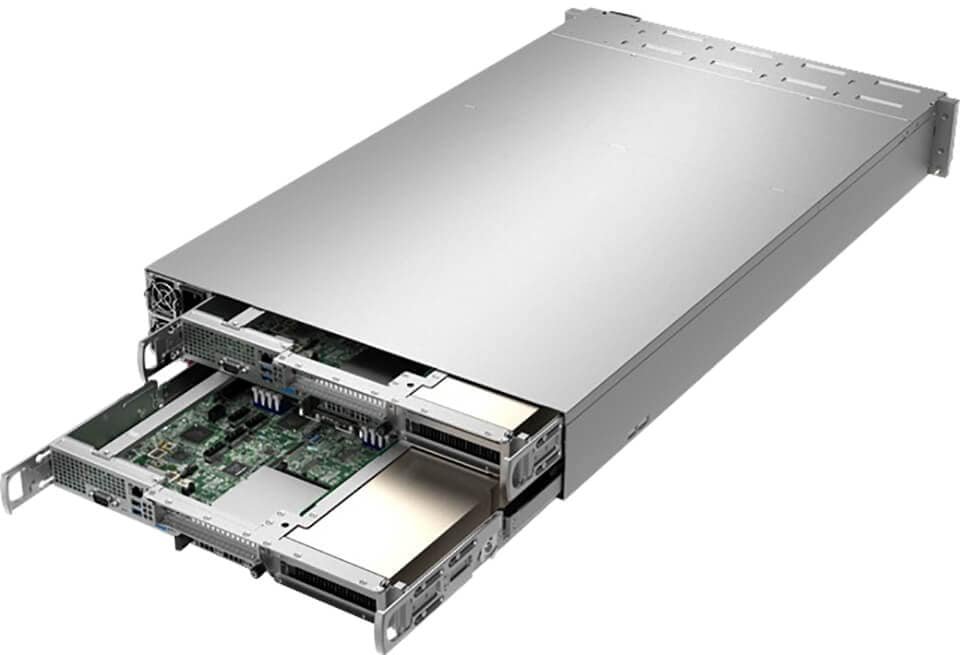

Supermicro SYS-210GP-DNR 2U GPU Server
2U 2-Node System with UP Intel and Up to 3 GPUs per Node
Description
Product overview
2U 2-Node System with UP Intel and Up to 3 GPUs per Node
Key capabilities
- Form Factor: 2U Rackmount Enclosure: 447 x 88 x 760mm (17.6" x 3.47" x 29.9") Package: 600 x 240 x 1100mm (23.62" x 9.44" x 43.3")
- Processor: ; Intel® C621A Chipset; 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs; 3 PCIe Gen 4.0 x16 FHFL DW; 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays 2 M.2 NVMe and SATA for boot drive only; AST2500 BMC; Form Factor 2U Rackmount Enclosure: 447 x 88 x 760mm (17.6" x 3.47" x 29.9") Package: 600 x 240 x 1100mm (23.62" x 9.44" x 43.3") Processor Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache GPU Max GPU Count: Up to 3 double-width or 3 single-width GPUs Supported GPU: NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe
- System Memory: Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Drive Bays Configuration: Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 NVMe/SATA slots (M-key)
- Expansion Slots: Default 3 PCIe 4.0 x16 FHFL double-width slots
Technical specifications
| Form Factor | 2U Rackmount Enclosure: 447 x 88 x 760mm (17.6" x 3.47" x 29.9") Package: 600 x 240 x 1100mm (23.62" x 9.44" x 43.3") |
|---|---|
| Processor | ; Intel® C621A Chipset; 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs; 3 PCIe Gen 4.0 x16 FHFL DW; 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays 2 M.2 NVMe and SATA for boot drive only; AST2500 BMC; Form Factor 2U Rackmount Enclosure: 447 x 88 x 760mm (17.6" x 3.47" x 29.9") Package: 600 x 240 x 1100mm (23.62" x 9.44" x 43.3") Processor Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache GPU Max GPU Count: Up to 3 double-width or 3 single-width GPUs Supported GPU: NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe |
| System Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) |
| Expansion Slots | Default 3 PCIe 4.0 x16 FHFL double-width slots |
| On-Board Devices | Via AIOM |
| Input / Output | 1 VGA port |
| System Cooling | Fans: Up to 4 Removable heavy-duty Fan(s) |
| Power Supply | 1x 2600W Redundant Titanium Level (96%) power supply |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg) Available Color: Black Front & Silver Body |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X12SPG-NF |
| Chassis | CSE-227GTS-R2K63P |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
