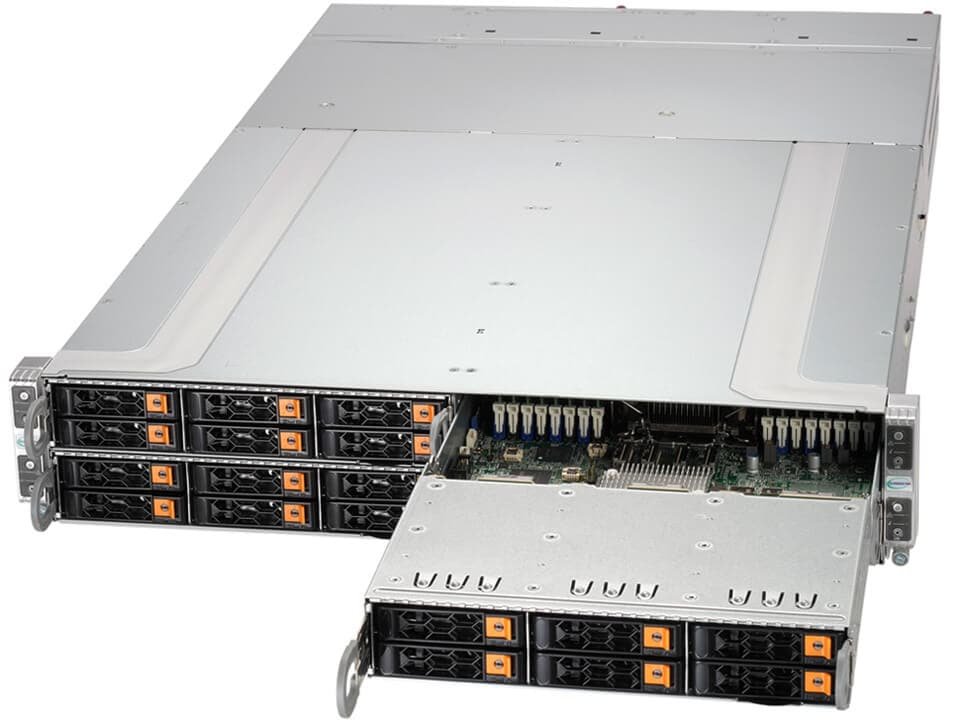

Supermicro SYS-211GT-HNC8R 2U GrandTwin Server
2U 4-Node GrandTwin with up to 6 hot-swap 2.5″ NVMe/SAS/SATA drives per node and rear I/O
Description
Product overview
2U 4-Node GrandTwin with up to 6 hot-swap 2.5" NVMe/SAS/SATA drives per node and rear I/O
Key capabilities
- Form Factor: 2U Rackmount Enclosure: 449 x 88 x 711.2mm (17.67" x 3.46" x 28") Package: 626 x 248 x 1150mm (24.65" x 9.76" x 45.28")
- Processor: Single Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache
- System Memory: Slot Count: 16 DIMM slots/2 Channels Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
- Drive Bays Configuration: Default: Total 6 bays 6 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key)
- Expansion Slots: Default 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Technical specifications
| Form Factor | 2U Rackmount Enclosure: 449 x 88 x 711.2mm (17.67" x 3.46" x 28") Package: 626 x 248 x 1150mm (24.65" x 9.76" x 45.28") |
|---|---|
| Processor | Single Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache |
| System Memory | Slot Count: 16 DIMM slots/2 Channels Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 6 bays 6 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) |
| Expansion Slots | Default 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | SAS: SAS (12Gbps) via Broadcom® 3808; (IT mode) Network Connectivity: Via IO Module |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports Video: 1 VGA port |
| System Cooling | Fans: Up to 2x 16K RPM Heavy Duty 8cm Fan(s) |
| Power Supply | 1x 2200W Redundant Titanium Level (96%) power supply |
| System BIOS | BIOS Type: AMI 32MB Flash ROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory. Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment |
| Dimensions and Weight | Weight: Gross Weight: 88 lbs (39.9 kg) Net Weight: 68 lbs (30.8 kg) Available Color: Silver |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Motherboard | Super X13SET-GC |
| Chassis | CSE-GT214BC-R2K21BP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
