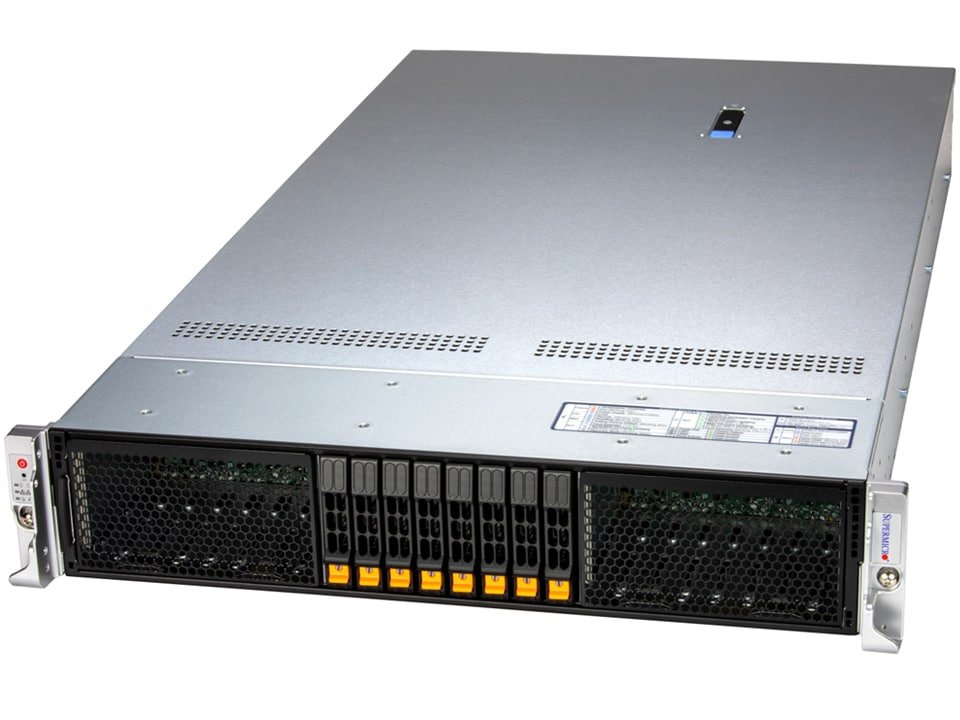

Supermicro SYS-212HA-TN 2U Hyper Server

Description

Product overview

2U UP Hyper supporting up to 24 hot-swap 2.5" NVMe/SAS/SATA bays and up to 4 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

Key capabilities

Form Factor: 2U Rackmount Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74") Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31")
Processor: s with P-cores and Xeon 6+ processors; 12 DIMM slots support RDIMM / MRDIMM; Double width add-on card support.; Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).; Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.; Trusted Platform Module (TPM) 2.0 onboard.; Modularized and Tool-less design for easy serviceability.; Form Factor 2U Rackmount Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74") Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31") Processor Single Socket BR (LGA-7529) Intel® Xeon® 6900 Series processors with P-cores and Intel Xeon 6+ processors P-cores: Up to 128C/256T; Up to 504MB Cache E-cores: Up to 288C/288T; Up to 576MB Cache GPU Max GPU Count: Up to 1 double-…
System Memory: Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (1DPC): Up to 1.5TB 8000MT/s ECC DDR5 RDIMM (E-core) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 3DS RDIMM (P-core only)
Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 24 bays 24 front hot-swap 2.5" SAS*/SATA* drive bays Option B: Total 16 bays 16 front hot-swap 2.5" SAS*/SATA* drive bays Option C: Total 4 bays 4 front hot-swap 2.5" NVMe* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
Expansion Slots: Option A* 1 PCIe 5.0 x16 FH/10.5"L double-width slot 1 PCIe 5.0 x8 FHFL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* DATASHEET More details here 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 1 PCIe 5.0 x16 FH/10.5"L double-width slot 2 PCIe 5.0 x16 FHFL double-width slots

Technical specifications

Form Factor	2U Rackmount Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74") Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31")
Processor	s with P-cores and Xeon 6+ processors; 12 DIMM slots support RDIMM / MRDIMM; Double width add-on card support.; Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).; Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.; Trusted Platform Module (TPM) 2.0 onboard.; Modularized and Tool-less design for easy serviceability.; Form Factor 2U Rackmount Enclosure: 437 x 88.9 x 806.2mm (17.2" x 3.5" x 31.74") Package: 672 x 253 x 1100mm (26.46" x 9.96" x 43.31") Processor Single Socket BR (LGA-7529) Intel® Xeon® 6900 Series processors with P-cores and Intel Xeon 6+ processors P-cores: Up to 128C/256T; Up to 504MB Cache E-cores: Up to 288C/288T; Up to 576MB Cache GPU Max GPU Count: Up to 1 double-…
System Memory	Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (1DPC): Up to 1.5TB 8000MT/s ECC DDR5 RDIMM (E-core) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 3DS RDIMM (P-core only)
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option A: Total 24 bays 24 front hot-swap 2.5" SAS/SATA drive bays Option B: Total 16 bays 16 front hot-swap 2.5" SAS/SATA drive bays Option C: Total 4 bays 4 front hot-swap 2.5" NVMe* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
Expansion Slots	Option A* 1 PCIe 5.0 x16 FH/10.5"L double-width slot 1 PCIe 5.0 x8 FHFL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* DATASHEET More details here 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 1 PCIe 5.0 x16 FH/10.5"L double-width slot 2 PCIe 5.0 x16 FHFL double-width slots
On-Board Devices	NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Network Connectivity: Via AIOM
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.2 Gen1 ports (Rear) Video: 1 VGA port ©2026 Copyright Super Micro Computer, Inc. All rights reserved.
System Cooling	Fans: Up to 6 counter-rotating 60x60x56mm Fan(s)
Power Supply	2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
System BIOS	BIOS Type: AMI 64MB SPI Flash
Management	SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg) Available Color: Silver
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Motherboard	Super X14SBH-AP
Chassis	CSE-HS201-R000NFP

Configuration note

Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
