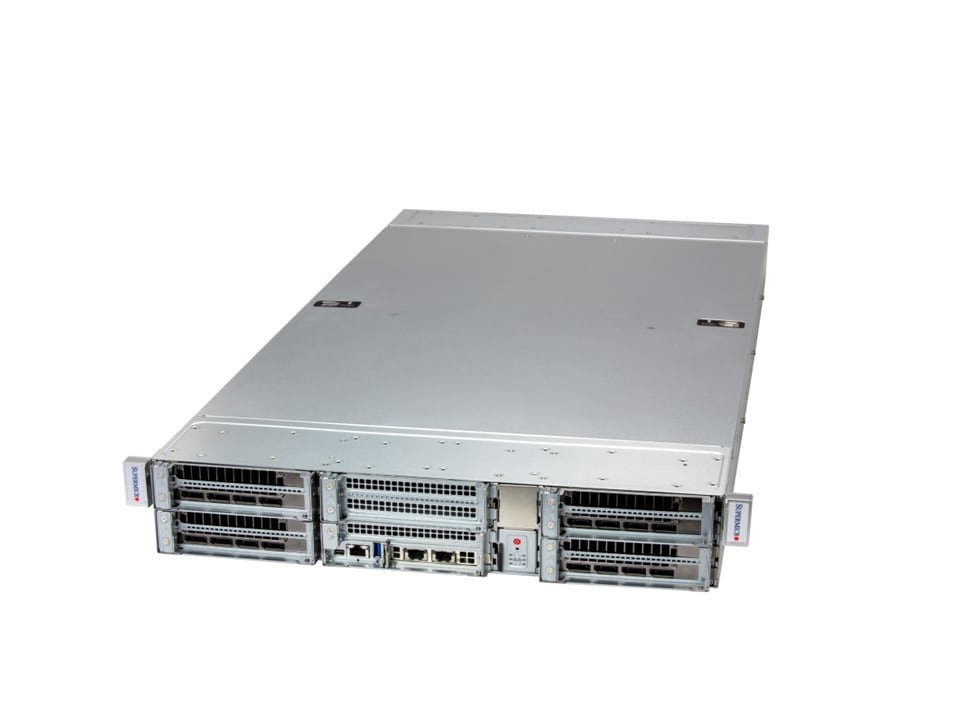

Supermicro SYS-221GE-FNR2 2U GPU Server
DP Intel 2U PCIe GPU system with up to 4 double-width PCIe GPU accelerator cards
Description
Product overview
DP Intel 2U PCIe GPU system with up to 4 double-width PCIe GPU accelerator cards
Key capabilities
- Form Factor: 2U Rackmount Enclosure: 438.4 x 87 x 900mm (17.3" x 3.43" x 35.43") Package: 700 x 280 x 1200mm (27.56" x 11.02" x 47.24")
- Processor: Dual Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 4 double-width GPUs Supported GPU: NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional)
- System Memory: Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5
- Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe/SATA slots (M-key)
- Expansion Slots: Default 1 PCIe 5.0 x16 HHFL slot 3 PCIe 5.0 x16 FHFL slots
Technical specifications
| Form Factor | 2U Rackmount Enclosure: 438.4 x 87 x 900mm (17.3" x 3.43" x 35.43") Package: 700 x 280 x 1200mm (27.56" x 11.02" x 47.24") |
|---|---|
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 4 double-width GPUs Supported GPU: NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional) |
| System Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) |
| Expansion Slots | Default 1 PCIe 5.0 x16 HHFL slot 3 PCIe 5.0 x16 FHFL slots |
| On-Board Devices | Chipset: Intel® C741 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 ports (rear) Video: 1 mini-DP port |
| System Cooling | Fans: Up to 8x 6cm heavy duty fans with optimal fan speed control |
| Power Supply | 1x 2000W Redundant Titanium Level (96%) power supply |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 ports (rear) Video: 1 mini-DP port |
| Dimensions and Weight | Weight: Gross Weight: 103 lbs (46.8 kg) Net Weight: 88 lbs (40 kg) Available Color: Silver |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| Motherboard | Super X13DEH |
| Chassis | CSE-MG204-R000NDFP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
