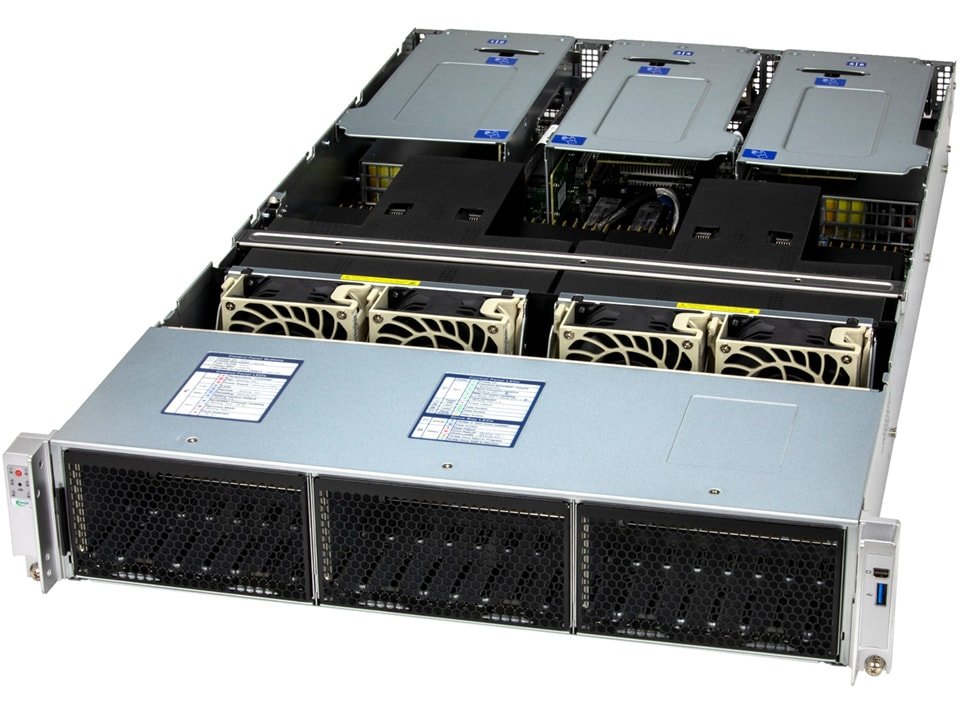

Supermicro SYS-222C-TN 2U CloudDC Server
2U CloudDC with DC-MHS, 24 hot-swap 2.5” NVMe/SATA/SAS bays, 6 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16 AIOM slots
Description
Product overview
2U CloudDC with DC-MHS, 24 hot-swap 2.5” NVMe/SATA/SAS bays, 6 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16 AIOM slots
Key capabilities
- Form Factor: 2U Rackmount Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2")
- Processor: Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, RTX 2000 Ada, RTX 4000 Ada Generation
- System Memory: Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM
- Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
- Expansion Slots: Default 4 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option B 6 PCIe 5.0 x16 (in x16) FHFL slots DATASHEET More details here 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
Technical specifications
| Form Factor | 2U Rackmount Enclosure: 438 x 88 x 780mm (17.25" x 3.47" x 30.7") Package: 597 x 239 x 1097mm (23.5" x 9.4" x 43.2") |
|---|---|
| Processor | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, RTX 2000 Ada, RTX 4000 Ada Generation |
| System Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) |
| Expansion Slots | Default 4 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 5.0 x8 (in x16) FHFL slot 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) Option B 6 PCIe 5.0 x16 (in x16) FHFL slots DATASHEET More details here 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required) Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 1 USB 2.0 Type-A port (Rear) 1 USB 3.2 Gen1 Type-A port (Rear) Video: 1 VGA port (Rear) TPM: 1 TPM header ©2026 Copyright Super Micro Computer, Inc. All rights reserved. |
| System Cooling | Fans: Up to 4x 8cm heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 64MB SPI Flash ROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! |
| Dimensions and Weight | Weight: Gross Weight: 83.78 lbs (38 kg) Net Weight: 61.73 lbs (28 kg) Available Color: Silver |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-30°F to 140°F) Operating Relative Humidity: 8% to 80% (Non-Condensing) Non-operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Motherboard | Super X14DBHM |
| Chassis | CSE-DC201TS-R000NP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
