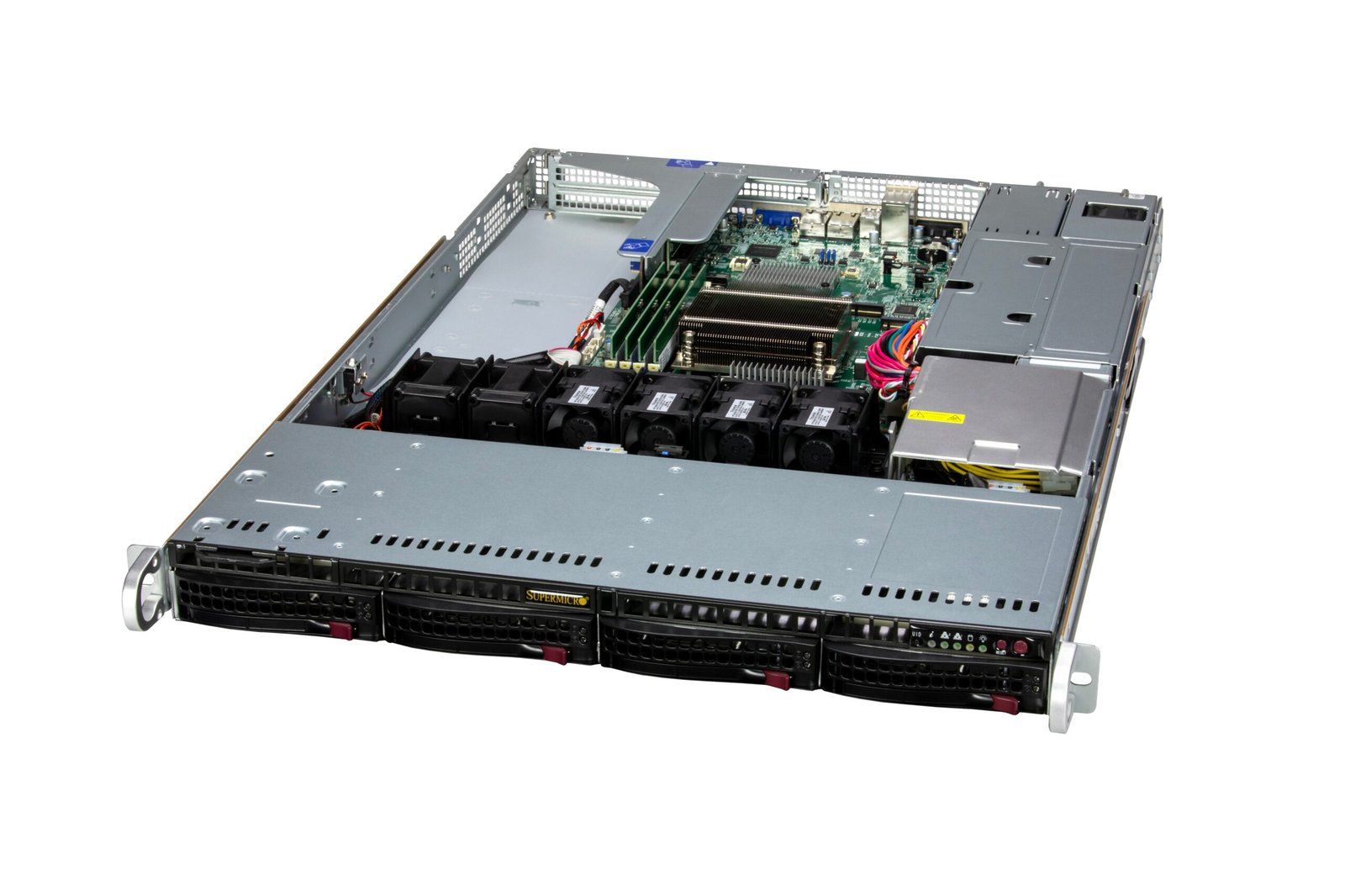

Supermicro SYS-511R-W 1U UP Server
1U WIO with 4 hot-swap 3.5″ SAS/SATA (2 NVMe hybrid) bays, up to 2 PCIe 5.0 slots and 1 PCIe 4.0 slot
Description
Product overview
1U WIO with 4 hot-swap 3.5" SAS/SATA (2 NVMe hybrid) bays, up to 2 PCIe 5.0 slots and 1 PCIe 4.0 slot
Key capabilities
- Form Factor: 1U Enclosure: 437 x 43 x 650mm (17.2" x 1.7" x 25.6") Package: 597 x 216 x 856mm (23.5" x 8.5" x 33.7")
- Processor: Single V0 (LGA-1700) Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors Up to 8C/16T; Up to 24MB Cache GPU Max GPU Count: Up to 1 double-width or 1 single-width GPU CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
- System Memory: Slot Count: 4 DIMM slots/2 Channels Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
- Drive Bays Configuration: Default: Total 4 bays 4 front hot-swap 3.5" SAS*/SATA drive bays Option A: Total 4 bays 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays 2 front hot-swap 3.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) Peripheral Bays: 2 2.5" bays (optional)
- Expansion Slots: Default 2 PCIe 5.0 x8 FHFL slots 1 PCIe 4.0 x4 (in x16) LP slot Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 4.0 x4 (in x16) LP slot
Technical specifications
| Form Factor | 1U Enclosure: 437 x 43 x 650mm (17.2" x 1.7" x 25.6") Package: 597 x 216 x 856mm (23.5" x 8.5" x 33.7") |
|---|---|
| Processor | Single V0 (LGA-1700) Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors Up to 8C/16T; Up to 24MB Cache GPU Max GPU Count: Up to 1 double-width or 1 single-width GPU CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory | Slot Count: 4 DIMM slots/2 Channels Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 3.5" SAS*/SATA drive bays Option A: Total 4 bays 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays 2 front hot-swap 3.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) Peripheral Bays: 2 2.5" bays (optional) |
| Expansion Slots | Default 2 PCIe 5.0 x8 FHFL slots 1 PCIe 4.0 x4 (in x16) LP slot Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 4.0 x4 (in x16) LP slot |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support Network Connectivity: 2 RJ45 1GbE with Intel® I210 |
| Input / Output | LAN: 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) USB: 4 USB 2.0 ports (header) 2 USB 2.0 Type-A ports (rear) 2 USB 3.2 Gen1 ports (Header) DATASHEET More details here 2 USB 3.2 Gen2 Type-A ports (Rear) 1 USB 3.2 Gen2 Type-A port (Header) Video: 1 VGA port Serial: 1 COM port (header) 1 COM port (rear) TPM: 1 TPM header ©2026 Copyright Super Micro Computer, Inc. All rights reserved. |
| System Cooling | Fans: Up to 2 AOC cooling Fan(s) (optional) Up to 4 counter-rotation PWM 40x40x56mm Fan(s) Air Shroud: 1 Air Shroud |
| Power Supply | ; Optional redundant power by adding 1x Power Supply Module; Form Factor 1U Enclosure: 437 x 43 x 650mm (17.2" x 1.7" x 25.6") Package: 597 x 216 x 856mm (23.5" x 8.5" x 33.7") Processor Single V0 (LGA-1700) Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors Up to 8C/16T; Up to 24MB Cache GPU Max GPU Count: Up to 1 double-width or 1 single-width GPU CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 4 DIMM slots/2 Channels Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM Drive Bays Configuration Default: Total 4 bays 4 front hot-swap 3.5" SAS*/SATA drive bays Option A: Total 4 bays 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays 2 front hot-swap 3.5" SAS*/SATA drive bays (*N… |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 6 + 1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 34.5 lbs (15.46 kg) Net Weight: 21.5 lbs (9.75 kg) Available Color: Black |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Motherboard | Super X13SCW-F |
| Chassis | CSE-815BTS-R000WNP |
