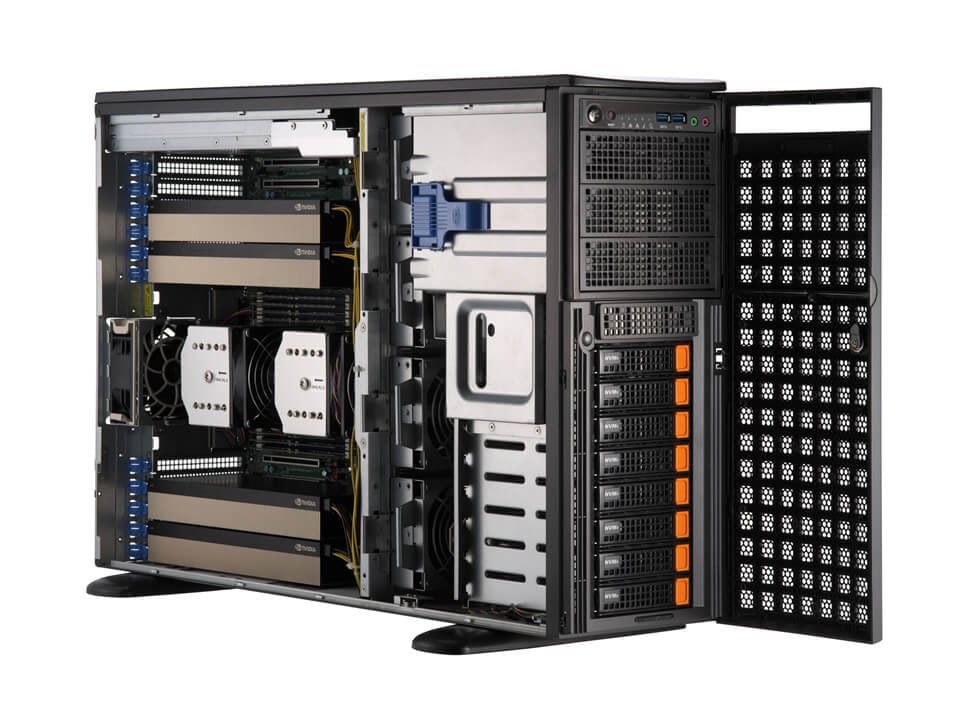

Supermicro SYS-741GE-TNRT Tower GPU Server
DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs
Description
Product overview
DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs
Key capabilities
- Form Factor: Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 682 x 320 x 964mm (26.85" x 12.59" x 37.95")
- Processor: Dual Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 4 double-width GPUs Supported GPU: NVIDIA PCIe: H100, H100 NVL, A100, A30, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 6000 Ada Generation, RTX A4000, RTX A5500, RTX A6000 AMD PCIe: Instinct™ MI210 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional)
- System Memory: Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
- Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays Option A: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe slots (M-key)
- Expansion Slots: PCI-Express (PCIe) Configuration: Default 7 PCIe 5.0 x16 FHFL slots M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Technical specifications
| Form Factor | Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 682 x 320 x 964mm (26.85" x 12.59" x 37.95") |
|---|---|
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 4 double-width GPUs Supported GPU: NVIDIA PCIe: H100, H100 NVL, A100, A30, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 6000 Ada Generation, RTX A4000, RTX A5500, RTX A6000 AMD PCIe: Instinct™ MI210 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional) |
| System Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays Option A: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | PCI-Express (PCIe) Configuration: Default 7 PCIe 5.0 x16 FHFL slots M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key) |
| On-Board Devices | SATA: SATA (6Gbps) Chipset: Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2 |
| Input / Output | Video: 1 VGA port (Rear) Serial: 1 COM port (rear) Audio: Front Audio TPM: 1 TPM Onboard/port 80 |
| System Cooling | Fans: Up to 4 heavy duty fans with optimal fan speed control |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg) Available Color: Black |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Motherboard | Super X13DEG-QT |
| Chassis | CSE-749TS-R2K05BP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
