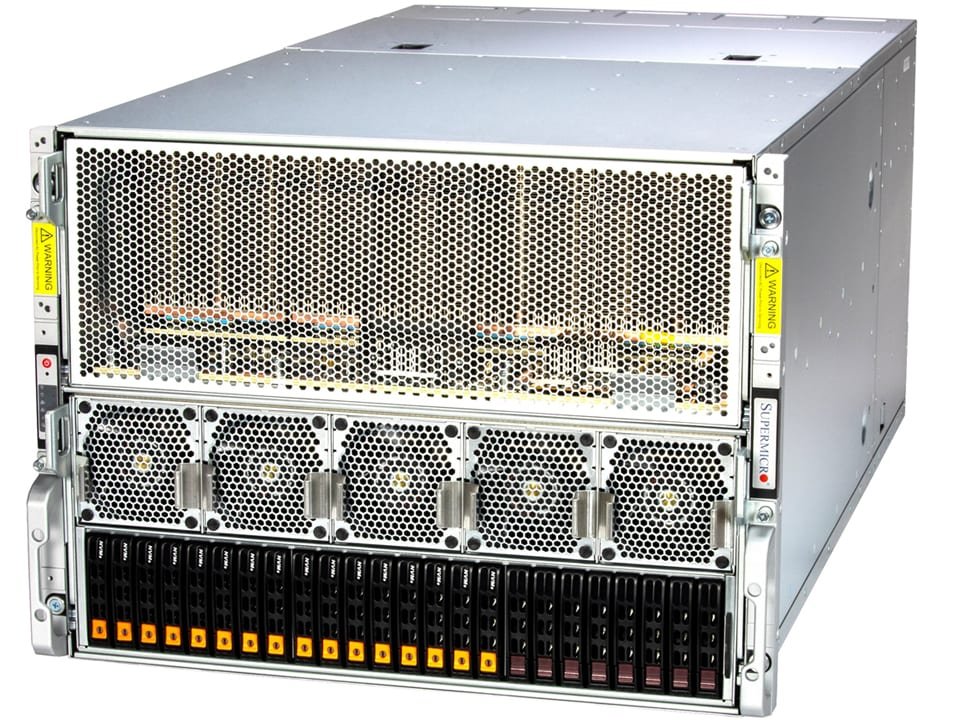

Supermicro SYS-821GE-TNMR2 8U GPU Server
DP Intel 8U System with AMD MI300X 8-GPU and Rear I/O
Description
Product overview
DP Intel 8U System with AMD MI300X 8-GPU and Rear I/O
Key capabilities
- Form Factor: 8U Rackmount Enclosure: 447 x 356 x 843mm (17.7" x 13.8" x 33.2") Package: 750 x 700 x 1300mm (29.5" x 27.6" x 51")
- Processor: Dual Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: 8 onboard GPUs Supported GPU: AMD: Instinct™ MI300X Accelerators CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: AMD Infinity Fabric™ Link
- System Memory: Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
- Drive Bays Configuration: Default: Total 20 bays 12 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 4 bays 4 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key)
- Expansion Slots: Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
Technical specifications
| Form Factor | 8U Rackmount Enclosure: 447 x 356 x 843mm (17.7" x 13.8" x 33.2") Package: 750 x 700 x 1300mm (29.5" x 27.6" x 51") |
|---|---|
| Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon®4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: 8 onboard GPUs Supported GPU: AMD: Instinct™ MI300X Accelerators CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: AMD Infinity Fabric™ Link |
| System Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Drive Bays Configuration | Default: Total 20 bays 12 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 4 bays 4 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key) |
| Expansion Slots | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| On-Board Devices | 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) |
| Input / Output | USB: 1 USB 3.0 Type-A port (Rear) Video: 1 VGA port |
| System Cooling | Fans: Up to 10 heavy duty fans with optimal fan speed control |
| Power Supply | 6x 3000W Redundant Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 178.6 lbs (81 kg) Net Weight: 116.22 lbs (53 kg) Available Color: Silver |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X13DEG-MA |
| Chassis | CSE-GP801TS-R000NPF-D2 |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
