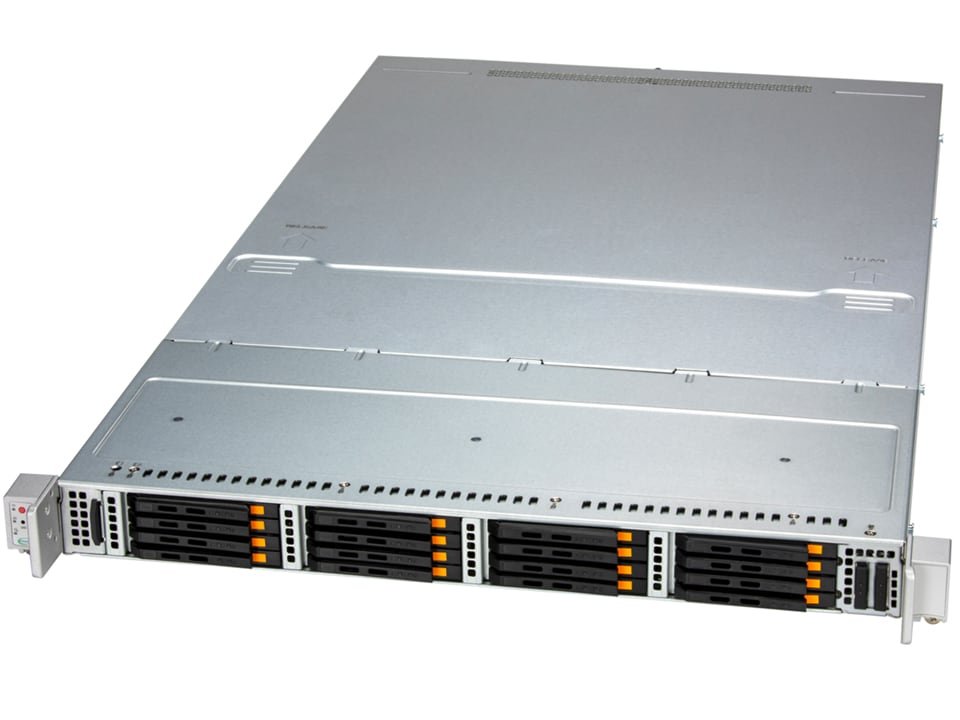

Supermicro SSG-122B-NE316R 1U Storage Server
1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0
Description
Product overview
1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0
Key capabilities
- Form Factor: 1U Rackmount Enclosure: 438.4 x 43.6 x 784.85mm (17.2" x 1.7" x 30.9") Package: 680 x 242 x 1108mm (26.77" x 9.52" x 43.62")
- Processor: Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 128C/256T; Up to 108MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
- System Memory: Slot Count: 32 DIMM slots/2 Channels Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM/LRDIMM
- Drive Bays Configuration: Default: Total 16 bays 16 front hot-swap E3.S 1T NVMe drive bays M.2: 2 M.2 NVMe slots (M-key 2280/22110)
- Expansion Slots: Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Technical specifications
| Form Factor | 1U Rackmount Enclosure: 438.4 x 43.6 x 784.85mm (17.2" x 1.7" x 30.9") Package: 680 x 242 x 1108mm (26.77" x 9.52" x 43.62") |
|---|---|
| Processor | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 128C/256T; Up to 108MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| System Memory | Slot Count: 32 DIMM slots/2 Channels Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 16 bays 16 front hot-swap E3.S 1T NVMe drive bays M.2: 2 M.2 NVMe slots (M-key 2280/22110) |
| Expansion Slots | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| On-Board Devices | NVMe: NVMe; RAID 0/1/5/10 support(VROC HW key required) Network Connectivity: Via AIOM |
| Input / Output | LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports (rear) Video: 1 VGA port |
| System Cooling | Fans: Up to 8x 4cm heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| System BIOS | BIOS Type: AMI 64MB SPI Flash |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 7 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 66.8 lbs (30.3 kg) Net Weight: 43.6 lbs (19.8 kg) Available Color: Silver |
| Operating Environment | RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-condensing) Non-operating Relative Humidity: 8% to 95% (Non-condensing) |
| Motherboard | Super X14DBHM |
| Chassis | CSE-146E32-R2K09P |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
