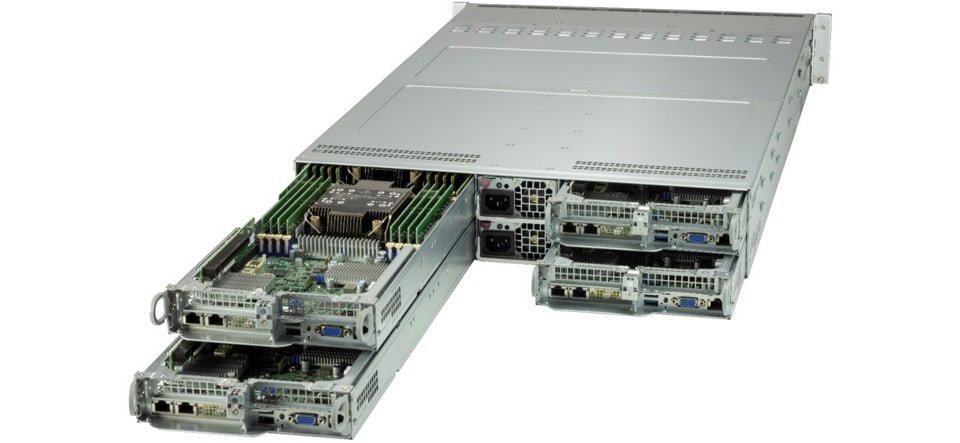

Supermicro SYS-220TP-HC8TR 2U Twin Server

Description

Product overview

2U 4-node TwinPro with 6 2.5" SAS/SATA drives per node and dual 10GbE

Key capabilities

Form Factor: 2U Rackmount Enclosure: 438 x 88 x 730mm (17.25" x 3.47" x 28.75") Package: 622 x 254 x 1143mm (24.5" x 10" x 45")
Processor: s; Intel® C621A Chipset; 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM; 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm); Intel® X710 Dual port 10GBase-T LAN onboard; 6x 2.5" hot-swap SATA/SAS drive bays; 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System); Two 2200W redundant power supplies with PMBus; Broadcom® 3808 SAS (12Gbps); 6 slots per node; HBA only, no RAID support. ASPEED AST2600 BMC, 2 USB, VGA. RoT; Form Factor 2U Rackmount Enclosure: 438 x 88 x 730mm (17.25" x 3.47" x 28.75") Package: 622 x 254 x 1143mm (24.5" x 10" x 45") Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 32C/64T; Up to 48MB Cache per CPU
System Memory: Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
Drive Bays Configuration: Default: Total 6 bays 6 front hot-swap 2.5" SAS/SATA drive bays
Expansion Slots: Default 1 PCIe 4.0 x16 (in x16) LP slot

Technical specifications

Form Factor	2U Rackmount Enclosure: 438 x 88 x 730mm (17.25" x 3.47" x 28.75") Package: 622 x 254 x 1143mm (24.5" x 10" x 45")
Processor	s; Intel® C621A Chipset; 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM; 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm); Intel® X710 Dual port 10GBase-T LAN onboard; 6x 2.5" hot-swap SATA/SAS drive bays; 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System); Two 2200W redundant power supplies with PMBus; Broadcom® 3808 SAS (12Gbps); 6 slots per node; HBA only, no RAID support. ASPEED AST2600 BMC, 2 USB, VGA. RoT; Form Factor 2U Rackmount Enclosure: 438 x 88 x 730mm (17.25" x 3.47" x 28.75") Package: 622 x 254 x 1143mm (24.5" x 10" x 45") Processor Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 32C/64T; Up to 48MB Cache per CPU
System Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
Drive Bays Configuration	Default: Total 6 bays 6 front hot-swap 2.5" SAS/SATA drive bays
Expansion Slots	Default 1 PCIe 4.0 x16 (in x16) LP slot
On-Board Devices	Network Connectivity: 2 RJ45 10GBASE-T with Intel® X710-AT2 BMC: ASPEED AST2600 BMC
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports (rear) Video: 1 VGA port
System Cooling	Fans: Up to 4x 8cm heavy duty fans with optimal fan speed control Air Shroud: 4 Air Shrouds
Power Supply	1x 2200W Redundant Titanium Level (96%) power supply
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Management	SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 5 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Dimensions and Weight	Weight: Gross Weight: 90 lbs (40.9 kg) Net Weight: 72 lbs (32.7 kg) Available Color: Black front & silver body
Operating Environment	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Motherboard	Super X12DPT-PT6
Chassis	CSV-217HQ+-R2K20BP4

Configuration note

Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
