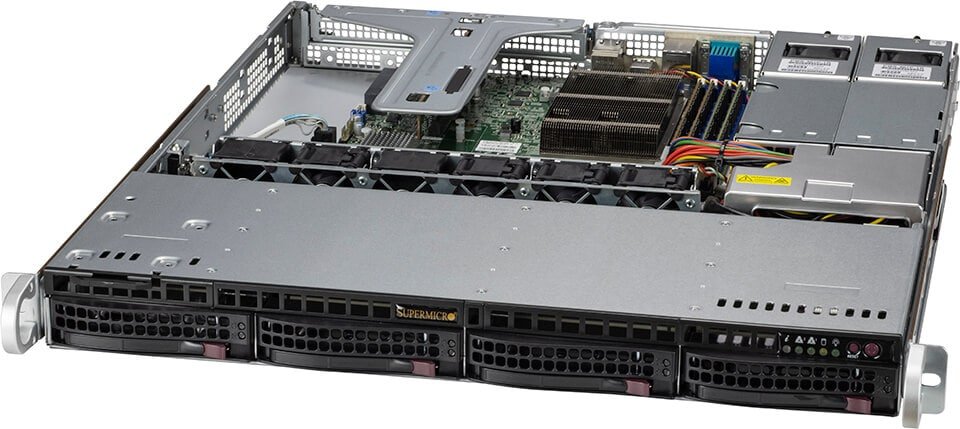

Supermicro SYS-510T-MR 1U UP Server
1U UP mainstream with 4 hot-swap 3.5″ drive bays and redundant power supplies
Description
Product overview
1U UP mainstream with 4 hot-swap 3.5" drive bays and redundant power supplies
Key capabilities
- Form Factor: 1U Rackmount Enclosure: 437 x 43 x 507mm (17.2" x 1.7" x 19.98") Package: 609.6 x 215.9 x 749.3mm (24" x 8.5" x 29.5")
- Processor: Single Socket H5 (LGA-1200) Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors Up to 8C/16T; Up to 16MB Cache GPU Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: T1000, T400 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect
- System Memory: Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
- Drive Bays Configuration: Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays M.2: 1 M.2 NVMe slot (M-key 2280/22110) Peripheral Bays: 2 2.5" bays
- Expansion Slots: Default 1 PCIe 4.0 x8 FHHL slot 1 PCIe 4.0 x8 LP slot Option A 1 PCIe 4.0 x16 FHHL slot
Technical specifications
| Form Factor | 1U Rackmount Enclosure: 437 x 43 x 507mm (17.2" x 1.7" x 19.98") Package: 609.6 x 215.9 x 749.3mm (24" x 8.5" x 29.5") |
|---|---|
| Processor | Single Socket H5 (LGA-1200) Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors Up to 8C/16T; Up to 16MB Cache GPU Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: T1000, T400 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect |
| System Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays M.2: 1 M.2 NVMe slot (M-key 2280/22110) Peripheral Bays: 2 2.5" bays |
| Expansion Slots | Default 1 PCIe 4.0 x8 FHHL slot 1 PCIe 4.0 x8 LP slot Option A 1 PCIe 4.0 x16 FHHL slot |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support Network Connectivity: 2 RJ45 1GbE with Intel® I210 BMC: ASPEED AST2600 BMC |
| Input / Output | LAN: 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) USB: 4 USB 2.0 ports (header) 2 USB 3.2 Gen1 Type-A ports (rear) 2 USB 2.0 Type-A ports (rear) 2 USB 3.2 Gen1 ports (Header) 1 USB 3.2 Gen1 Type-A port (Header) Video: 1 VGA port DATASHEET More details here Serial: 1 COM port (Rear) 1 COM port (Header) DOM: 2 SuperDOM (Disk on Module) portswith built-in power TPM: 1 TPM header ©2026 Copyright Super Micro Computer, Inc. All rights reserved. |
| System Cooling | Fans: Up to 4 middle cooling PWM 40x40x28mm Fan(s) Up to 2 AOC cooling Fan(s) (optional) Air Shroud: 1 Air Shroud |
| Power Supply | ; Form Factor 1U Rackmount Enclosure: 437 x 43 x 507mm (17.2" x 1.7" x 19.98") Package: 609.6 x 215.9 x 749.3mm (24" x 8.5" x 29.5") Processor Single Socket H5 (LGA-1200) Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors Up to 8C/16T; Up to 16MB Cache GPU Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: T1000, T400 CPU-GPU Interconnect: PCIe 4.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM Drive Bays Configuration Default: Total 4 bays 4 front hot-swap 3.5" SATA drive bays M.2: 1 M.2 NVMe slot (M-key 2280/22110) Peripheral Bays: 2 2.5" bays Expansion Slots Default 1 PCIe 4.0 x8 FHHL slot 1 PCIe 4.0 x8 LP slot Option A 1 P… |
| System BIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: 6 + 2 + 1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg) Available Color: Black |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X12STH-SYS |
| Chassis | CSE-813MF2TS-R407RCBP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
