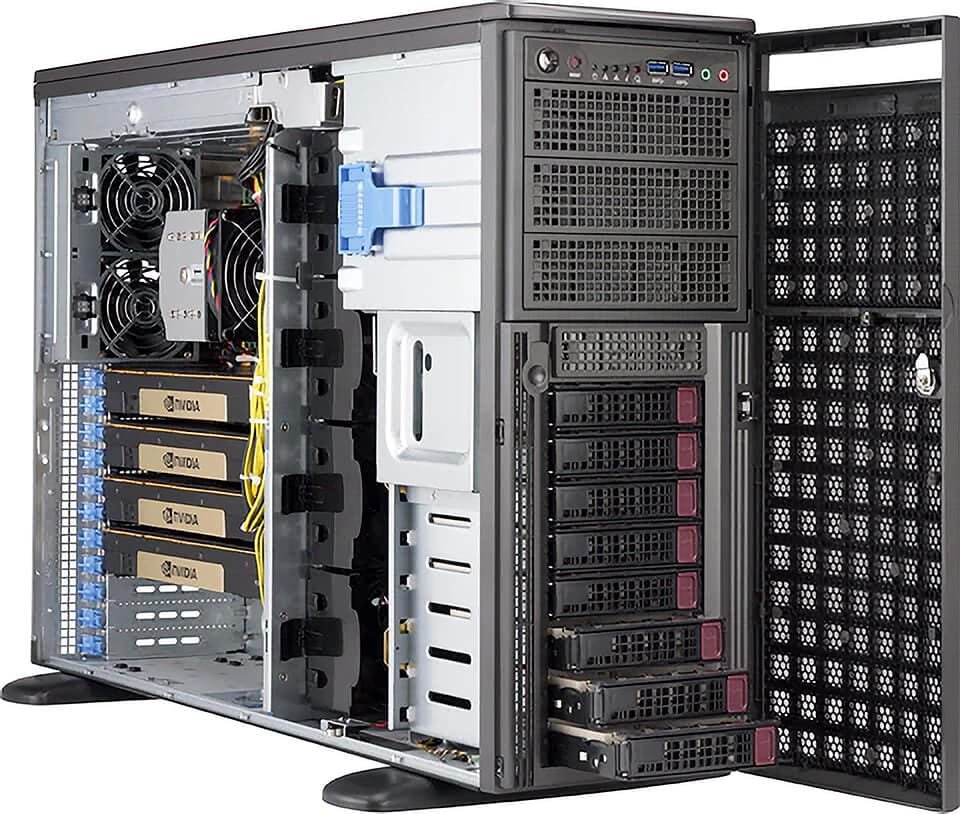

Supermicro SYS-540A-TR Full-Tower UP Workstation Server
UP full-tower workstation for AI/DL/ML development
Description
Product overview
UP full-tower workstation for AI/DL/ML development
Key capabilities
- Form Factor: Full-Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 689 x 329 x 971mm (27.12" x 12.95" x 38.22")
- Processor: s with TDP up to 270W; 7 PCIe 4.0 Slots; 1x 10GBase-T, 1x 1GbE, and 1x dedicated IPMI LAN ports; Form Factor Full-Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 689 x 329 x 971mm (27.12" x 12.95" x 38.22") Processor Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache GPU Max GPU Count: Up to 4 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: RTX A4000, RTX A5000, RTX A6000
- System Memory: Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 3.5" SATA drive bays M.2: 4 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) Peripheral Bays: 3 5.25" bays
- Expansion Slots: Default 7 PCIe 4.0 x16 FHFL slots
Technical specifications
| Form Factor | Full-Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 689 x 329 x 971mm (27.12" x 12.95" x 38.22") |
|---|---|
| Processor | s with TDP up to 270W; 7 PCIe 4.0 Slots; 1x 10GBase-T, 1x 1GbE, and 1x dedicated IPMI LAN ports; Form Factor Full-Tower Rackmount Enclosure: 177 x 465.4 x 678.5mm (6.96" x 18.32" x 26.71") Package: 689 x 329 x 971mm (27.12" x 12.95" x 38.22") Processor Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache GPU Max GPU Count: Up to 4 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: RTX A4000, RTX A5000, RTX A6000 |
| System Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 3.5" SATA drive bays M.2: 4 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) Peripheral Bays: 3 5.25" bays |
| Expansion Slots | Default 7 PCIe 4.0 x16 FHFL slots |
| On-Board Devices | SATA: SATA (6Gbps) Network Connectivity: 1 RJ45 1GbE with Intel® I210-AT 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 1 RJ45 10GbE with Marvell® AQC113 |
| Input / Output | USB: 2 USB 2.0 ports (header) 2 USB 2.0 ports (rear) 2 ports (header) 4 ports (rear) Video: 1 VGA port TPM: 1 TPM header |
| System Cooling | Fans: Up to 4x 92mm Fan(s) Up to 2x 80mm Fan(s) |
| Power Supply | 1x 2200W Redundant Titanium Level (96%) power supply |
| System BIOS | BIOS Type: AMI 256MB SPI Flash |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT |
| Dimensions and Weight | Weight: Gross Weight: 57 lbs (25.85 kg) Net Weight: 52.9 lbs (24 kg) Available Color: black |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X12SPA-TF |
| Chassis | CSE-747BTS-R2K20BP |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
