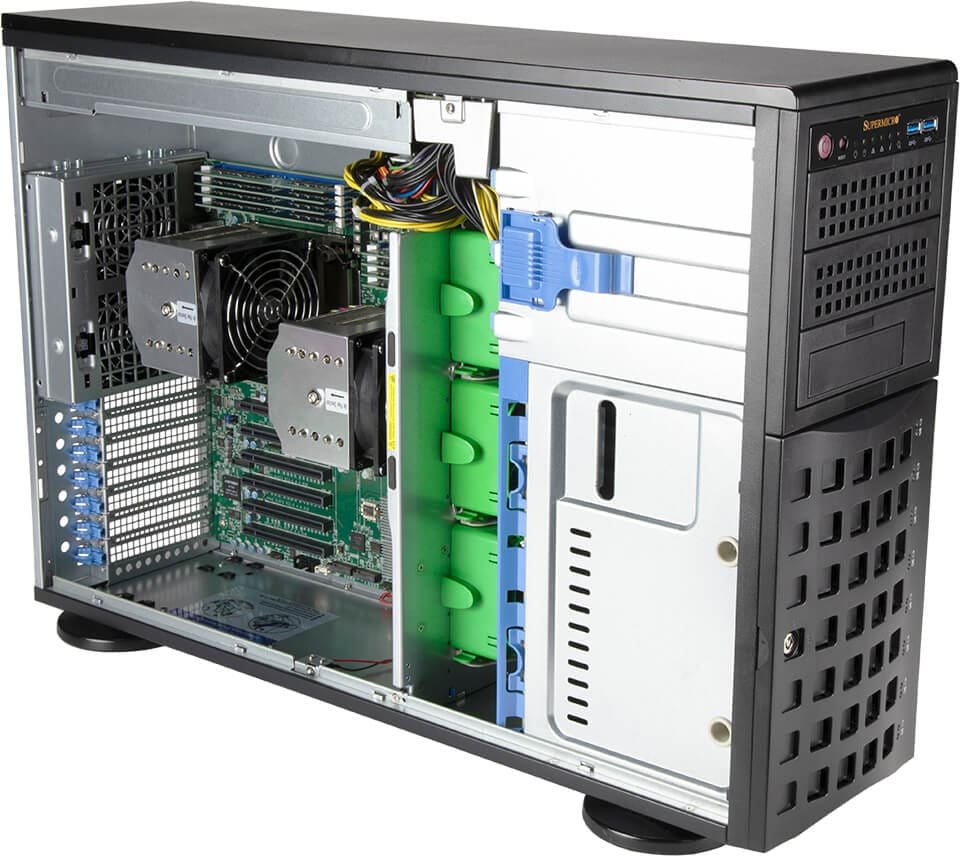

Supermicro SYS-740A-T 4U Tower SuperWorkstation Server
DP 4U rackmount tower workstation for rendering, CAD and content creation
Description
Product overview
DP 4U rackmount tower workstation for rendering, CAD and content creation
Key capabilities
- Form Factor: 4U Tower Rackmount Enclosure: 178 x 452 x 647mm (7" x 17.8" x 25.5") Package: 356 x 625 x 795mm (14" x 24.6" x 31.3")
- Processor: Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 2 single-width GPUs Supported GPU: NVIDIA PCIe: RTX 5000, RTX A4000, RTX A5000, RTX A6000 CPU-GPU Interconnect: PCIe 4.0 x16 Switch Single-Root
- System Memory: Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
- Drive Bays Configuration: Default: Total 8 bays 4 front hot-swap 3.5" SAS*/SATA drive bays 4 front hot-swap 3.5" NVMe*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) Peripheral Bays: 3 5.25" peripheral bays (optional)
- Expansion Slots: Default 5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot
Technical specifications
| Form Factor | 4U Tower Rackmount Enclosure: 178 x 452 x 647mm (7" x 17.8" x 25.5") Package: 356 x 625 x 795mm (14" x 24.6" x 31.3") |
|---|---|
| Processor | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 2 single-width GPUs Supported GPU: NVIDIA PCIe: RTX 5000, RTX A4000, RTX A5000, RTX A6000 CPU-GPU Interconnect: PCIe 4.0 x16 Switch Single-Root |
| System Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series |
| Drive Bays Configuration | Default: Total 8 bays 4 front hot-swap 3.5" SAS*/SATA drive bays 4 front hot-swap 3.5" NVMe*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) Peripheral Bays: 3 5.25" peripheral bays (optional) |
| Expansion Slots | Default 5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support Network Connectivity: 2 RJ45 1GbE |
| Input / Output | LAN: 2 RJ45 1 GbE LAN ports (IPMI shared on LAN port 1) USB: 4 USB 3.2 Gen1 ports (rear) 2 USB 3.2 Gen1 ports (front) Video: 1 VGA port DOM: 2 SATA DOM (Disk on Module) ports Audio: 7.1 HD Audio |
| System Cooling | Fans: Up to 5x 8cm heavy duty fans with optimal fan speed control |
| Power Supply | 1x 1200W Redundant Titanium Level (96%) power supply |
| System BIOS | BIOS Type: AMI 32MB SPI FLASH ROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory. Fan: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 62 lbs (28.12 kg) Net Weight: 59 lbs (26.76 kg) Available Color: black |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X12DAI-N6 |
| Chassis | CSE-745BTS-R1K23BP3 |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
