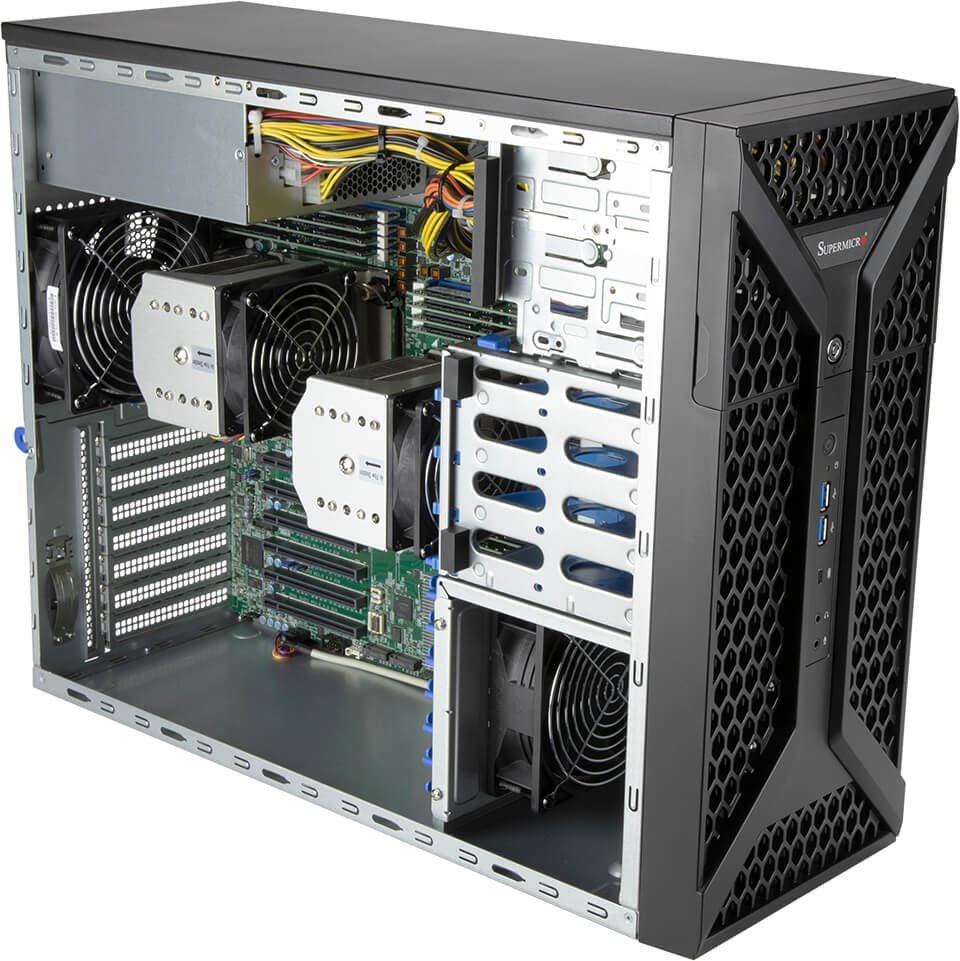

Supermicro SYS-730A-I Mid-Tower SuperWorkstation Server
DP mid-tower workstation for rendering, CAD and content creation
Description
Product overview
DP mid-tower workstation for rendering, CAD and content creation
Key capabilities
- Form Factor: Mid-Tower Enclosure: 193 x 424 x 525.3mm (7.6" x 16.7" x 20.68") Package: 304 x 543 x 642mm (11.97" x 21.38" x 25.28")
- Processor: Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 2 single-width GPUs Supported GPU: NVIDIA PCIe: RTX 5000, RTX A4000, RTX A5000, RTX A6000 CPU-GPU Interconnect: PCIe 4.0 x16 Switch Single-Root
- System Memory: Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series
- Drive Bays Configuration: Default: Total 4 bays 4 internal fixed 3.5" NVMe*/SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) Peripheral Bays: 2 5.25" peripheral bays (optional)
- Expansion Slots: Default 5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot
Technical specifications
| Form Factor | Mid-Tower Enclosure: 193 x 424 x 525.3mm (7.6" x 16.7" x 20.68") Package: 304 x 543 x 642mm (11.97" x 21.38" x 25.28") |
|---|---|
| Processor | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU GPU Max GPU Count: Up to 2 double-width or 2 single-width GPUs Supported GPU: NVIDIA PCIe: RTX 5000, RTX A4000, RTX A5000, RTX A6000 CPU-GPU Interconnect: PCIe 4.0 x16 Switch Single-Root |
| System Memory | Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series |
| Drive Bays Configuration | Default: Total 4 bays 4 internal fixed 3.5" NVMe*/SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) Peripheral Bays: 2 5.25" peripheral bays (optional) |
| Expansion Slots | Default 5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support Network Connectivity: 2 RJ45 1GbE |
| Input / Output | LAN: 2 RJ45 1 GbE LAN ports (IPMI shared on LAN port 1) USB: 4 USB 3.2 Gen1 ports (rear) 2 USB 3.2 Gen1 ports (front) 1 USB 3.2 Gen2 port (front) Video: 1 VGA port DOM: 2 SATA DOM (Disk on Module) ports Audio: 7.1 HD Audio Rear Audio Mic in |
| System Cooling | Fans: Up to 2x 12cm Fan(s) |
| Power Supply | 1x 1200W Platinum Level (94%) power supply |
| System BIOS | BIOS Type: AMI 32MB SPI FLASH ROM |
| Management | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory. Fan: Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Dimensions and Weight | Weight: Gross Weight: 30 lbs (13.61 kg) Net Weight: 27 lbs (12.25 kg) Available Color: black |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Motherboard | Super X12DAI-N6 |
| Chassis | CSE-735D4-1K26B |
Configuration note
Processor, memory, storage, networking, accelerator, power, cooling and regional order codes may vary by configuration. GPULoom confirms the exact bill of materials and compatibility for each inquiry.
